FJ62LV-KCZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

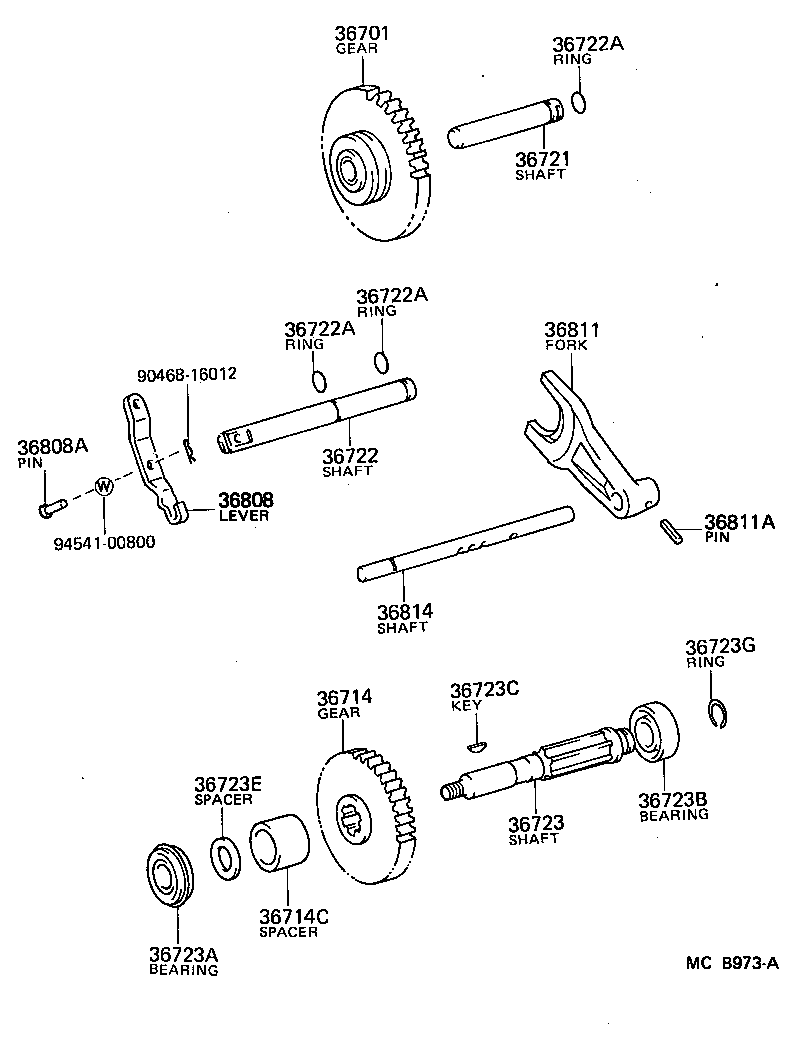

Click highlighted areas on diagram

diagram 36701 36714 36714C 36721 36722 36722A 36722A 36722A 36723 36723A 36723B 36723C 36723E 36723G 36808 36808A 36811 36811A 36814 9046816012 9454100800
Part # Description Qty Price
36701 - GEAR SUB-ASSY, POWER TAKE-OFF INPUT
36701-60030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-60020

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36714C - SPACER (FOR POWER TAKE-OFF OUTPUT GEAR)
90560-33001

BJ60,FJ62,HJ60..MTM..(GEN,ME)

T=32.5

 1
36721 - SHAFT, POWER TAKE-OFF INPUT GEAR
36721-60020

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36722 - SHAFT, POWER TAKE-OFF IDLER GEAR
36722-60020

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT)
90301-14030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT)
90301-14030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36722A - RING, O (FOR POWER TAKE-OFF REVERSE IDLER SHAFT)
90301-14030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-60050

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
97153-06205

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
97100-06205

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-05001

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723E - SPACER (FOR POWER TAKE-OFF OUTPUT SHAFT BEARING)
90560-25004

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36723G - RING, SHAFT SNAP (FOR OUTPUT SHAFT REAR BEARING)
90520-23223

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36808 - LEVER SUB-ASSY, POWER TAKE-OFF SHIFT LINK
36824-60030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36808A - PIN, W/HOLE (FOR POWER TAKE-OFF SHIFT LINK LEVER)
90240-08128

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-60030

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36811A - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT FORK)
90254-05001

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-60031

BJ60,FJ62,HJ60..MTM..(GEN,ME)

 1
Common parts
90468-16012
94541-00800
