FJ62LV-KC (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )FJ62,HJ6#..SRF

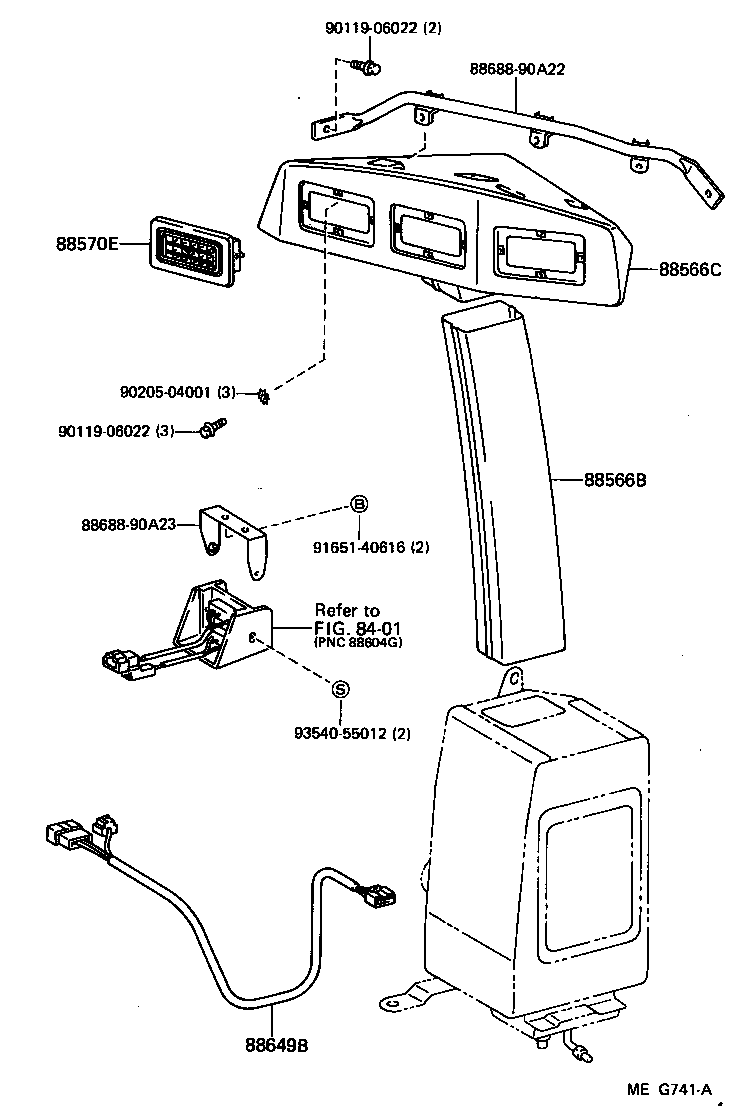

Click highlighted areas on diagram

diagram 8401 88566B 88566C 88570E 88649B 8868890A22 8868890A23 9011906022 9011906022 9020504001 9165140616 9354055012
Part # Description Qty Price
88566B - DUCT, COOLER AIR, NO.2
88566-90A02

FJ62,HJ6#..SRF..(ARL,GEN)

 1
88566C - DUCT, COOLER AIR, NO.3
88505-90A01

FJ62,HJ6#..SRF..(ARL,GEN)

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-90A00

FJ62,HJ6#..ARL,GEN

 8
88649B - WIRING, COOLER
88605-90A21

FJ62,HJ6#..SRF..(ARL,GEN)

 1
Common parts
88688-90A22
88688-90A23
90119-06022
90205-04001
91651-40616
93540-55012
Linked diagrams
8401
