FJ62LG-PZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

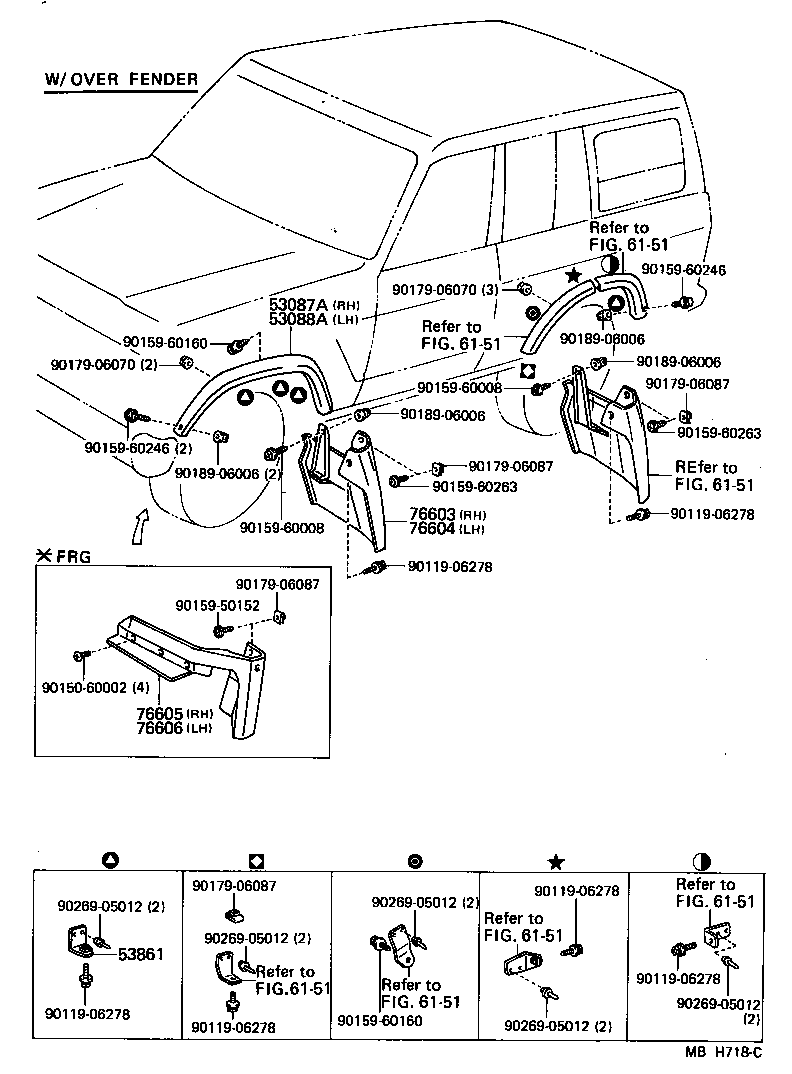

Click highlighted areas on diagram

diagram 53087A 53088A 53861 6151 6151 6151 6151 6151 6151 6151 76603 76604 76605 76606 9011906278 9011906278 9011906278 9011906278 9011906278 9011906278 9015060002 9015950152 9015960008 9015960008 9015960160 9015960160 9015960246 9015960246 9015960263 9015960263 9017906070 9017906070 9017906087 9017906087 9017906087 9017906087 9018906006 9018906006 9018906006 9018906006 9026905012 9026905012 9026905012 9026905012 9026905012
Part # Description Qty Price
53087A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, RH
53087-90A00

FJ62,HJ6#..WGG

 1
53088A - EXTENSION SUB-ASSY, FRONT WHEEL OPENING, LH
53088-90A00

FJ62,HJ6#..WGG

 1
53861 - BRACKET, FRONT WHEEL OPENING, NO.1
53861-90A00

FJ62,HJ6#..WGG

 8
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-90A01

FJ62,HJ6#..WGG

W/*OF

 1
76603-69015

BJ60,FJ6#,HJ6#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-90A01

FJ62,HJ6#..WGG

W/*OF

 1
76604-69015

BJ60,FJ6#,HJ6#

 1
Common parts
90119-06278
90150-60002
90159-50152
90159-60008
90159-60160
90159-60246
90159-60263
90179-06070
90179-06087
90189-06006
90269-05012
Linked diagrams
6151
