FJ62LG-PZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

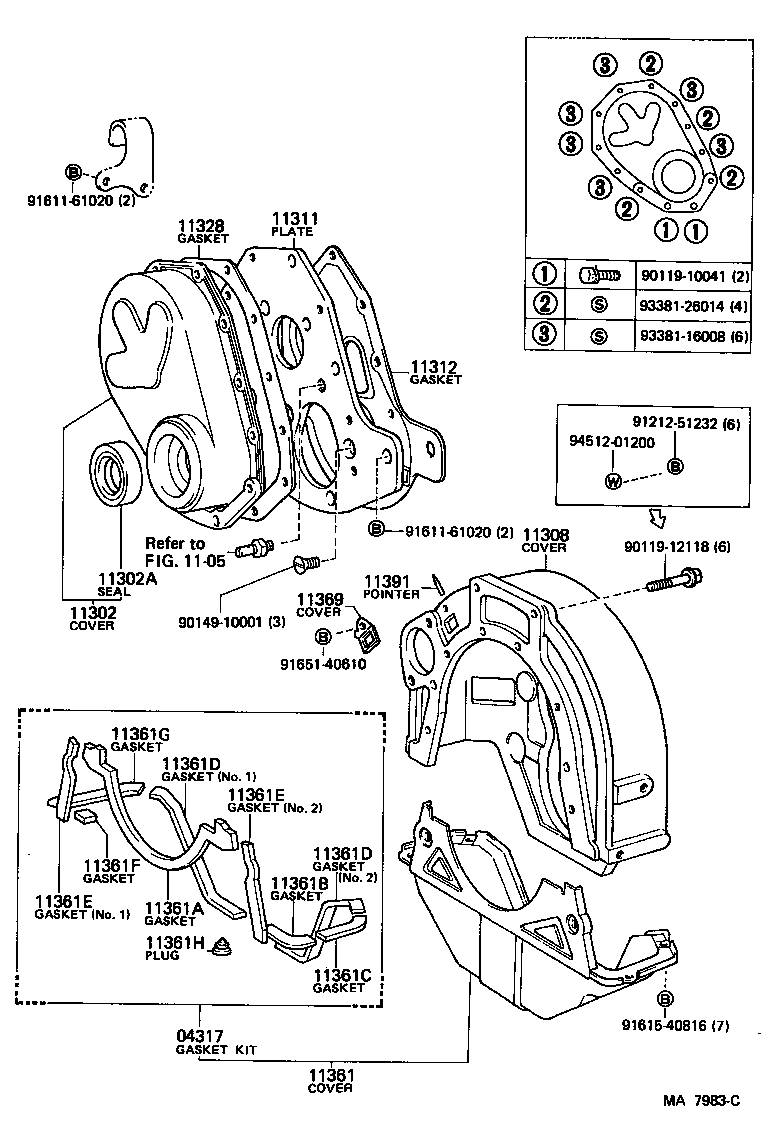

Click highlighted areas on diagram

diagram 04317 1105 11302 11302A 11308 11311 11312 11328 11361 11361A 11361B 11361C 11361D 11361D 11361E 11361E 11361F 11361G 11361H 11369 11391 9011910041 9011912118 9014910001 9121251232 9161161020 9161161020 9161540816 9165140610 9338116008 9338126014 9451201200
Part # Description Qty Price
04317 - GASKET KIT, CLUTCH UNDER COVER
04317-60030

FJ62

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61031

3F..FJ62

 1
11308 - COVER SUB-ASSY, FLYWHEEL HOUSING
31111-60100

3F..FJ62

 1
11312 - GASKET, FRONT END PLATE
11312-61020

3F..FJ62

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
31104-60030

3F..FJ62

 1
11361A - GASKET, CLUTCH UNDER COVER, NO.1
31131-60010

2F,3F..FJ6#

 1
11361B - GASKET, CLUTCH UNDER COVER, NO.2
31132-60020

2F,3F..FJ6#

 1
11361C - GASKET, CLUTCH UNDER COVER, NO.3
31133-60020

2F,3F..FJ6#

 1
11361D - GASKET, CLUTCH UNDER COVER, NO.4
31134-60020

3F..FJ62

NO.1

 1
31134-60030

3F..FJ62

NO.2

 1
11361D - GASKET, CLUTCH UNDER COVER, NO.4
31134-60020

3F..FJ62

NO.1

 1
31134-60030

3F..FJ62

NO.2

 1
11361E - GASKET, CLUTCH UNDER COVER, NO.5
31135-60021

3F..FJ62

NO.1

 1
31135-60031

3F..FJ62

NO.2

 1
11361E - GASKET, CLUTCH UNDER COVER, NO.5
31135-60021

3F..FJ62

NO.1

 1
31135-60031

3F..FJ62

NO.2

 1
11361F - GASKET, CLUTCH UNDER COVER, NO.6
31136-60010

2F,3F..FJ6#

 1
11361G - GASKET, CLUTCH UNDER COVER, NO.7
31137-60010

2F,3F..FJ6#

 1
11361H - PLUG, HOLE(FOR CLUTCH UNDER COVER)
90950-01200

2F,3F..FJ6#

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

2F,3F..FJ6#

 1
11391 - POINTER, TIMING
11391-60010

2F,3F..FJ6#

 1
Common parts
90119-10041
90119-12118
90149-10001
91212-51232
91611-61020
91615-40816
91651-40610
93381-16008
93381-26014
94512-01200
Linked diagrams
1105
