Toyota Land cruiser FJ62 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ62LG-PV (1984)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

FJ62LG-PV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987

Engine 3F

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

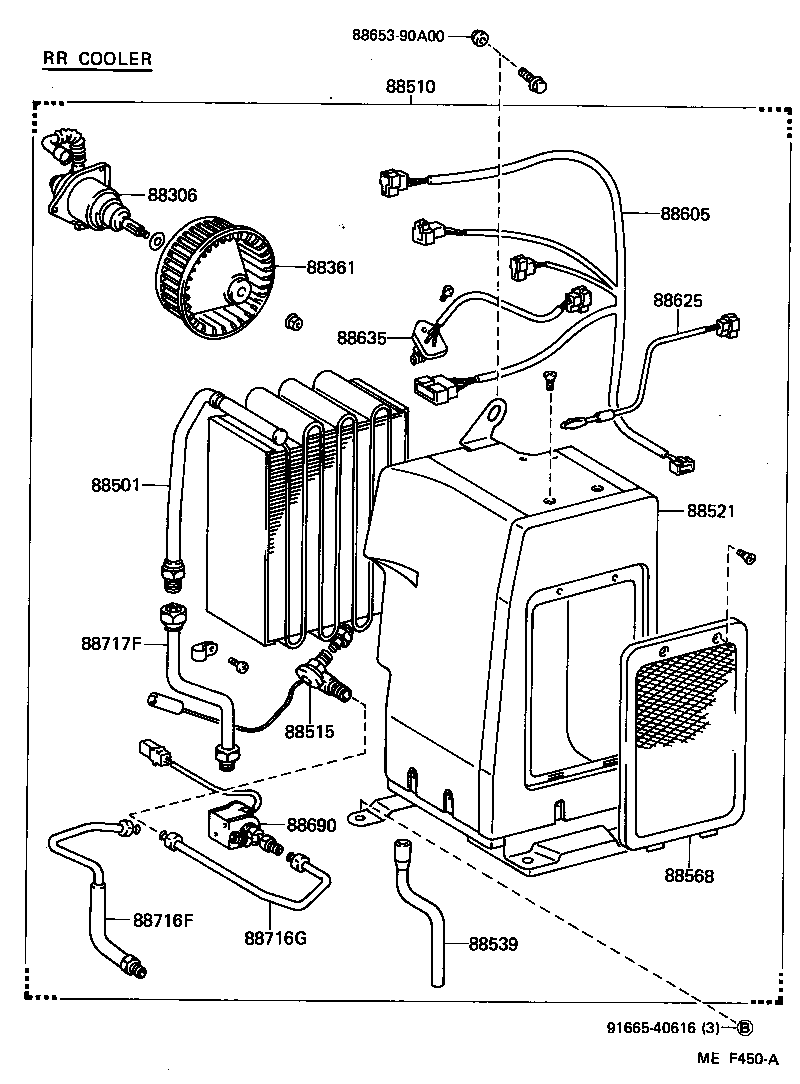

(8411- )FJ62,HJ6#

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-90A03	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 04/1986	1
88501-90A07	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	04/1986 - 08/1987	1
88510 - UNIT ASSY, COOLER
88510-90A05	BJ60,FJ62,HJ60..LHD..(GEN,ME) W/BOOST VENTILATOR,FR	11/1984 - 10/1985	1
88510-90A04	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 08/1987	1
88510-90A05	FJ62..LHD W/BOOST VENTILATOR,FR	10/1985 - 08/1987	1
88515 - VALVE, COOLER EXPANSION
88515-20040	BJ60,FJ62,HJ60..GEN,ME FR	11/1984 - 10/1985	1
88515-87004	BJ60,FJ62,HJ60..GEN,ME FR	10/1985 - 08/1987	1
88521 - CASE, COOLER UNIT
88521-90A02	FJ62,HJ60..LHD..(GEN,ME) FR,UPPER	11/1984 - 08/1987	1
88521-90A03	FJ62,HJ60..LHD..(GEN,ME) FR,LOWER	11/1984 - 08/1987	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME FR	08/1980 - 08/1987	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-90A09	BJ60,FJ62,HJ6#..ARL,GEN,ME FR	11/1984 - 08/1987	1
88605-90A10	HJ60..SOB..GEN;HJ60..LHD..GEN;BJ60,FJ62..GEN,ME W/BOOST VENTILATOR,FR	11/1984 - 08/1987	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-90A27	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 08/1987	1
Common parts
88653-90A00
91665-40616

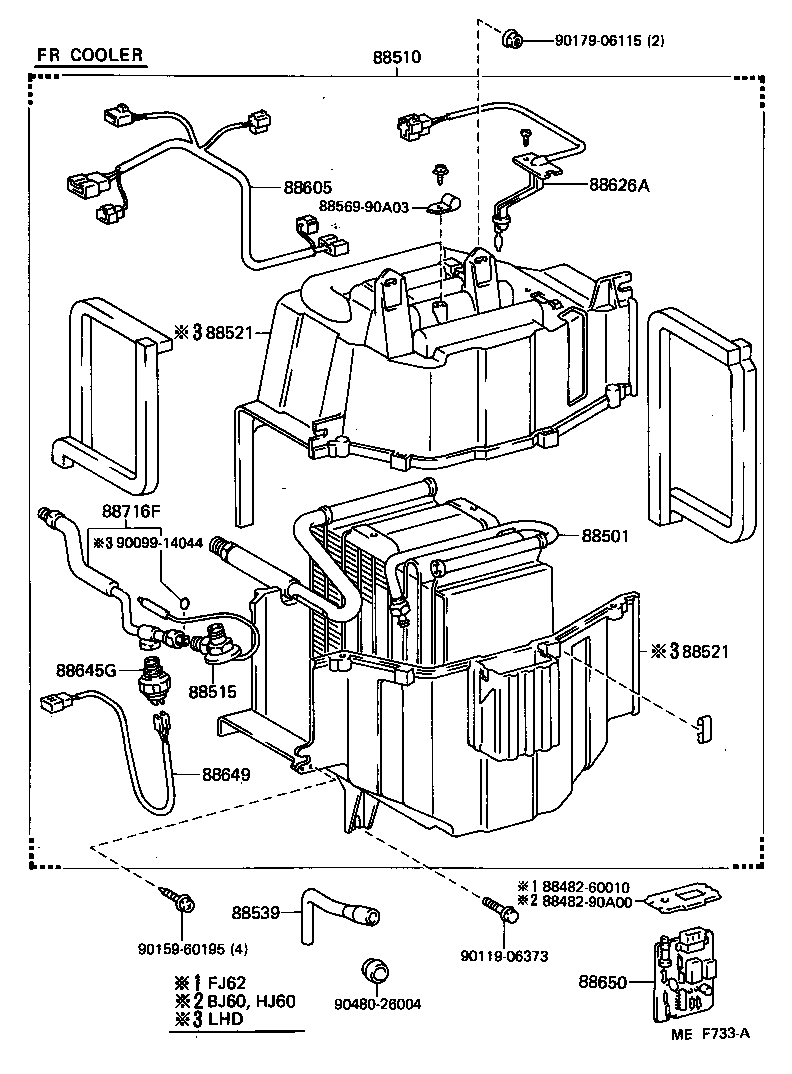

(8411- )EUR,GEN,ME

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-90A03	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 04/1986	1
88501-90A07	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	04/1986 - 08/1987	1
88510 - UNIT ASSY, COOLER
88510-90A05	BJ60,FJ62,HJ60..LHD..(GEN,ME) W/BOOST VENTILATOR,FR	11/1984 - 10/1985	1
88510-90A04	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 08/1987	1
88510-90A05	FJ62..LHD W/BOOST VENTILATOR,FR	10/1985 - 08/1987	1
88515 - VALVE, COOLER EXPANSION
88515-20040	BJ60,FJ62,HJ60..GEN,ME FR	11/1984 - 10/1985	1
88515-87004	BJ60,FJ62,HJ60..GEN,ME FR	10/1985 - 08/1987	1
88521 - CASE, COOLER UNIT
88521-90A02	FJ62,HJ60..LHD..(GEN,ME) FR,UPPER	11/1984 - 08/1987	1
88521-90A03	FJ62,HJ60..LHD..(GEN,ME) FR,LOWER	11/1984 - 08/1987	1
88521 - CASE, COOLER UNIT
88521-90A02	FJ62,HJ60..LHD..(GEN,ME) FR,UPPER	11/1984 - 08/1987	1
88521-90A03	FJ62,HJ60..LHD..(GEN,ME) FR,LOWER	11/1984 - 08/1987	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME FR	08/1980 - 08/1987	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-90A09	BJ60,FJ62,HJ6#..ARL,GEN,ME FR	11/1984 - 08/1987	1
88605-90A10	HJ60..SOB..GEN;HJ60..LHD..GEN;BJ60,FJ62..GEN,ME W/BOOST VENTILATOR,FR	11/1984 - 08/1987	1
88626A - HOLDER, THERMISTOR
88626-90A01	BJ60,FJ6#,HJ60..LHD..(GEN,ME)	08/1980 - 08/1987	1
88645G - SWITCH, PRESSURE
88645-30250	BJ60,FJ62,HJ6#..ARL,GEN,ME	08/1985 - 08/1987	1
88645-22020	BJ60,FJ6#,HJ60..ARL,GEN,ME	08/1980 - 08/1985	1
88649 - WIRING, COOLER, NO.2
88648-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME	08/1980 - 08/1987	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90A02	FJ62	11/1984 - 10/1985	1
88650-90A02	FJ62..GEN,ME	10/1985 - 08/1987	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-90A27	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 08/1987	1
Common parts
88482-60010
88482-90A00
88569-90A03
90099-14044
90119-06373
90159-60195
90179-06115
90480-26004

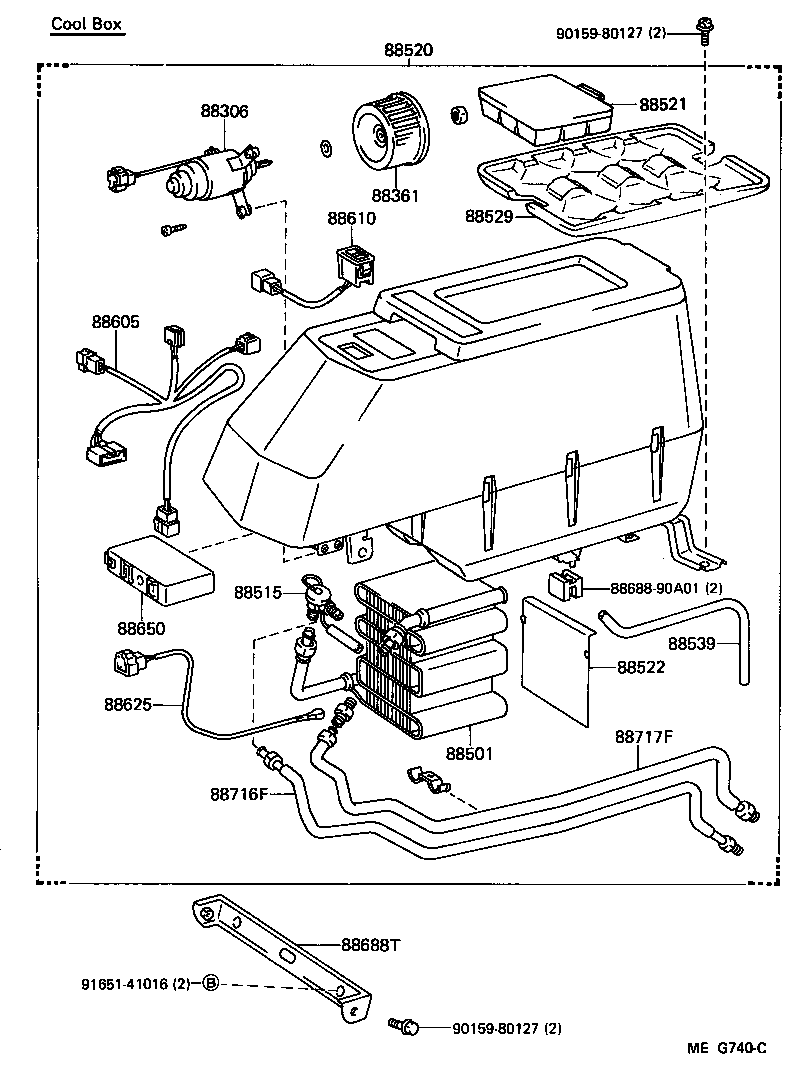

(8510- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-90A03	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 04/1986	1
88501-90A07	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	04/1986 - 08/1987	1
88515 - VALVE, COOLER EXPANSION
88515-20040	BJ60,FJ62,HJ60..GEN,ME FR	11/1984 - 10/1985	1
88515-87004	BJ60,FJ62,HJ60..GEN,ME FR	10/1985 - 08/1987	1
88521 - CASE, COOLER UNIT
88521-90A02	FJ62,HJ60..LHD..(GEN,ME) FR,UPPER	11/1984 - 08/1987	1
88521-90A03	FJ62,HJ60..LHD..(GEN,ME) FR,LOWER	11/1984 - 08/1987	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-90A00	BJ60,FJ6#,HJ6#..ARL,GEN,ME FR	08/1980 - 08/1987	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-90A09	BJ60,FJ62,HJ6#..ARL,GEN,ME FR	11/1984 - 08/1987	1
88605-90A10	HJ60..SOB..GEN;HJ60..LHD..GEN;BJ60,FJ62..GEN,ME W/BOOST VENTILATOR,FR	11/1984 - 08/1987	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-90A02	FJ62	11/1984 - 10/1985	1
88650-90A02	FJ62..GEN,ME	10/1985 - 08/1987	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-90A27	BJ60,FJ62,HJ60..LHD..(GEN,ME) FR	11/1984 - 08/1987	1
Common parts
88688-90A01
90159-80127
91651-41016
