FJ62LG-PV (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1987
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

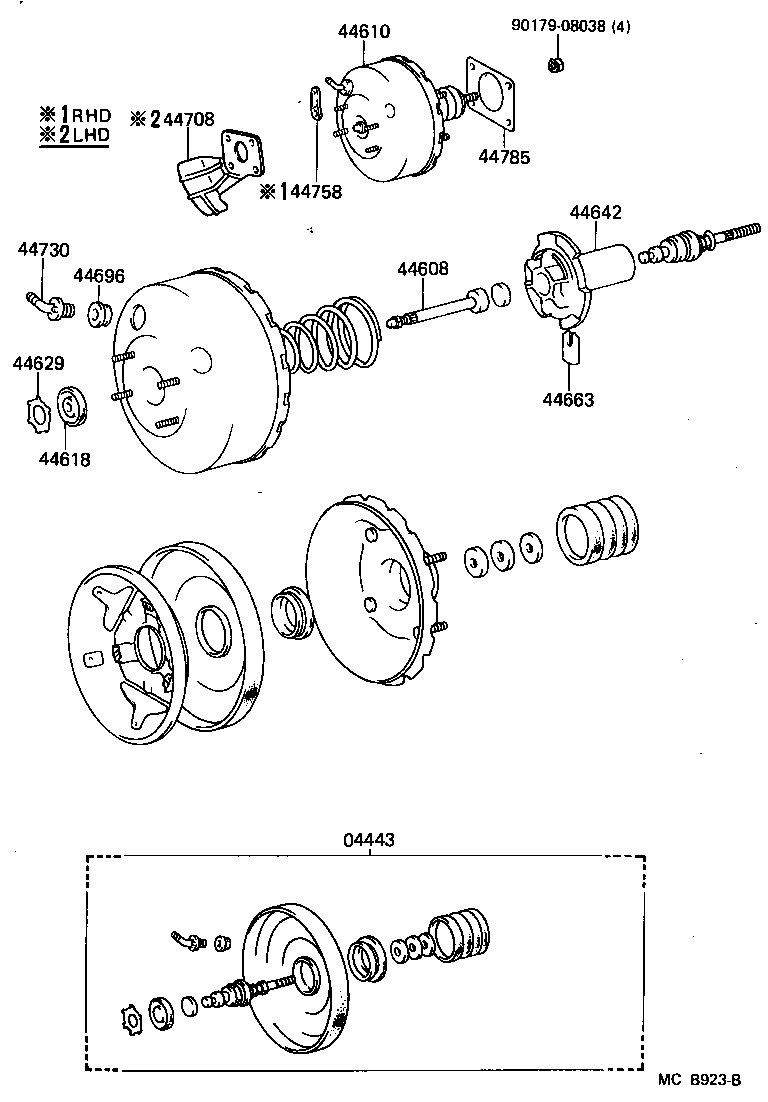

(8411-8704)FJ62 ; (8704- )FJ62..GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-60230 |
FJ62 FR DISC BRAKE |
1 | ||
| 04443-60230 |
FJ62..LHD FR DISC BRAKE |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
BJ60,FJ62,HJ6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60370 |
FJ62..LHD FR DISC BRAKE |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 44621-28120 |
BJ60,FJ62,HJ6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 44628-28120 |
BJ60,FJ62,HJ6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-60280 |
BJ60,FJ62,HJ60 FR DISC BRAKE |
1 | ||
| 44642-60280 |
FJ62..LHD FR DISC BRAKE |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
BJ60,FJ62,HJ6# |
1 | ||
| 44635-28120 |
BJ60,FJ62,HJ6#..EUR,GEN,ME |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
FJ6# |
1 | ||
| 44708 - INSULATOR SUB-ASSY, BRAKE BOOSTER HEAT | ||||
| 44786-60030 |
FJ6#..LHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
FJ62 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
BJ60,FJ62,HJ6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

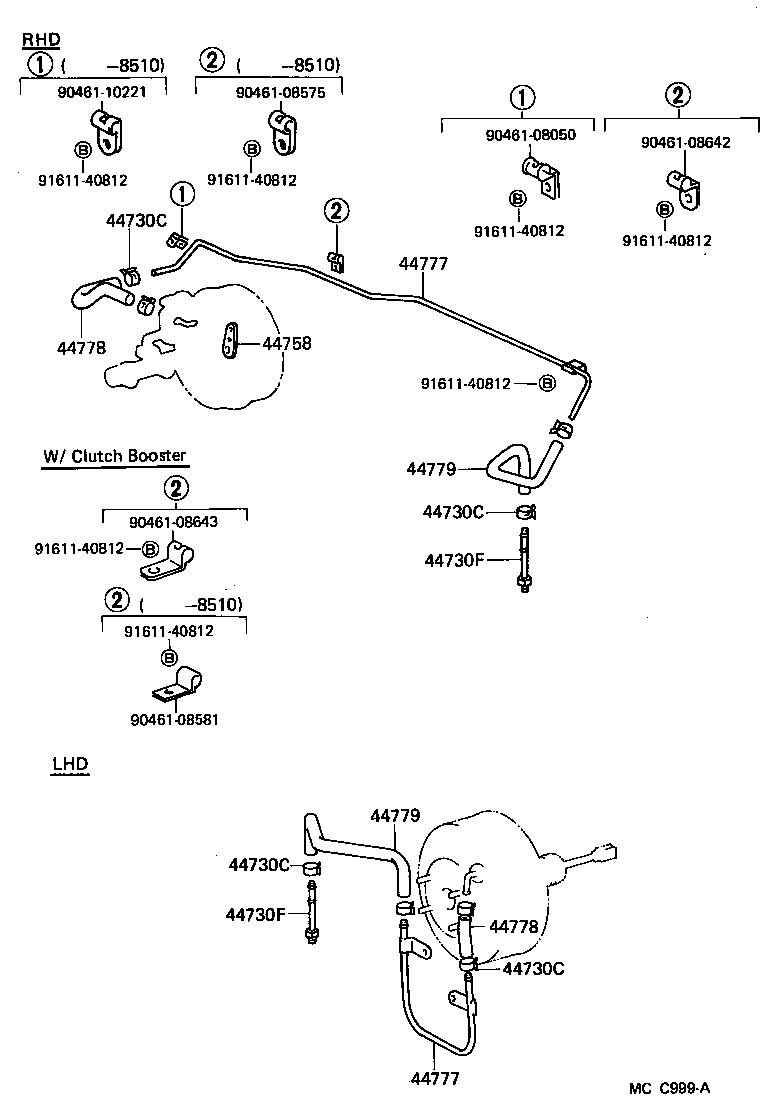

(8411- )FJ62
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ60,FJ62,HJ6# |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ60,FJ62,HJ6# |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ60,FJ62,HJ6# |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
BJ60,FJ62,HJ6# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
FJ62 |
1 | ||
| 90404-51031 |
FJ62 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
FJ62 |
1 | ||
| 90404-51031 |
FJ62 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44763-60040 |
FJ62..LHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44763-60040 |
FJ62..LHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 90445-17044 |
FJ62..LHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 90445-17044 |
FJ62..LHD |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44773-60060 |
FJ62..LHD |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44773-60060 |
FJ62..LHD |
1 | ||
| Common parts | ||||
| 90461-08050 | ||||
| 90461-08575 | ||||
| 90461-08581 | ||||
| 90461-08642 | ||||
| 90461-08643 | ||||
| 90461-10221 | ||||
| 91611-40812 | ||||
