FJ62LG-PV (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1987
Engine
3F
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )4FC

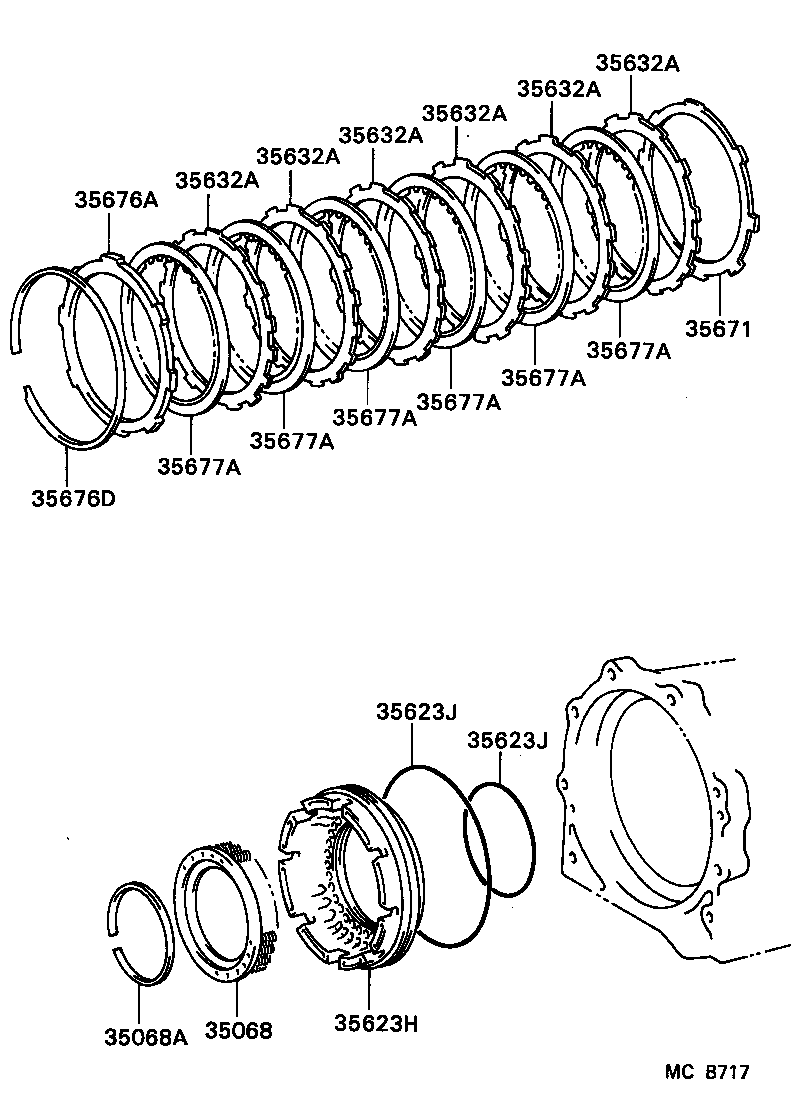

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-36010 |
FJ62,HJ6#..4FC |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-87001 |
FJ62,HJ6#..4FC |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-36010 |
FJ62,HJ6#..4FC |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99030 |
FJ62,HJ6#..4FC OUTER |
1 | ||
| 90301-94002 |
FJ62,HJ6#..4FC INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99030 |
FJ62,HJ6#..4FC OUTER |
1 | ||
| 90301-94002 |
FJ62,HJ6#..4FC INNER |
1 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35632A - PLATE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35632-36020 |
FJ62,HJ6#..4FC |
6 | ||
| 35671 - PLATE, BRAKE CUSHION | ||||
| 35671-36010 |
FJ62,HJ6#..4FC |
1 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-36070 |
FJ62,HJ6#..4FC T=6.65,T=6.65 |
1 | ||
| 35676-36090 |
FJ62,HJ6#..4FC T=7.45,T=7.45 |
1 | ||
| 35676-36080 |
FJ62,HJ6#..4FC T=7.05,T=7.05 |
1 | ||
| 35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99021 |
FJ62,HJ6#..4FC |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35633-36030 |
FJ62,HJ6#..4FC |
6 | ||
