FJ62LG-PV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

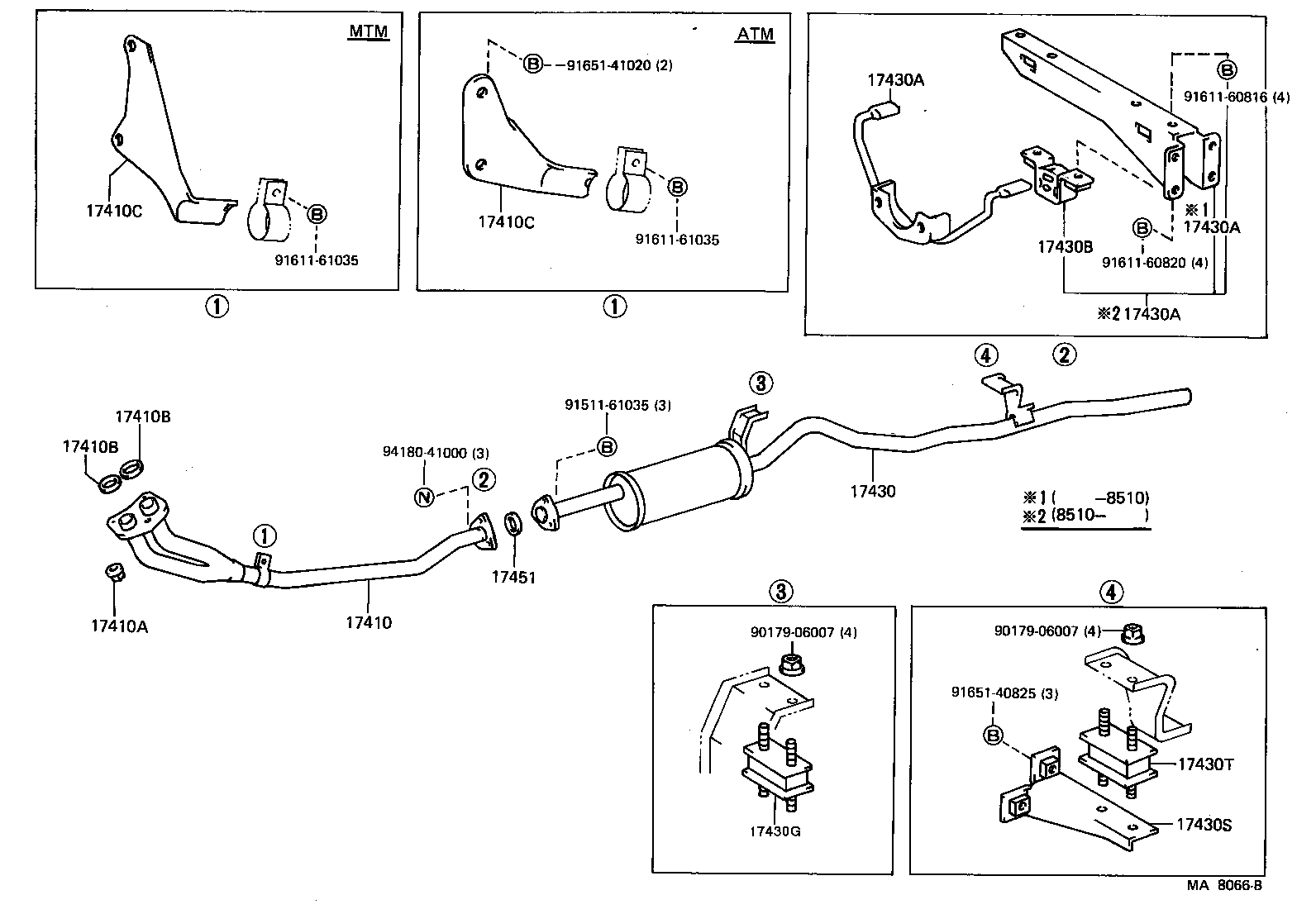

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410C 17410C 17430 17430A 17430A 17430A 17430B 17430G 17430S 17430T 17451 9017906007 9017906007 9151161035 9161160816 9161160820 9161161035 9161161035 9165140825 9165141020 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-61200

3F..FJ62..4FC

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

3F..FJ62

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

3F..FJ62

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61130

3F..FJ62..4FC

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-61130

3F..FJ62..4FC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-61210

3F,2H..FJ62,HJ60..GEN,ME

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,3F,2H..BJ60,FJ62,HJ60

PIPE SUPPORT

 1
17590-61051

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

FRAME SIDE

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17505-61050

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

PIPE SUPPORT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,3F,2H..BJ60,FJ62,HJ60

PIPE SUPPORT

 1
17590-61051

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

FRAME SIDE

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17505-61050

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

PIPE SUPPORT

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17505-61040

3B,3F,2H..BJ60,FJ62,HJ60

PIPE SUPPORT

 1
17590-61051

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

FRAME SIDE

 1
17583-61050

3B,2F,3F,2H..BJ60,FJ6#,HJ60

FRAME SIDE

 1
17505-61050

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

PIPE SUPPORT

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-04052

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 2
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-61030

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17574-61060

12HT,3B,3F,2H..BJ60,FJ62,HJ6#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

12HT,3B,2F,3F,2H..BJ60,FJ6#,HJ6#

 1
17451 - GASKET, EXHAUST PIPE
90917-06024

12HT,2F,3F,2H..FJ6#,HJ6#

 1
Common parts
90179-06007
91511-61035
91611-60816
91611-60820
91611-61035
91651-40825
91651-41020
94180-41000
