FJ62LG-PNEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

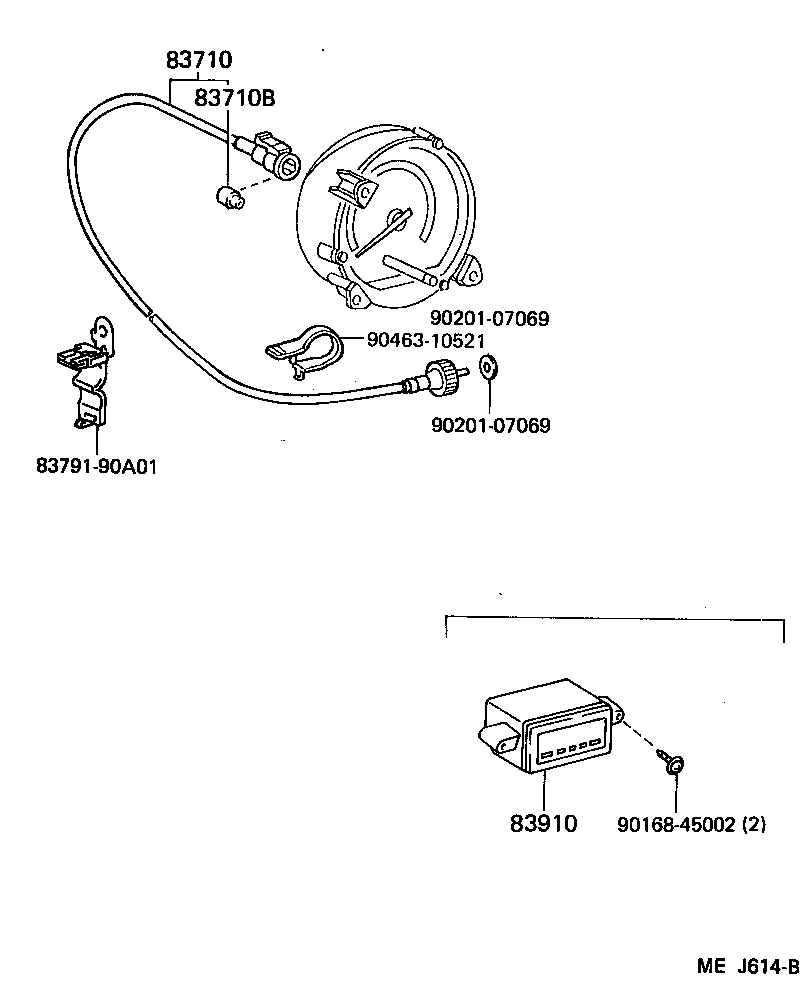

ILLUST NO. 2 OF 3(8808- )FJ62

Click highlighted areas on diagram

diagram 83710 83710B 8379190A01 83910 9016845002 9020107069 9020107069 9046310521
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-90A20

FJ62

 1
83710B - BUSH, SPEEDOMETER DRIVE CABLE
90389-02001

FJ62,HJ6#

 1
83910 - CLOCK ASSY
83910-90A11

FJ62

 1
Common parts
83791-90A01
90168-45002
90201-07069
90463-10521
