FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )FJ62

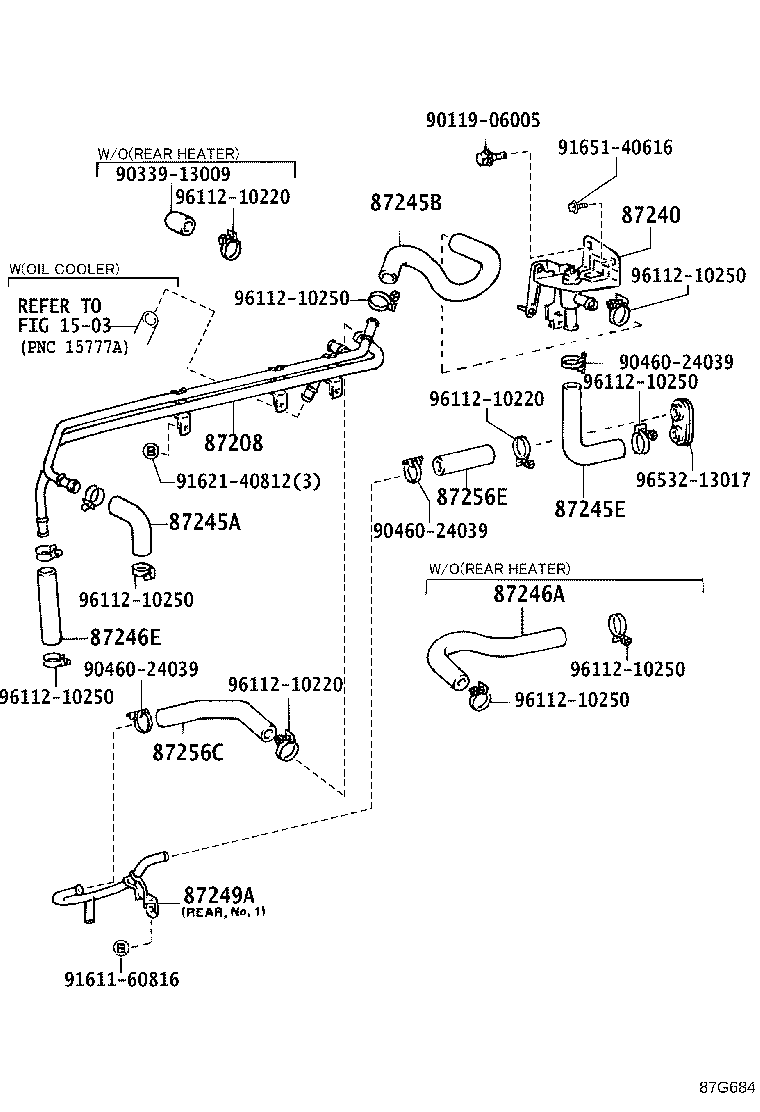

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-90K06 |
FJ62 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90A00 |
FJ62,HJ6# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90K53 |
FJ62 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90A27 |
FJ62 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90A00 |
FJ62,HJ6# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90A28 |
FJ62 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90K36 |
FJ62 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-90A25 |
FJ62;HJ60..RHD;HJ6#..SOB..GX REAR NO.1 |
1 | ||
| 87248-90A24 |
FJ62;HJ60..RHD;HJ6#..SOB..GX REAR NO.2 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 87245-90A30 |
FJ62 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-30100 |
FJ62;HJ61..SOB *H,L=60 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90339-13009 | ||||
| 90460-24039 | ||||
| 91611-60816 | ||||
| 91621-40812 | ||||
| 91651-40616 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
| 96532-13017 | ||||
| Linked diagrams | ||||
| 1503 | ||||
