FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

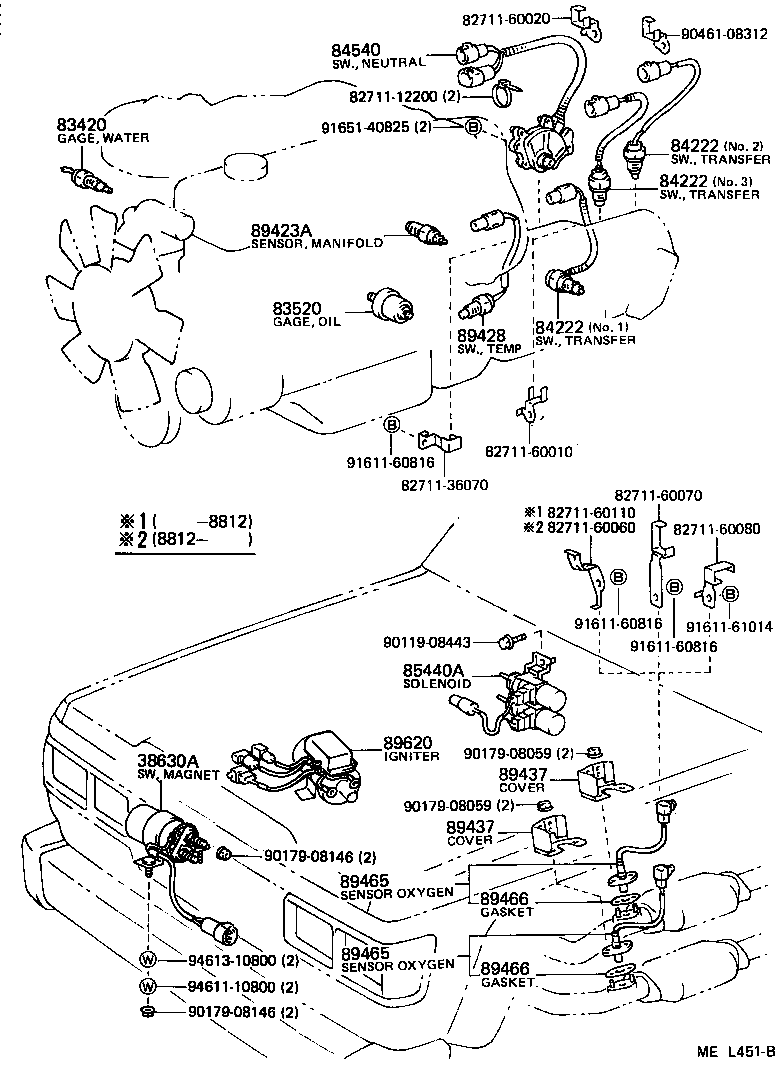

ILLUST NO. 1 OF 6(8808- )FJ62
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38630A - SWITCH ASSY, MAGNET | ||||
| 38630-60040 |
FJ62 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ62,HJ6# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ62 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
FJ62 NO.4 |
2 | ||
| 84222-60040 |
FJ62,HJ60..ATM NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ60..ATM NO.2 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
FJ62 NO.4 |
2 | ||
| 84222-60040 |
FJ62,HJ60..ATM NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ60..ATM NO.2 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60071 |
FJ62 NO.4 |
2 | ||
| 84222-60040 |
FJ62,HJ60..ATM NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ60..ATM NO.2 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60020 |
FJ62,HJ60..ATM |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60120 |
FJ62 |
1 | ||
| 89423A - SENSOR, MANIFOLD TEMPERATURE | ||||
| 89423-60020 |
FJ62 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-36010 |
FJ62,HJ60..ATM |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
FJ62,HJ6#..LHD..SRF..(GX,VX) AMBIENT TEMP.SENSOR |
1 | ||
| 89437-60010 |
FJ62 OYXGEN SENSOR |
2 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
FJ62,HJ6#..LHD..SRF..(GX,VX) AMBIENT TEMP.SENSOR |
1 | ||
| 89437-60010 |
FJ62 OYXGEN SENSOR |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69015 |
FJ62 |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-69015 |
FJ62 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FJ62 |
2 | ||
| 89466-30010 |
FJ62 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
FJ62 |
2 | ||
| 89466-30010 |
FJ62 |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-14410 |
FJ62 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-36070 | ||||
| 82711-60010 | ||||
| 82711-60020 | ||||
| 82711-60060 | ||||
| 82711-60070 | ||||
| 82711-60080 | ||||
| 82711-60110 | ||||
| 90119-08443 | ||||
| 90179-08059 | ||||
| 90179-08146 | ||||
| 90461-08312 | ||||
| 91611-60816 | ||||
| 91611-61014 | ||||
| 91651-40825 | ||||
| 94611-10800 | ||||
| 94613-10800 | ||||
