FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

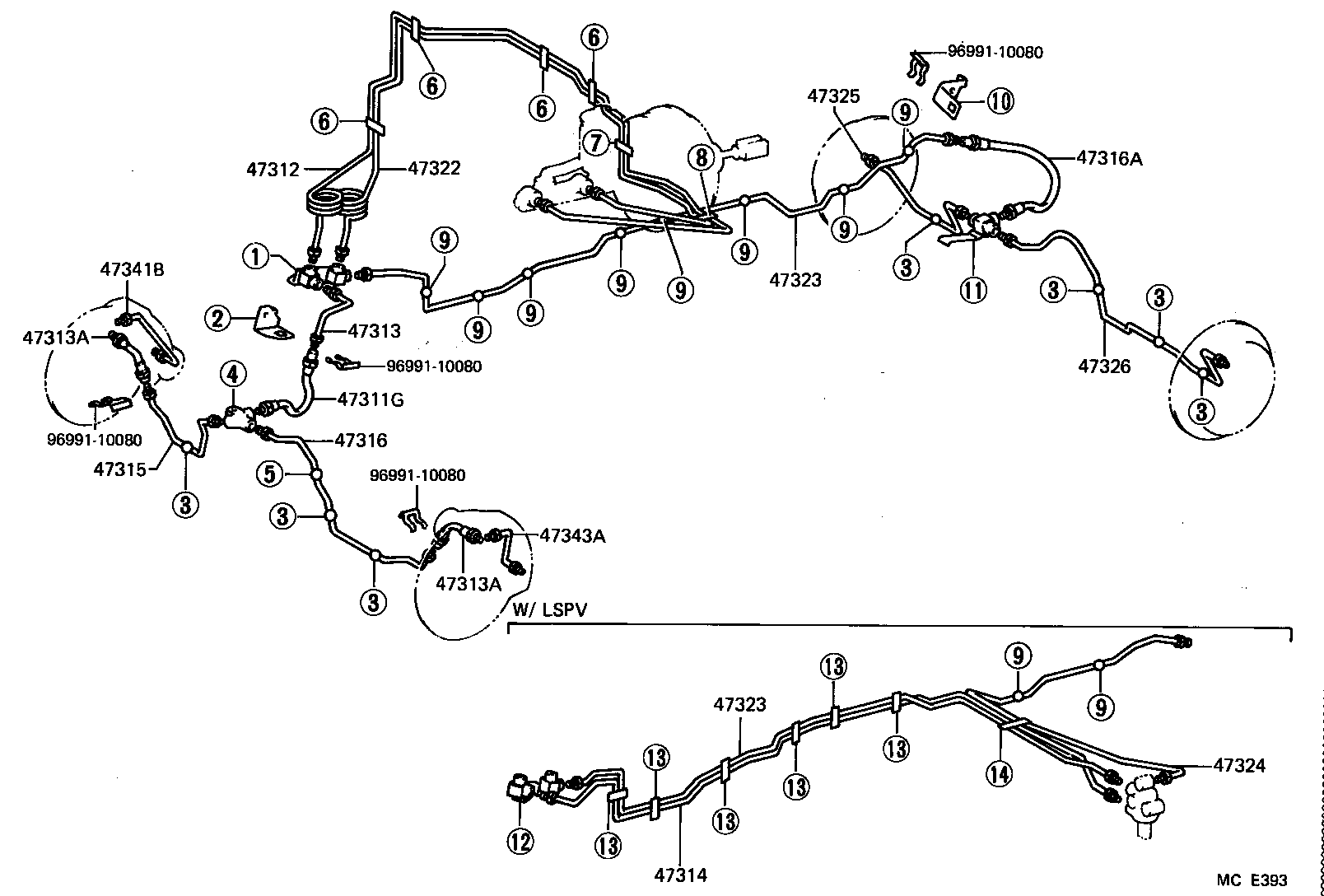

ILLUST NO. 1 OF 3(8808- )FJ62

Click highlighted areas on diagram

diagram 47311G 47312 47313 47313A 47313A 47314 47315 47316 47316A 47322 47323 47323 47324 47325 47326 47341B 47343A 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
96940-33005

FJ62,HJ6#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60610

FJ62

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60180

FJ62,HJ6#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

FJ62,HJ6#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-39855

FJ62,HJ6#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60180

FJ62,HJ6#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-60340

FJ62,HJ6#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60310

FJ62,HJ6#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

FJ62,HJ6#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-60490

FJ62

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60041

FJ62,HJ6#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-60041

FJ62,HJ6#

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-60021

FJ62,HJ6#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60100

FJ62,HJ6#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60110

FJ62,HJ6#

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-60031

FJ62,HJ6#

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-60021

FJ62,HJ6#

 1
Common parts
96991-10080

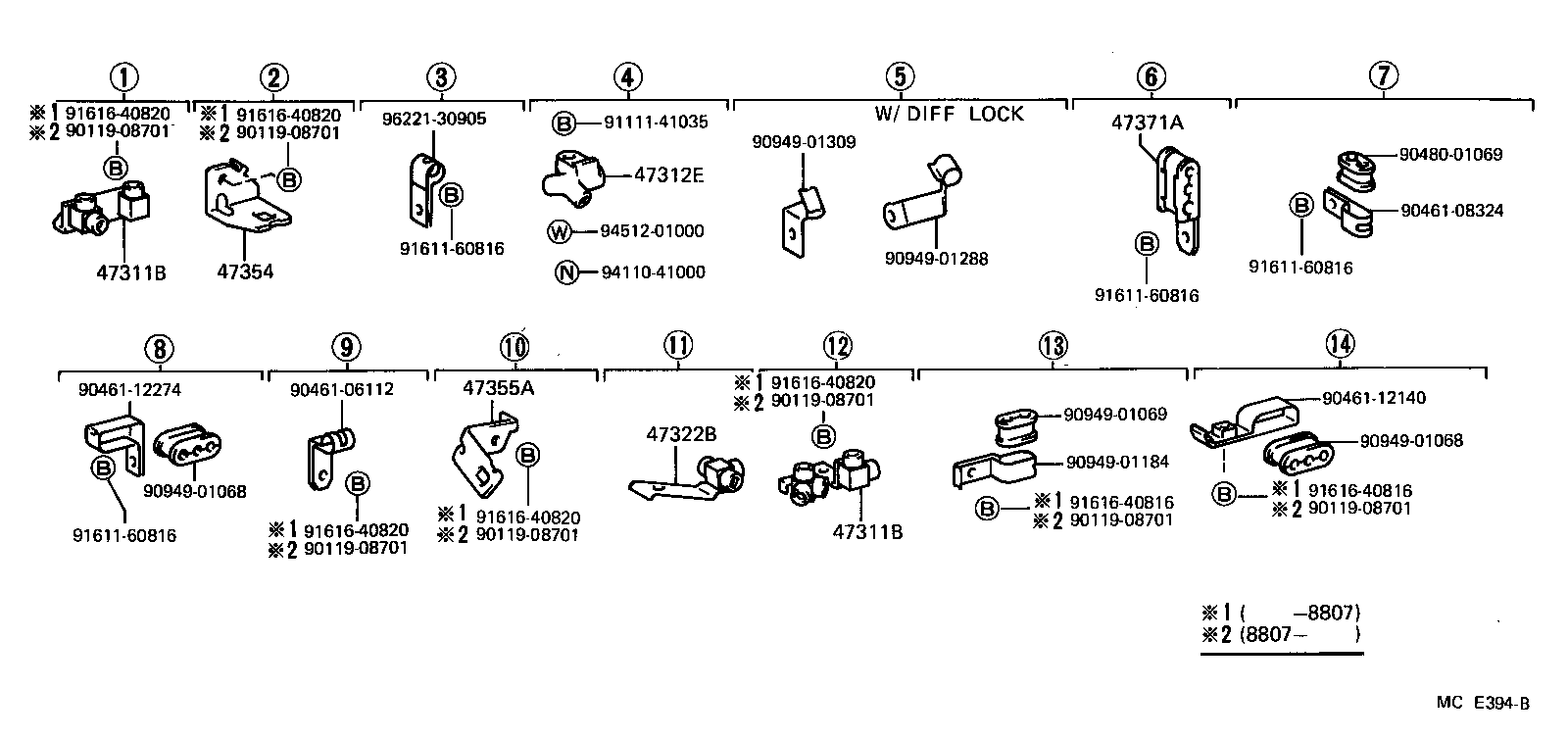

ILLUST NO. 2 OF 3(8808- )FJ62

Click highlighted areas on diagram

diagram 47311B 47311B 47312E 47322B 47354 47355A 47371A 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9011908701 9046106112 9046108324 9046112140 9046112274 9048001069 9094901068 9094901068 9094901069 9094901184 9094901288 9094901309 9111141035 9161160816 9161160816 9161160816 9161160816 9161640816 9161640816 9161640820 9161640820 9161640820 9161640820 9161640820 9411041000 9451201000 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10214

FJ62,HJ6#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10214

FJ62,HJ6#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10042

FJ62,HJ6#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10106

FJ62,HJ6#

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-60030

FJ62,HJ6#

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47355-60030

FJ62,HJ6#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35020

FJ62,HJ61;HJ60..LHD..MTM

 4
Common parts
90119-08701
90461-06112
90461-08324
90461-12140
90461-12274
90480-01069
90949-01068
90949-01069
90949-01184
90949-01288
90949-01309
91111-41035
91611-60816
91616-40816
91616-40820
94110-41000
94512-01000
96221-30905
