FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

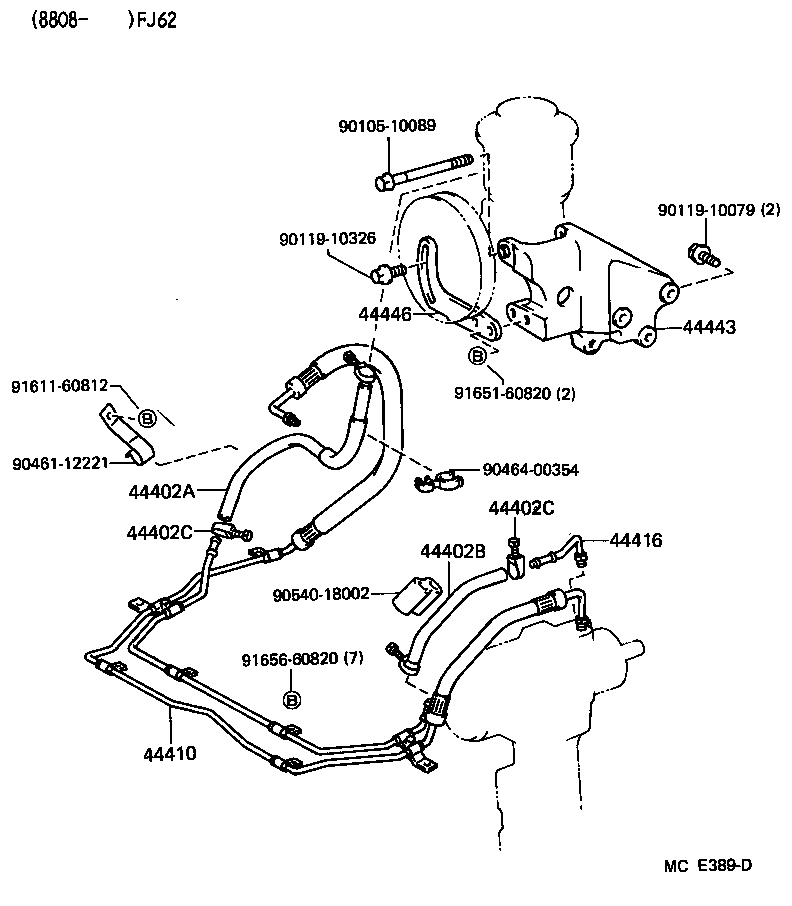

(8808- )FJ62
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44402A - HOSE, POWER STEERING OIL COOLER INLET | ||||
| 90445-18090 |
FJ62 |
1 | ||
| 44402B - HOSE, POWER STEERING OIL COOLER OUTLET | ||||
| 90445-18089 |
FJ62;HJ60..RHD |
1 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
FJ62;HJ60..RHD |
4 | ||
| 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE | ||||
| 90460-01001 |
FJ62;HJ60..RHD |
4 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60170 |
FJ62 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-60061 |
FJ62,HJ6# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-60050 |
FJ62 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-60020 |
FJ62 |
1 | ||
| Common parts | ||||
| 90105-10089 | ||||
| 90119-10079 | ||||
| 90119-10326 | ||||
| 90461-12221 | ||||
| 90464-00354 | ||||
| 90540-18002 | ||||
| 91611-60812 | ||||
| 91651-60820 | ||||
| 91656-60820 | ||||
