FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

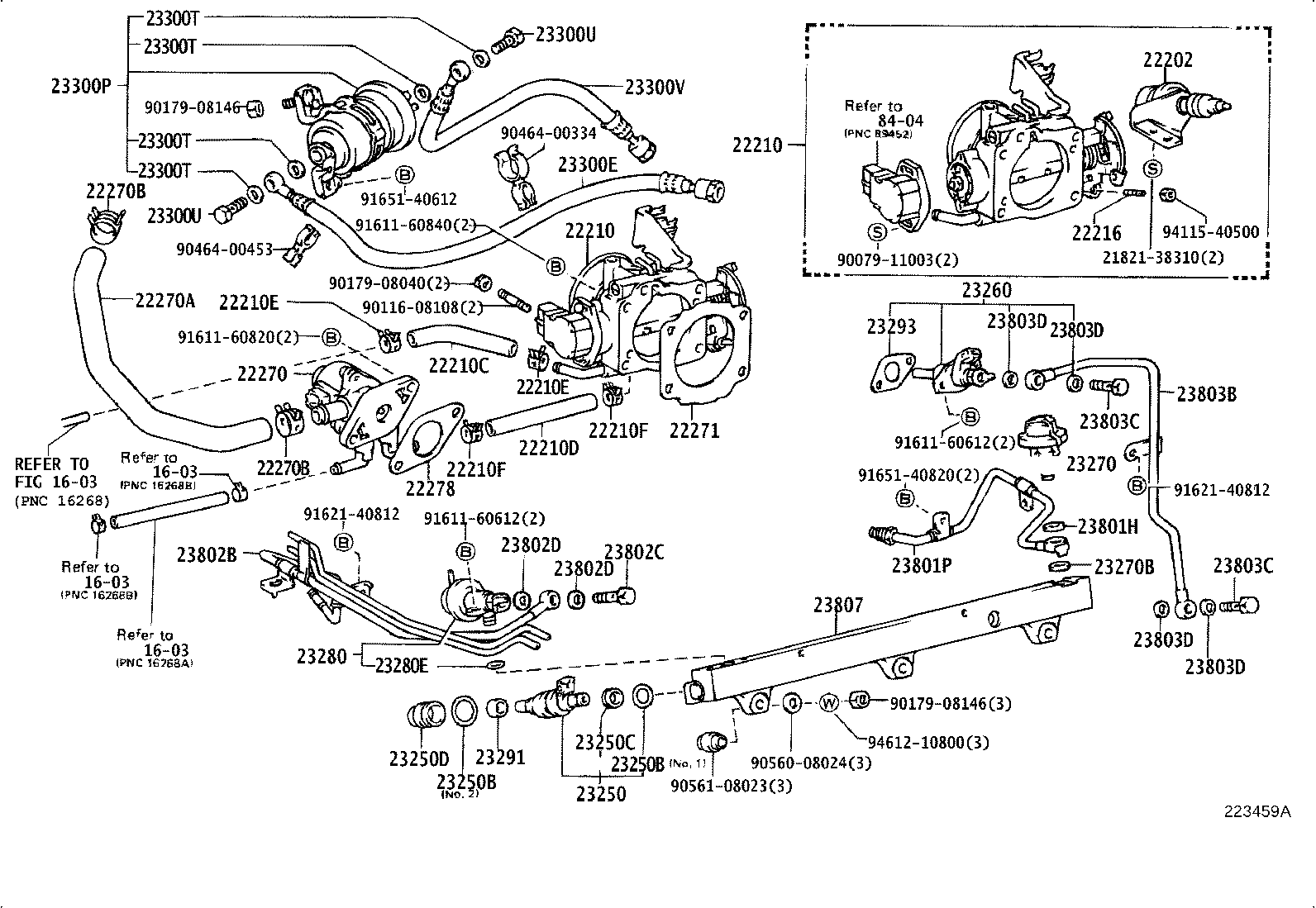

ILLUST NO. 1 OF 2(8808- )3FE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22202 - DASH POT SUB-ASSY | ||||
| 22202-61011 |
3FE..FJ62 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-61010 |
3FE..FJ62 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-61010 |
3FE..FJ62 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 99555-10125 |
3FE..FJ62 *H,L=125 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 99555-10125 |
3FE..FJ62 *H,L=125 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
3FE..FJ62 |
2 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-61010 |
3FE..FJ62 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 22233-61010 |
3FE..FJ62 |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-22003 |
3FE..FJ62 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-22003 |
3FE..FJ62 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-61010 |
3FE..FJ62 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-43011 |
3FE..FJ62 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-61010 |
3FE..FJ62 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3FE..FJ62 NO.1 |
6 | ||
| 90301-19006 |
3FE..FJ62 NO.2 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
3FE..FJ62 NO.1 |
6 | ||
| 90301-19006 |
3FE..FJ62 NO.2 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
3FE..FJ62 |
6 | ||
| 23250D - SPACER(FOR FUEL INJECTOR) | ||||
| 90561-10004 |
3FE..FJ62 |
6 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-69025 |
3FE..FJ62 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-74010 |
3FE..FJ62 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-28010 |
3FE..FJ62 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-61010 |
3FE..FJ62 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
3FE..FJ62 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
3FE..FJ62 |
6 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-74010 |
3FE..FJ62 |
1 | ||
| 23300E - HOSE, FUEL | ||||
| 90923-01349 |
3FE..FJ62 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-69025 |
3FE..FJ62 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3FE..FJ62 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3FE..FJ62 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3FE..FJ62 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
3FE..FJ62 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3FE..FJ62 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
3FE..FJ62 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01350 |
3FE..FJ62 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
3FE..FJ62 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-61030 |
3FE..FJ62 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-61040 |
3FE..FJ62 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08004 |
3FE..FJ62 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08011 |
3FE..FJ62 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08011 |
3FE..FJ62 |
2 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-61010 |
3FE..FJ62 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08004 |
3FE..FJ62 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08004 |
3FE..FJ62 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08011 |
3FE..FJ62 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08011 |
3FE..FJ62 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08011 |
3FE..FJ62 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08011 |
3FE..FJ62 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-61010 |
3FE..FJ62 |
1 | ||
| Common parts | ||||
| 21821-38310 | ||||
| 90079-11003 | ||||
| 90116-08108 | ||||
| 90179-08040 | ||||
| 90179-08146 | ||||
| 90464-00334 | ||||
| 90464-00453 | ||||
| 90560-08024 | ||||
| 90561-08023 | ||||
| 91611-60612 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91621-40812 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 94115-40500 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8404 | ||||

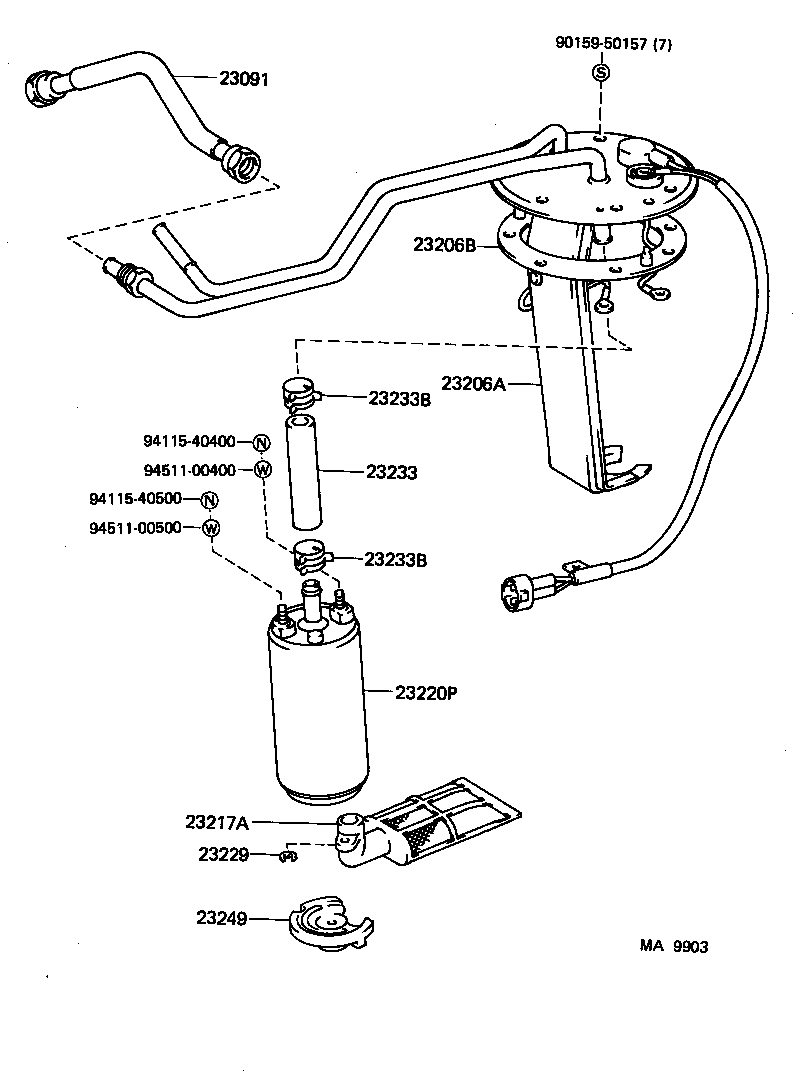

ILLUST NO. 2 OF 2(8808- )3FE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-61010 |
3FE..FJ62 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-61010 |
3FE..FJ62 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
3FE..FJ62 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-35081 |
3FE..FJ62 AISAN |
1 | ||
| 23217-35040 |
3FE..FJ62 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16190 |
3FE..FJ62 DENSO |
1 | ||
| 23220-16083 |
3FE..FJ62 AISAN |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
3FE..FJ62 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
3FE..FJ62 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
3FE..FJ62 |
1 | ||
| Common parts | ||||
| 90159-50157 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
