FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

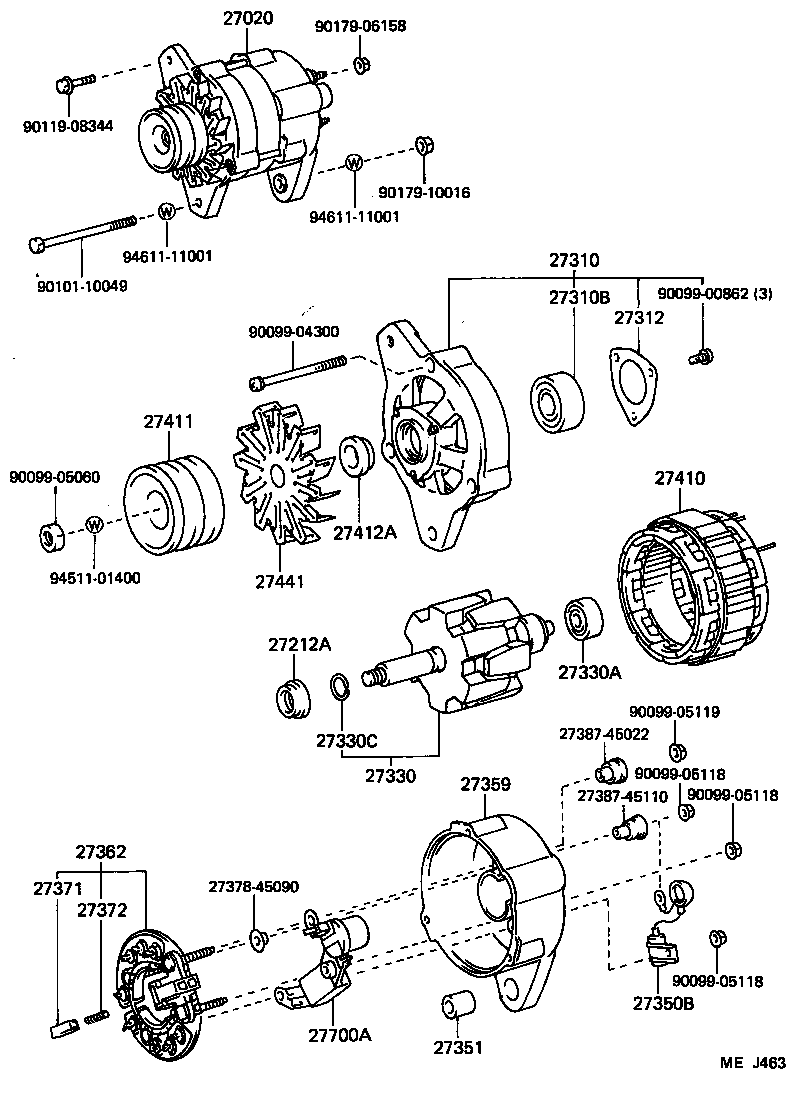

Click highlighted areas on diagram

12V 80A

diagram 27020 27212A 27310 27310B 27312 27330 27330A 27330C 27350B 27351 27359 27362 27371 27372 2737845090 2738745022 2738745110 27410 27411 27412A 27441 27700A 9009900862 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110049 9011908344 9017906158 9017910016 9451101400 9461111001 9461111001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-61090

3FE..FJ62

12V 80A

 1
27212A - RING, SPACE
27212-39050

3FE..FJ62

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72070

3FE..FJ62

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10110

3FE..FJ62

 1
27312 - PLATE, RETAINER
27312-45010

3FE..FJ62

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72070

3FE..FJ62

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

3FE..FJ62

 1
27330C - RING, SNAP
90099-07048

3FE..FJ62

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

3FE..FJ62

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

3FE..FJ62

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-61190

3FE..FJ62

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-72070

3FE..FJ62

 1
27371 - BRUSH, ALTERNATOR
27371-31011

3FE..FJ62

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

3FE..FJ62

 2
27410 - STATOR ASSY, ALTERNATOR
27410-72070

3FE..FJ62

 1
27411 - PULLEY, ALTERNATOR
27411-61210

3FE..FJ62

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-45012

3FE..FJ62

 1
27441 - FAN, ALTERNATOR
27441-45050

3FE..FJ62

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63030

3FE..FJ62

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00862
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08344
90179-06158
90179-10016
94511-01400
94611-11001
