FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

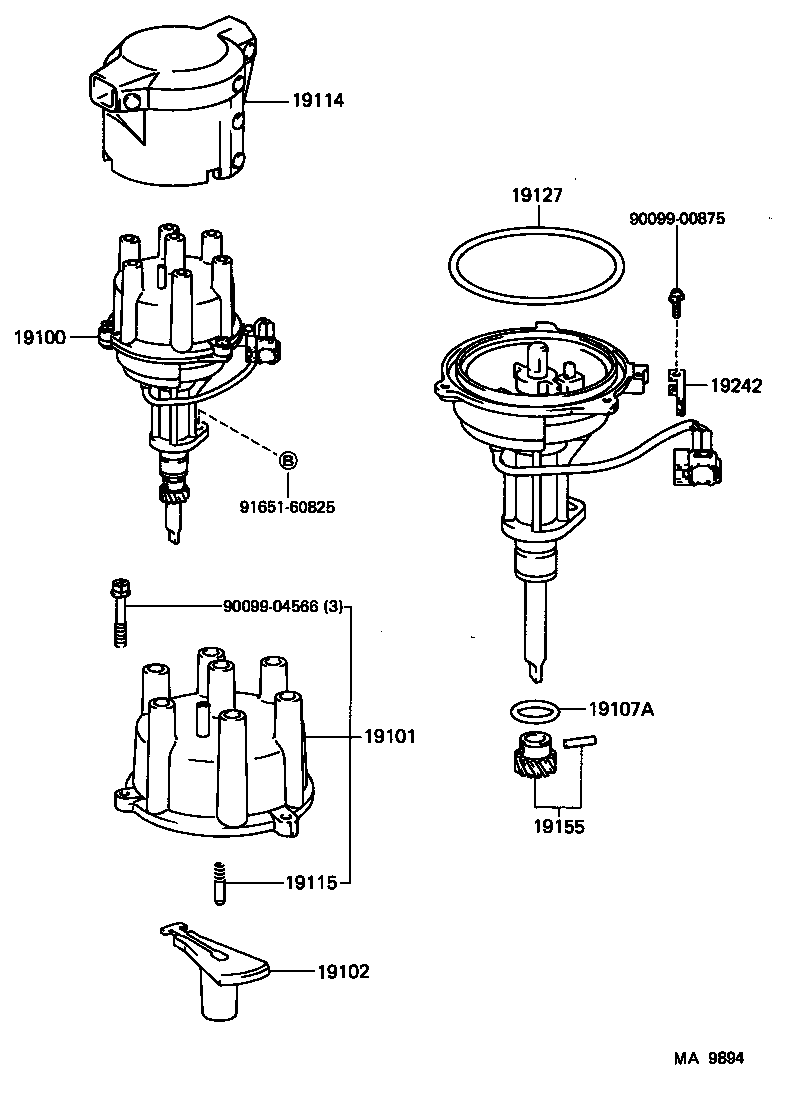

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19114 19115 19127 19155 19242 9009900875 9009904566 9165160825
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-61240

3FE..FJ62

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-61240

3FE..FJ62

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-61240

3FE..FJ62

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3FE..FJ62

 1
19114 - COVER, WATER PROOF(FOR DISTRIBUTOR)
19114-61040

3FE..FJ62

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3FE..FJ62

 1
19127 - PACKING, DUST PROOF
19127-61240

3FE..FJ62

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-61240

3FE..FJ62

 1
19242 - CLAMP, CORD
19242-61240

3FE..FJ62

 1
Common parts
90099-00875
90099-04566
91651-60825
