FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3FE

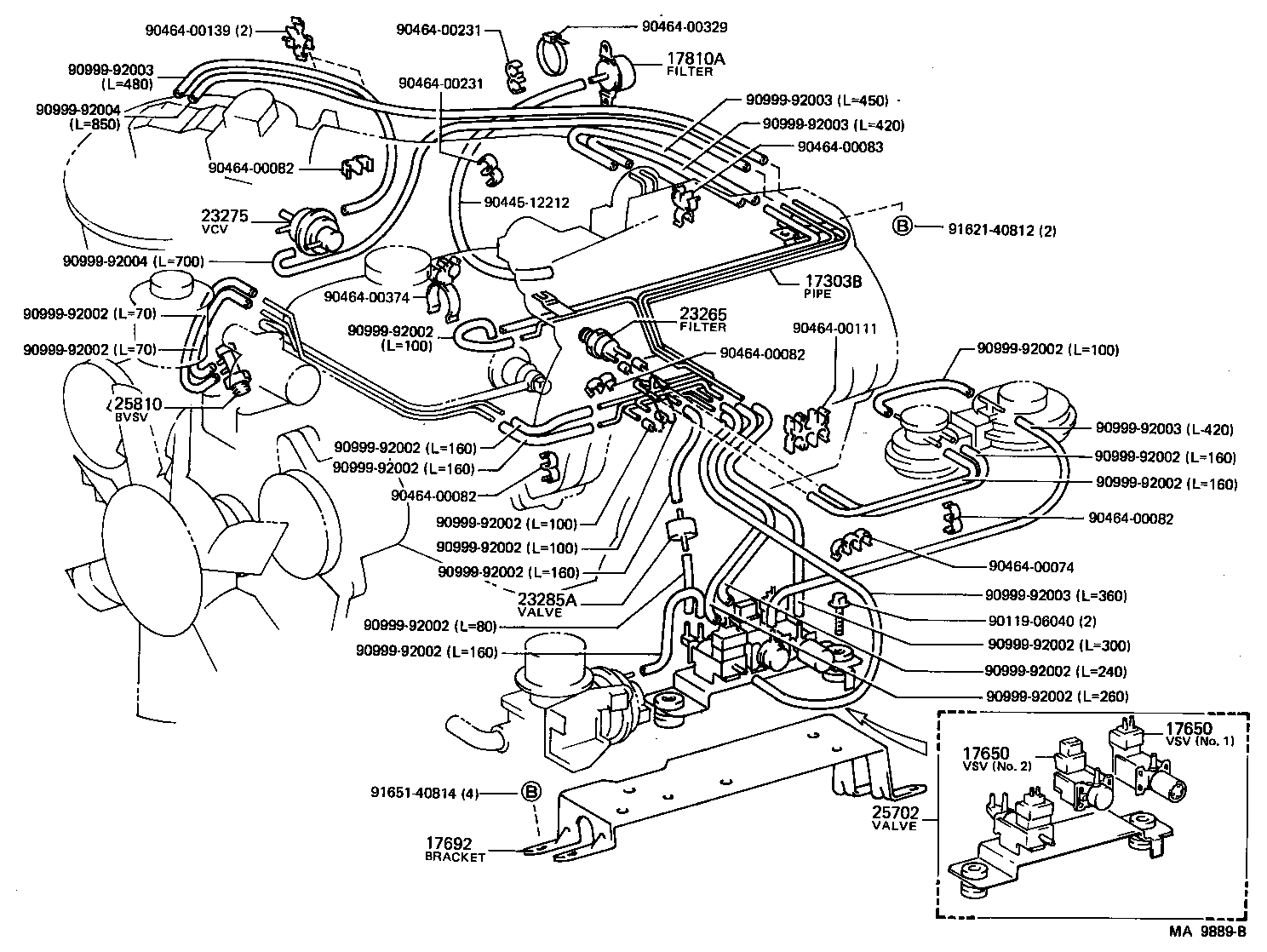

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-61020 |
3FE..FJ62 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-61010 |
3FE..FJ62 NO.1 |
1 | ||
| 90910-12079 |
3FE..FJ62 NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-61010 |
3FE..FJ62 NO.1 |
1 | ||
| 90910-12079 |
3FE..FJ62 NO.2 |
1 | ||
| 17692 - BRACKET, VACUUM CONTROL VALVE, NO.2 | ||||
| 17692-61020 |
3FE..FJ62 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 17810-61010 |
3FE..FJ62 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
3FE..FJ62 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03057 |
3FE..FJ62 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
3FE..FJ62 |
1 | ||
| 25702 - VALVE SET, EMISSION CONTROL, NO.2 | ||||
| 25702-61010 |
3FE..FJ62 |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-13020 |
3FE..FJ62 |
1 | ||
| Common parts | ||||
| 90119-06040 | ||||
| 90445-12212 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00083 | ||||
| 90464-00111 | ||||
| 90464-00139 | ||||
| 90464-00231 | ||||
| 90464-00329 | ||||
| 90464-00374 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91621-40812 | ||||
| 91651-40814 | ||||
