FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

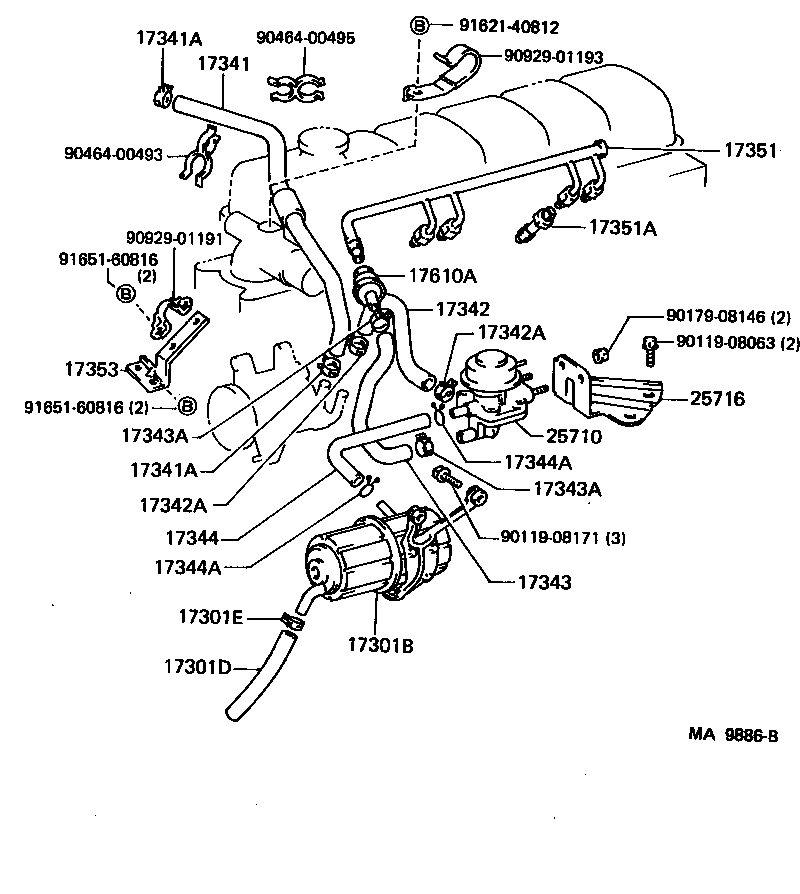

Click highlighted areas on diagram

diagram 17301B 17301D 17301E 17341 17341A 17341A 17342 17342A 17342A 17343 17343A 17343A 17344 17344A 17344A 17351 17351A 17353 17610A 25710 25716 9011908063 9011908171 9017908146 9046400493 9046400495 9092901191 9092901193 9162140812 9165160816 9165160816
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-61010

3FE..FJ62

 1
17301D - HOSE(FOR AIR SUCTION SILENCER)
90445-31018

3FE..FJ62

 1
17301E - CLIP(FOR AIR SUCTION SILENCER HOSE)
90467-28003

3FE..FJ62

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-61030

3FE..FJ62

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3FE..FJ62

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-28003

3FE..FJ62

 1
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-61040

3FE..FJ62

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

3FE..FJ62

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90467-28003

3FE..FJ62

 1
17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17343-61030

3FE..FJ62

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

3FE..FJ62

 1
17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3
90467-28003

3FE..FJ62

 1
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17344-61020

3FE..FJ62

 1
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

3FE..FJ62

 2
17344A - CLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4
90467-23001

3FE..FJ62

 2
17351 - MANIFOLD, AIR INJECTION
17306-61030

3FE..FJ62

 1
17351A - UNION, AIR INJECTION
90404-14012

3FE..FJ62

 4
17353 - SUPPORT, AIR INJECTION MANIFOLD
17353-61010

3FE..FJ62

 1
17610A - VALVE, CHECK(FOR AIR INJECTION SYSTEM)
90917-10076

3FE..FJ62

 1
25710 - VALVE ASSY, AIR SWITCHING
25710-61030

3FE..FJ62

 1
25716 - BRACKET, AIR SWITCHING VALVE
25716-61020

3FE..FJ62

 1
Common parts
90119-08063
90119-08171
90179-08146
90464-00493
90464-00495
90929-01191
90929-01193
91621-40812
91651-60816
