FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3FE

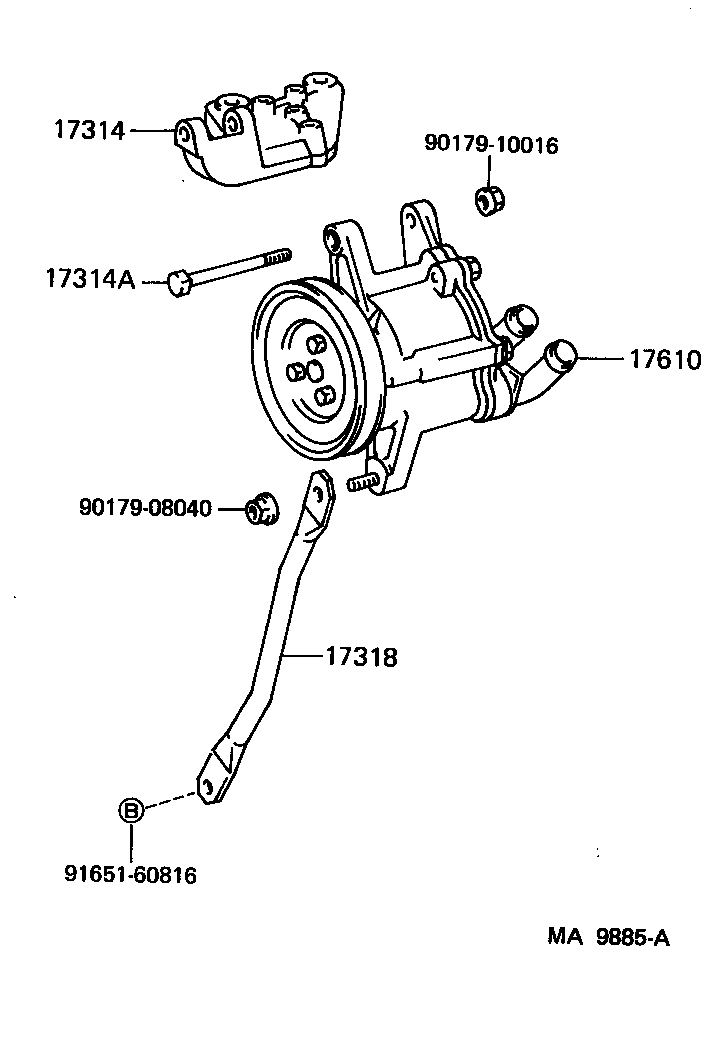

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-61040 |
3FE..FJ62 |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 90105-10221 |
3FE..FJ62 |
1 | ||
| 17318 - BAR, AIR PUMP ADJUSTING, NO.2 | ||||
| 17318-61060 |
3FE..FJ62 |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-61040 |
3FE..FJ62 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90179-10016 | ||||
| 91651-60816 | ||||
