FJ62LG-PNCEW (1988)
Toyota Land Cruiser
Production
Aug 1988
-
Jan 1990
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3FE

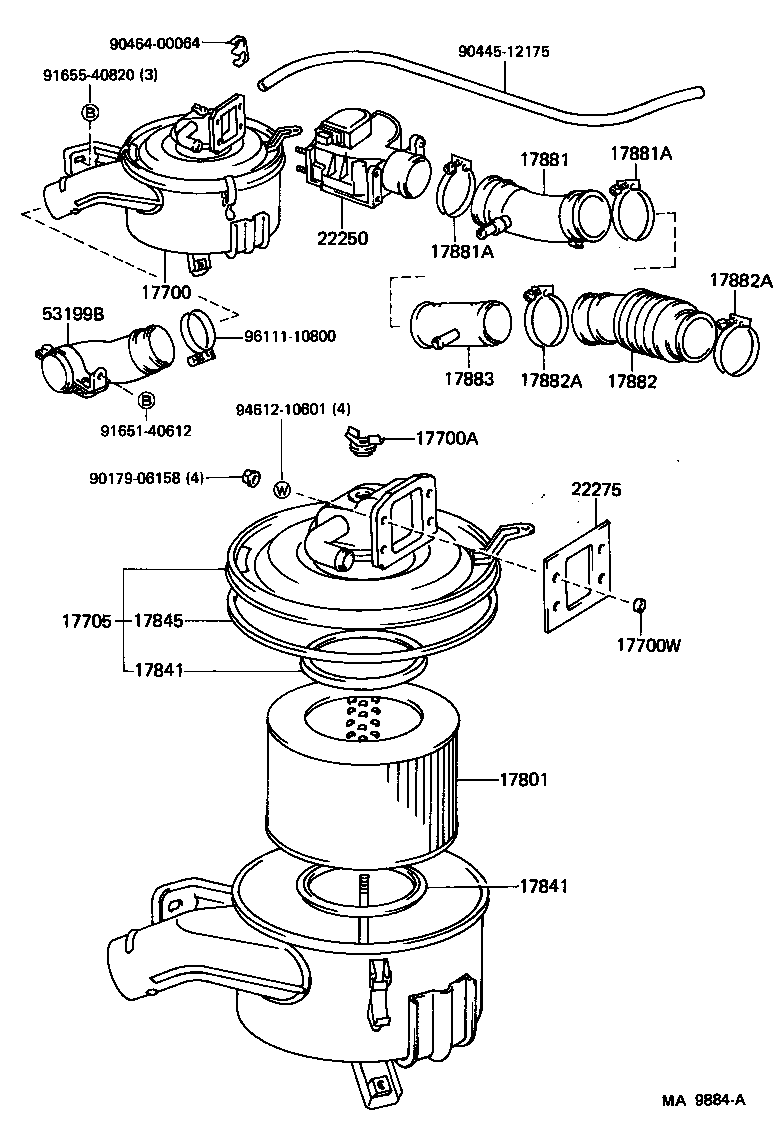

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-61230 |
3FE..FJ62 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3FE..FJ62 |
1 | ||
| 17700W - SPACER(FOR AIR CLEANER) | ||||
| 90560-06009 |
3FE..FJ62 |
4 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-61130 |
3FE..FJ62 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-68020 |
3FE..FJ62 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3FE..FJ62 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3FE..FJ62 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-61011 |
3FE..FJ62 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-61090 |
3FE..FJ62 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10930 |
3FE..FJ62 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10930 |
3FE..FJ62 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-61070 |
3FE..FJ62 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10930 |
3FE..FJ62 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10930 |
3FE..FJ62 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-61020 |
3FE..FJ62 |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-61010 |
3FE..FJ62 |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-43010 |
3FE..FJ62 |
1 | ||
| 53199B - DUCT SUB-ASSY, COOL AIR INTAKE | ||||
| 53207-90A00 |
FJ62 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90445-12175 | ||||
| 90464-00064 | ||||
| 91651-40612 | ||||
| 91655-40820 | ||||
| 94612-10601 | ||||
| 96111-10800 | ||||
