FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

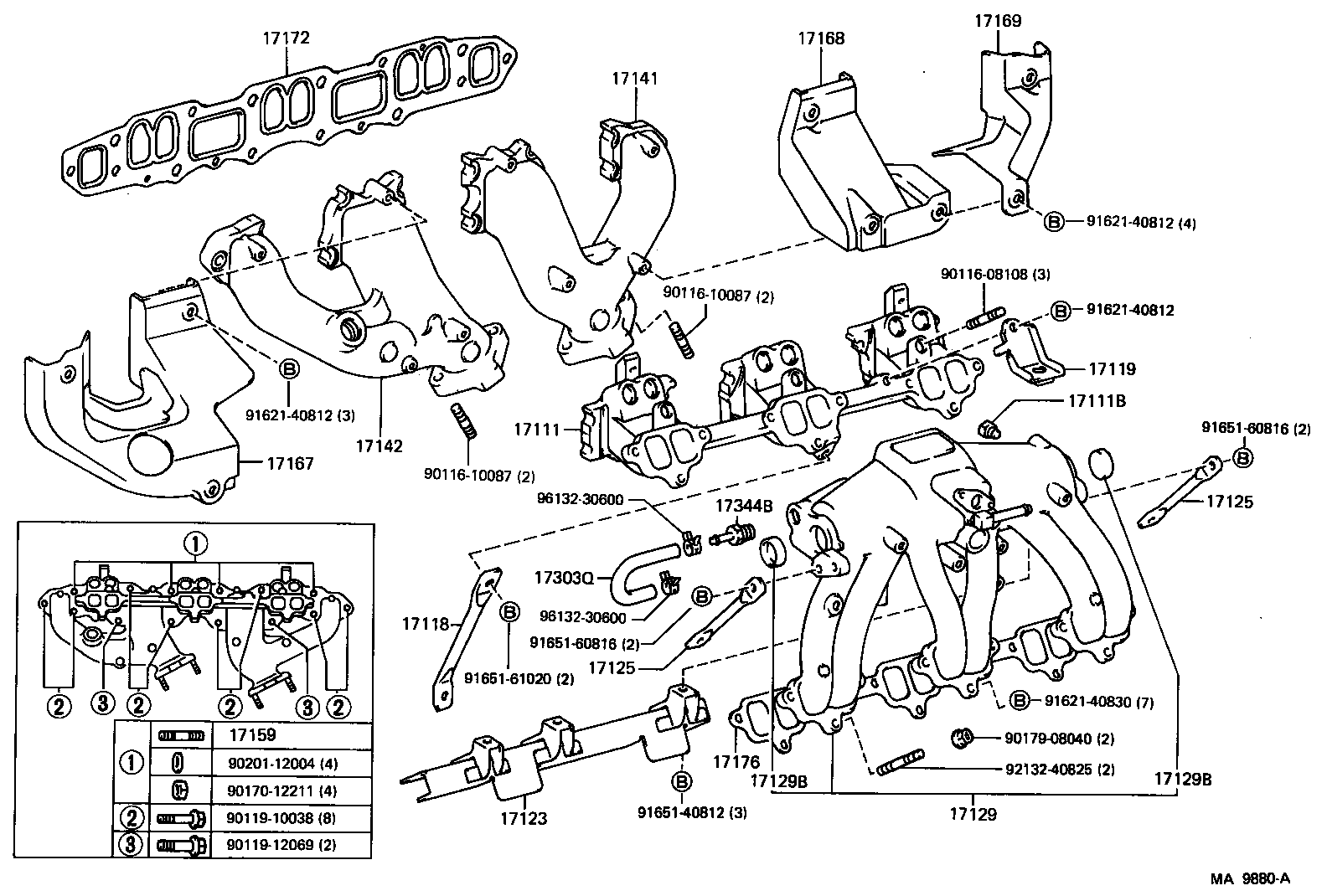

Click highlighted areas on diagram

diagram 17111 17111B 17118 17119 17123 17125 17125 17129 17129B 17129B 17141 17142 17159 17167 17168 17169 17172 17176 17303Q 17344B 9011608108 9011610087 9011610087 9011910038 9011912069 9017012211 9017908040 9020112004 9162140812 9162140812 9162140812 9162140830 9165140812 9165160816 9165160816 9165161020 9213240825 9613230600 9613230600
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-61040

3FE..FJ62

 1
17111B - PLUG, NO.2
90345-51025

3FE..FJ62

 1
17118 - STAY, MANIFOLD
17118-61030

3FE..FJ62

 1
17119 - STAY, MANIFOLD, NO.2
17139-61010

3FE..FJ62

 1
17123 - COVER, SURGE TANK
17123-61010

3FE..FJ62

 1
17125 - STAY, SURGE TANK, NO.1
17125-61010

3FE..FJ62

 2
17125 - STAY, SURGE TANK, NO.1
17125-61010

3FE..FJ62

 2
17129 - TANK, INTAKE AIR SURGE
17109-61010

3FE..FJ62

 1
17129B - PLUG
96411-43000

3FE..FJ62

 2
17129B - PLUG
96411-43000

3FE..FJ62

 2
17141 - MANIFOLD, EXHAUST
17141-61080

3FE..FJ62

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-61050

3FE..FJ62

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-12011

3FE..FJ62

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-61070

3FE..FJ62

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61030

3FE..FJ62

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-61040

3FE..FJ62

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61060

3FE..FJ62

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-61010

3FE..FJ62

 1
17303Q - HOSE(FOR PIPE TO UNION)
95333-06020

3FE..FJ62

 1
17344B - UNION(FOR AIR HOSE)
90404-54035

3FE..FJ62

 1
Common parts
90116-08108
90116-10087
90119-10038
90119-12069
90170-12211
90179-08040
90201-12004
91621-40812
91621-40830
91651-40812
91651-60816
91651-61020
92132-40825
96132-30600
