FJ62LG-PNCEW (1988)
Toyota Land Cruiser
(8808- )3FE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-61020 |
3FE..FJ62 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3FE..FJ62 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
3FE..FJ62 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-61010 |
3FE..FJ62 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-61010 |
3FE..FJ62 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
3FE..FJ62 |
4 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-61010 |
3FE..FJ62 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99555-10125 |
3FE..FJ62 *H,L=125 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90467-13001 |
3FE..FJ62 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16303-61020 |
3FE..FJ62 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03052 |
3FE..FJ62 *WAX 88-100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16304-61030 |
3FE..FJ62 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-61020 |
3FE..FJ62 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-61010 |
3FE..FJ62 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-43002 |
3FE..FJ62 |
1 | ||
| 16361 - FAN | ||||
| 16361-61020 |
3FE..FJ62 |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16360-61015 |
3FE..FJ62 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-61020 |
3FE..FJ62 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-61050 |
3FE..FJ62 |
1 | ||
| 16381C - BAR, FAN BELT ADJUSTING, NO.2 | ||||
| 17317-61020 |
3FE..FJ62 |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-61010 |
3FE..FJ62 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-61140 |
3FE..FJ62 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
3FE..FJ62 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
3FE..FJ62 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
3FE..FJ62 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-90A00 |
3FE..FJ62 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3FE..FJ62 L=600 |
1 | ||
| 90445-12065 |
3FE..FJ62 *H,L=580 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3FE..FJ62 L=600 |
1 | ||
| 90445-12065 |
3FE..FJ62 *H,L=580 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3FE..FJ62 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3FE..FJ62 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-61030 |
3FE..FJ62 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
3FE..FJ62 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-61110 |
3FE..FJ62 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3FE..FJ62 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
3FE..FJ62 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-61040 |
3FE..FJ62 RADIATOR SIDE |
1 | ||
| 16572-61020 |
3FE..FJ62 WATER PUMP SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16573-61040 |
3FE..FJ62 RADIATOR SIDE |
1 | ||
| 16572-61020 |
3FE..FJ62 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
3FE..FJ62 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
3FE..FJ62 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3FE..FJ62 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10500 |
3FE..FJ62 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-61130 |
3FE..FJ62 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61010 |
3FE..FJ62 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61010 |
3FE..FJ62 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61010 |
3FE..FJ62 |
2 | ||
| 16584A - SPACER, RADIATOR MOUNTING INSULATOR | ||||
| 90561-09005 |
3FE..FJ62 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61010 |
3FE..FJ62 |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-61010 |
3FE..FJ62 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61020 |
3FE..FJ62 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-61241 |
3FE..FJ62 |
1 | ||
| 53809B - DUCT SUB-ASSY, COOLING FAN AIR | ||||
| 53809-90A00 |
FJ62 |
1 | ||
| Common parts | ||||
| 90109-08205 | ||||
| 90119-08626 | ||||
| 90119-08646 | ||||
| 90119-08647 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90201-08135 | ||||
| 90445-11054 | ||||
| 91611-60820 | ||||
| 91611-60845 | ||||
| 91611-61025 | ||||
| 91621-40812 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 91651-60620 | ||||
| 91651-60840 | ||||

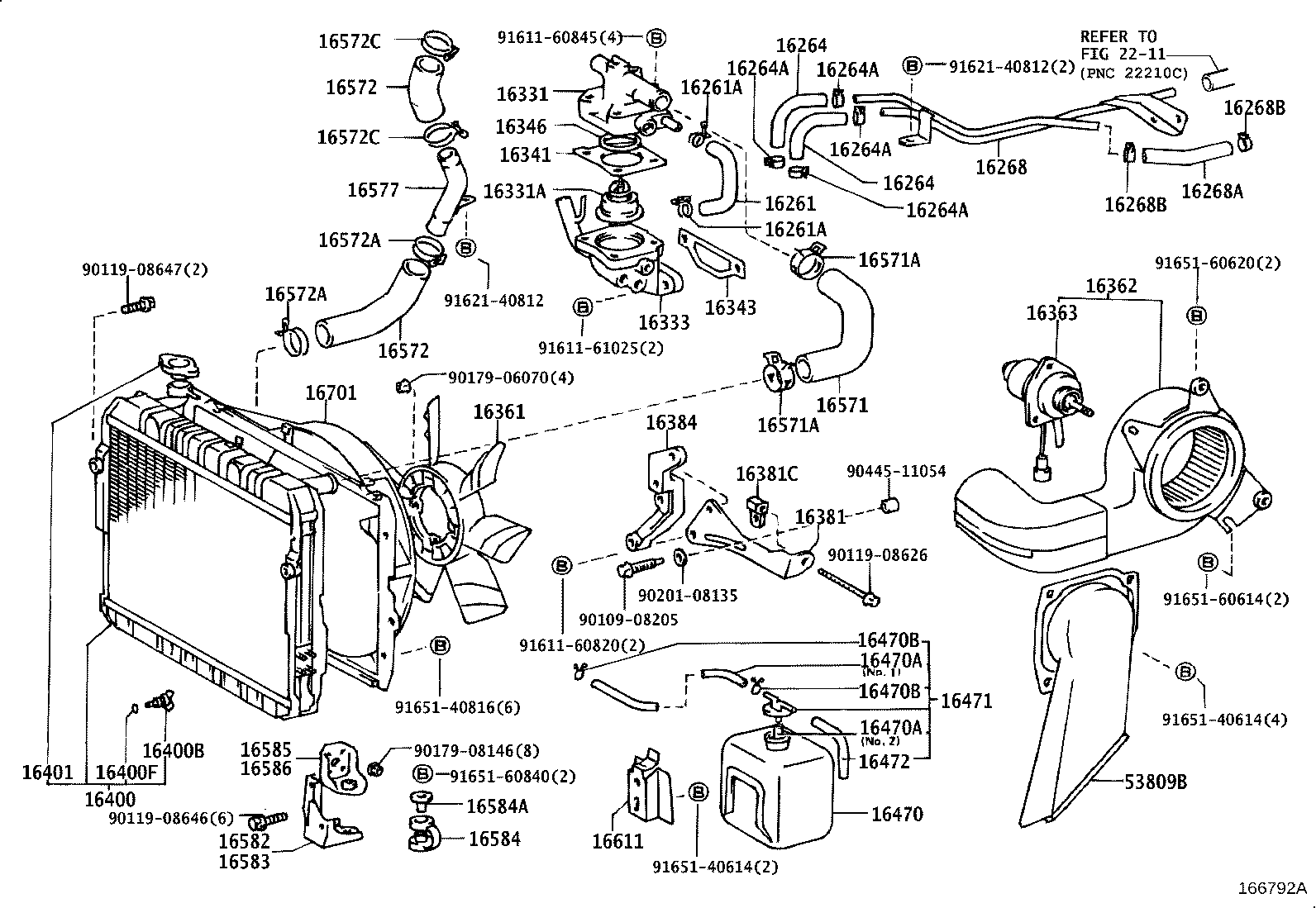

| Linked diagrams | ||||
| 2211 | ||||
