FJ62LG-PNCEW (1988)

Toyota Land Cruiser

Production Aug 1988 - Jan 1990
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3FE

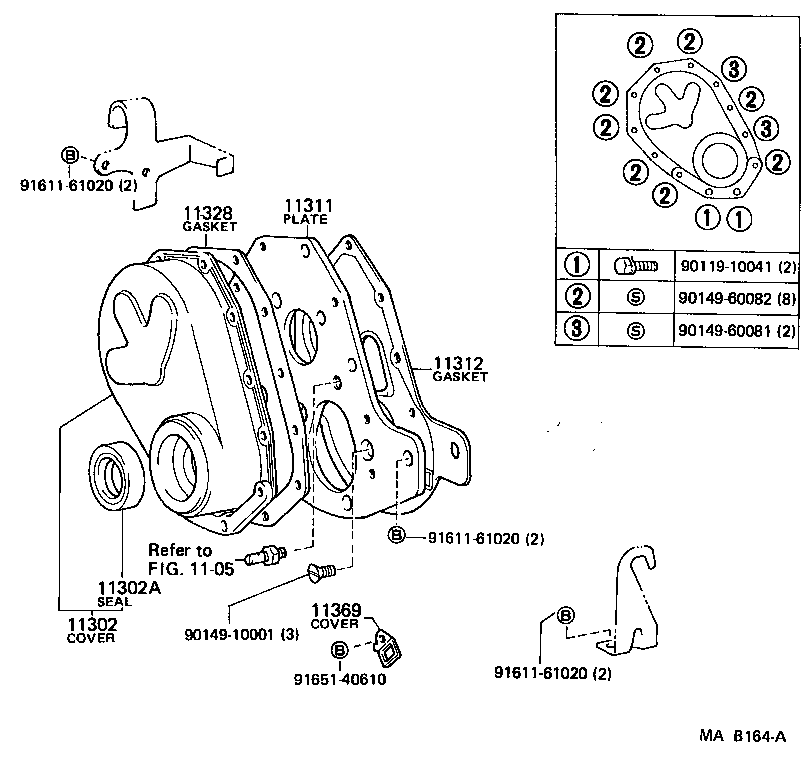

Click highlighted areas on diagram

diagram 1105 11302 11302A 11311 11312 11328 11369 9011910041 9014910001 9014960081 9014960082 9161161020 9161161020 9161161020 9165140610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-61031

3FE..FJ62

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45008

3FE..FJ62

 1
11311 - PLATE, FRONT END
11311-61020

3FE..FJ62

 1
11312 - GASKET, FRONT END PLATE
11312-61020

3FE..FJ62

 1
11312-61021

3FE..FJ62

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-61010

3FE..FJ62

 1
11369 - COVER, FLYWHEEL HOUSING FRONT
11369-60011

3FE..FJ62

 1
Common parts
90119-10041
90149-10001
90149-60081
90149-60082
91611-61020
91651-40610
Linked diagrams
1105
