FJ62LG-PCV (1985)

Toyota Land Cruiser

Production Oct 1985 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8608)

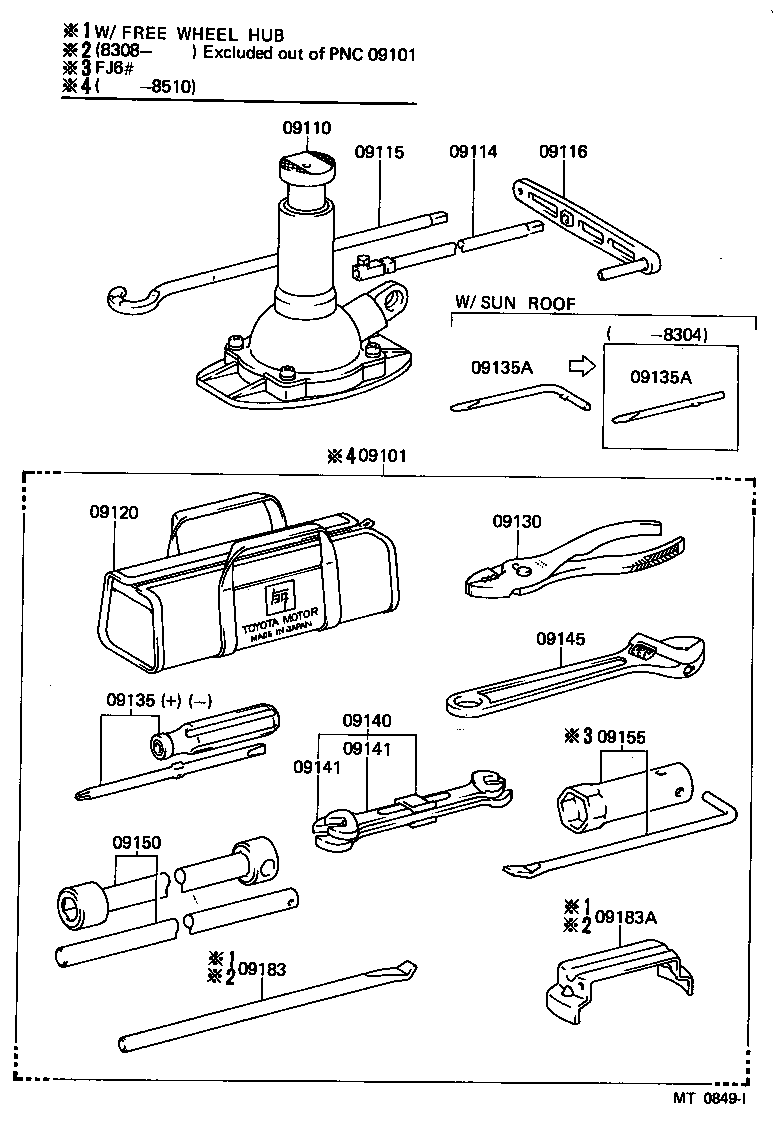

Click highlighted areas on diagram

diagram 09101 09110 09114 09115 09116 09120 09130 09135 09135A 09135A 09140 09141 09141 09145 09150 09155 09183 09183A
Part # Description Qty Price
09110 - JACK ASSY
09111-60050

BJ60,FJ62,HJ6#..EUR,GEN,ME

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

BJ60,FJ62,HJ6#

 1
09114-60030

BJ60,FJ6#,HJ60

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

BJ60,FJ62,HJ6#

 1
09115-35040

BJ60,FJ6#,HJ60

 1
09116 - LEVER, JACK HANDLE
09116-35041

BJ60,FJ6#,HJ6#

 1
09120 - BAG, TOOL
09120-60070

BJ60,FJ62,HJ6#

 1
09120-60050

BJ60,FJ6#,HJ60

 1
09120-60100

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
09130 - PLIERS
99913-11500

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
09135 - DRIVER, SCREW
99915-10700

BJ60,FJ6#,HJ6#

 1
09140 - SPANNER SET
09140-27010

BJ60,FJ6#,HJ6#

 1
09141 - SPANNER
99914-11012

BJ60,FJ6#,HJ6#

10 X 12,10X12

 1
99914-10810

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

8 X 10,8X10

 1
99914-11417

BJ60,FJ6#,HJ6#

14 X 17,14X17

 1
99914-11214

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

12 X 14,12X14

 1
09141 - SPANNER
99914-11012

BJ60,FJ6#,HJ6#

10 X 12,10X12

 1
99914-10810

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

8 X 10,8X10

 1
99914-11417

BJ60,FJ6#,HJ6#

14 X 17,14X17

 1
99914-11214

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

12 X 14,12X14

 1
09145 - WRENCH, MONKEY
99911-20250

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
99911-11200

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
99911-10250

BJ60,FJ6#,HJ6#

 1
09150 - WRENCH, HUB NUT BOX
09150-60020

BJ60,FJ62,HJ6#

 1
09150-60010

BJ60,FJ6#,HJ6#

 1
09155 - WRENCH, SPARK PLUG
09155-44010

FJ6#

 1

(8608- )

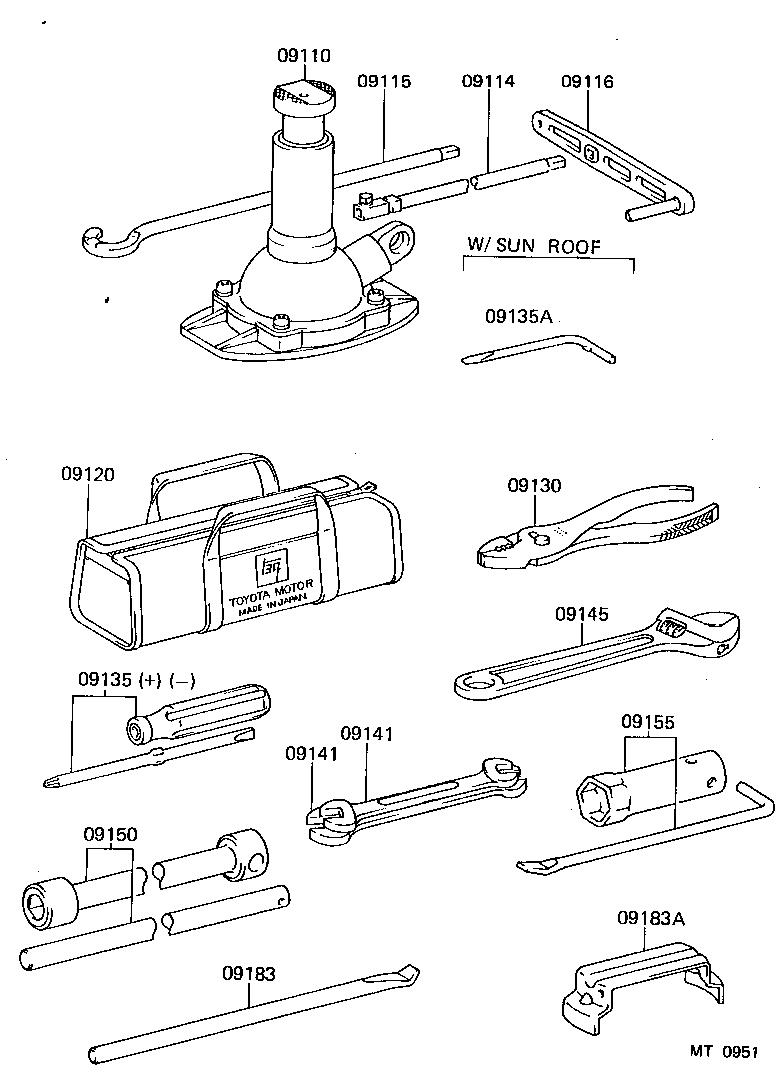

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09135A 09141 09141 09145 09150 09155 09183 09183A
Part # Description Qty Price
09110 - JACK ASSY
09111-60050

BJ60,FJ62,HJ6#..EUR,GEN,ME

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

BJ60,FJ62,HJ6#

 1
09114-60030

BJ60,FJ6#,HJ60

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

BJ60,FJ62,HJ6#

 1
09115-35040

BJ60,FJ6#,HJ60

 1
09116 - LEVER, JACK HANDLE
09116-35041

BJ60,FJ6#,HJ6#

 1
09120 - BAG, TOOL
09120-60070

BJ60,FJ62,HJ6#

 1
09120-60050

BJ60,FJ6#,HJ60

 1
09120-60100

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
09130 - PLIERS
99913-11500

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
09135 - DRIVER, SCREW
99915-10700

BJ60,FJ6#,HJ6#

 1
09141 - SPANNER
99914-11012

BJ60,FJ6#,HJ6#

10 X 12,10X12

 1
99914-10810

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

8 X 10,8X10

 1
99914-11417

BJ60,FJ6#,HJ6#

14 X 17,14X17

 1
99914-11214

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

12 X 14,12X14

 1
09141 - SPANNER
99914-11012

BJ60,FJ6#,HJ6#

10 X 12,10X12

 1
99914-10810

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

8 X 10,8X10

 1
99914-11417

BJ60,FJ6#,HJ6#

14 X 17,14X17

 1
99914-11214

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

12 X 14,12X14

 1
09145 - WRENCH, MONKEY
99911-20250

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
99911-11200

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
99911-10250

BJ60,FJ6#,HJ6#

 1
09150 - WRENCH, HUB NUT BOX
09150-60020

BJ60,FJ62,HJ6#

 1
09150-60010

BJ60,FJ6#,HJ6#

 1
09155 - WRENCH, SPARK PLUG
09155-44010

FJ6#

 1
