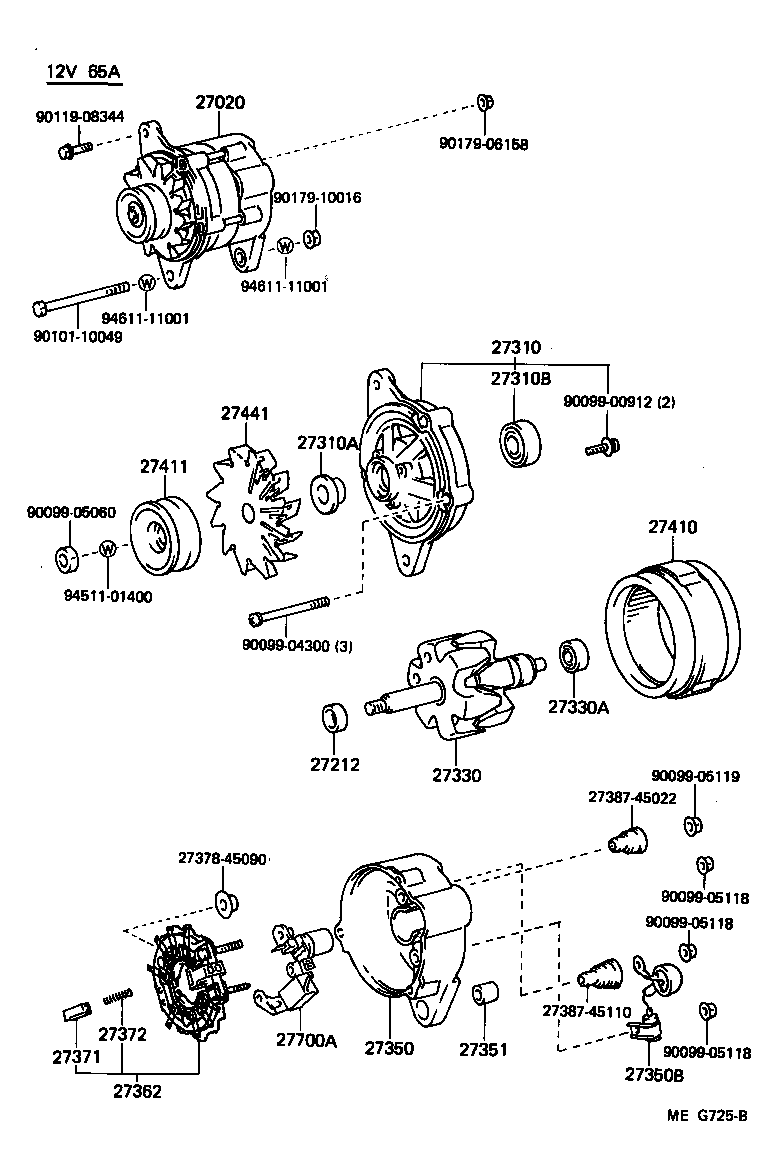

FJ62LG-P (1984)
Toyota Land Cruiser
(8008-8510)2F,3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-61110 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A,12V 45A |
1 | ||
| 27060-61060 |
3F..FJ62 12V 65A,12V 65A |
1 | ||
| 27020-61110 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A,12V 45A |
1 | ||
| 27020-61033 |
2F,3F..FJ6#..GEN,ME 12V 50A,12V 50A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-18011 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27039-15010 |
2F,3F..FJ6# 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27412-45070 |
2F,3F..FJ6# 12V 50A,55A,65A |
1 | ||
| 27412-15150 |
3F..FJ62 12V 50A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27310-26101 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27310-38061 |
3F..FJ62 12V 65A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
2F,3F..FJ6# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
2F,3F..FJ6# 12V 40A,45A,50A |
1 | ||
| 90099-10125 |
3F..FJ62 12V 65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A |
1 | ||
| 27330-26050 |
2F,3F..FJ6# 12V 40A |
1 | ||
| 27330-45070 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27330-45020 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27330-43040 |
3F..FJ62 12V 65A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 90099-10116 |
3F..FJ62 12V 65A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-13050 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27359-24100 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
3F..FJ62 12V 40A,45A |
1 | ||
| 27362-15021 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27362-72080 |
3F..FJ62 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
2F,3F..FJ6# 12V 40A |
1 | ||
| 27410-38120 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A |
1 | ||
| 27410-41080 |
2F,3F..FJ6#..EUR,GEN,ME 12V 50A,55A |
1 | ||
| 27410-43040 |
3F..FJ62..GEN 12V 65A |
1 | ||
| 27410-38120 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
2F,3F..FJ6# 12V 40A,45A,50A,55A |
1 | ||
| 27411-61190 |
3F..FJ62 12V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27441-34111 |
3F..FJ62 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
3B,3F,2H..BJ60,FJ62,HJ60..ARL,GEN,ME 12V,STD TYPE |
1 | ||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME 12V,STD TYPE |
1 | ||
| 27700-63030 |
3F..FJ62 12V,IC TYPE |
1 | ||
| Common parts | ||||
| 27063-45020 | ||||
| 27064-45020 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 27447-24061 | ||||
| 90099-00912 | ||||
| 90099-00933 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10131 | ||||
| 90119-08344 | ||||
| 90179-10033 | ||||
| 93229-14012 | ||||
| 93315-15014 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
(8510- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-61110 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A,12V 45A |
1 | ||
| 27060-61060 |
3F..FJ62 12V 65A,12V 65A |
1 | ||
| 27020-61110 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A,12V 45A |
1 | ||
| 27020-61033 |
2F,3F..FJ6#..GEN,ME 12V 50A,12V 50A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27412-45070 |
2F,3F..FJ6# 12V 50A,55A,65A |
1 | ||
| 27412-15150 |
3F..FJ62 12V 50A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-18010 |
2F,3F..FJ6# 12V 40A,45A |
1 | ||
| 27310-26101 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27310-38061 |
3F..FJ62 12V 65A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
2F,3F..FJ6# 12V 40A,45A,50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
2F,3F..FJ6# 12V 40A,45A,50A |
1 | ||
| 90099-10125 |
3F..FJ62 12V 65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45020 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A |
1 | ||
| 27330-26050 |
2F,3F..FJ6# 12V 40A |
1 | ||
| 27330-45070 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27330-45020 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27330-43040 |
3F..FJ62 12V 65A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 90099-10116 |
3F..FJ62 12V 65A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27359-72040 |
3F..FJ62 12V 65A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-18011 |
3F..FJ62 12V 40A,45A |
1 | ||
| 27362-15021 |
2F,3F..FJ6#..GEN,ME 12V 50A |
1 | ||
| 27362-72080 |
3F..FJ62 12V 65A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
2F,3F..FJ6# 12V 40A,45A,50A,55A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-38120 |
2F,3F..FJ6# 12V 40A |
1 | ||
| 27410-38120 |
2F..FJ60..LUB;3F..FJ62..HRF;2F..FJ60..HRF..SOB;3F..FJ62..SRF..LUB 12V 45A |
1 | ||
| 27410-41080 |
2F,3F..FJ6#..EUR,GEN,ME 12V 50A,55A |
1 | ||
| 27410-43040 |
3F..FJ62..GEN 12V 65A |
1 | ||
| 27410-38120 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-60032 |
2F,3F..FJ6# 12V 40A,45A,50A,55A |
1 | ||
| 27411-61190 |
3F..FJ62 12V 65A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
3F..FJ62..LUB..GEN;3F..FJ62..WGG..SOB;3F..FJ62..HRF..LUB..ME 12V 45A |
1 | ||
| 27441-34111 |
3F..FJ62 12V 65A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-15030 |
3B,3F,2H..BJ60,FJ62,HJ60..ARL,GEN,ME 12V,STD TYPE |
1 | ||
| 27700-15020 |
3B,3F,2H..BJ60,FJ62,HJ60..GEN,ME 12V,STD TYPE |
1 | ||
| 27700-63030 |
3F..FJ62 12V,IC TYPE |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
