FJ62LG-P (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

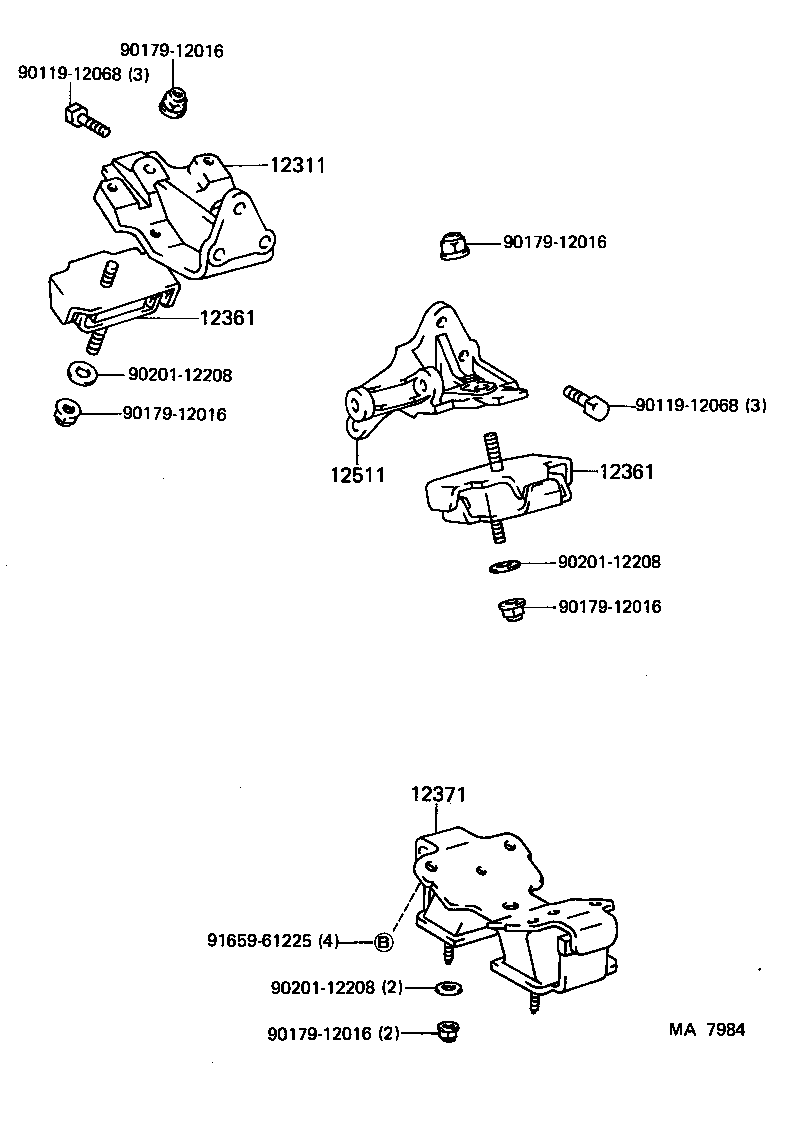

Click highlighted areas on diagram

diagram 12311 12361 12361 12371 12511 9011912068 9011912068 9017912016 9017912016 9017912016 9017912016 9017912016 9020112208 9020112208 9020112208 9165961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-61070

3F..FJ62

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61030

3F..FJ62

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61030

3F..FJ62

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61040

3F..FJ62..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61030

3F..FJ62

 1
Common parts
90119-12068
90179-12016
90201-12208
91659-61225
