FJ62LG-MZV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

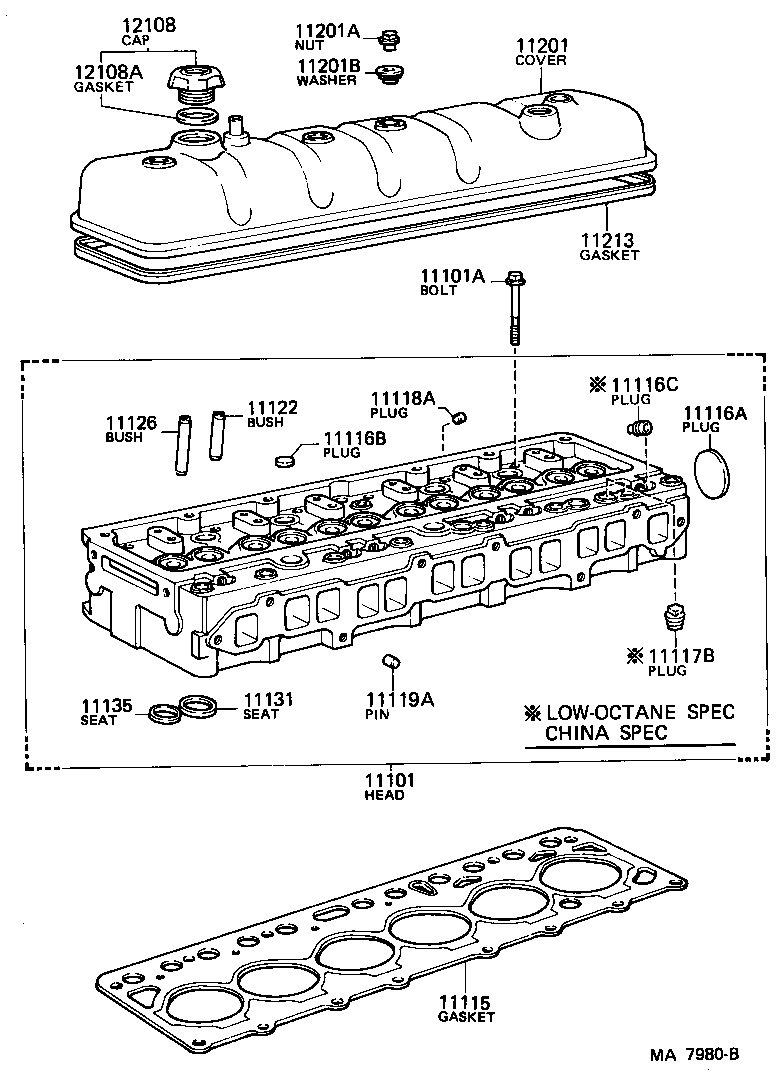

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11117B 11118A 11119A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-61060

3F..FJ62..ARL,ME

 1
11101-61050

3F..FJ62..ME

*47

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02050

2F,3F..FJ6#

*13-1.75PX120.5-27

 15
11115 - GASKET, CYLINDER HEAD
11115-61020

3F..FJ62

T=1.40

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

2F,3F..FJ6#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

2F,3F..FJ6#

OD=25

 6
11119A - PIN, STRAIGHT, NO.1
90250-08120

3F..FJ62

L=18,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-61011

2F,3F..FJ6#

STD,STD

 6
11123-61011

2F,3F..FJ6#

O/S 0.05,O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-61011

2F,3F..FJ6#

STD,STD

 6
11127-61011

2F,3F..FJ6#

O/S 0.05,O/S 0.05

 6
11135 - SEAT, EXHAUST VALVE
11136-60030

3F..FJ62

O/S 0.03,O/S 0.03

 6
11135-60010

3F..FJ62

STD,STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-61040

3F..FJ62

 1
11201-61041

3F..FJ62

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

2F,3F..FJ6#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

2F,3F..FJ6#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-61020

3F..FJ62

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-71010

3F..FJ62

 1
12180-71011

3F..FJ62

 1
12180-61010

3F..FJ62

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71010

3F..FJ62

 1
12195-71020

3F..FJ62

 1
