FJ62LG-MZ (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1987
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

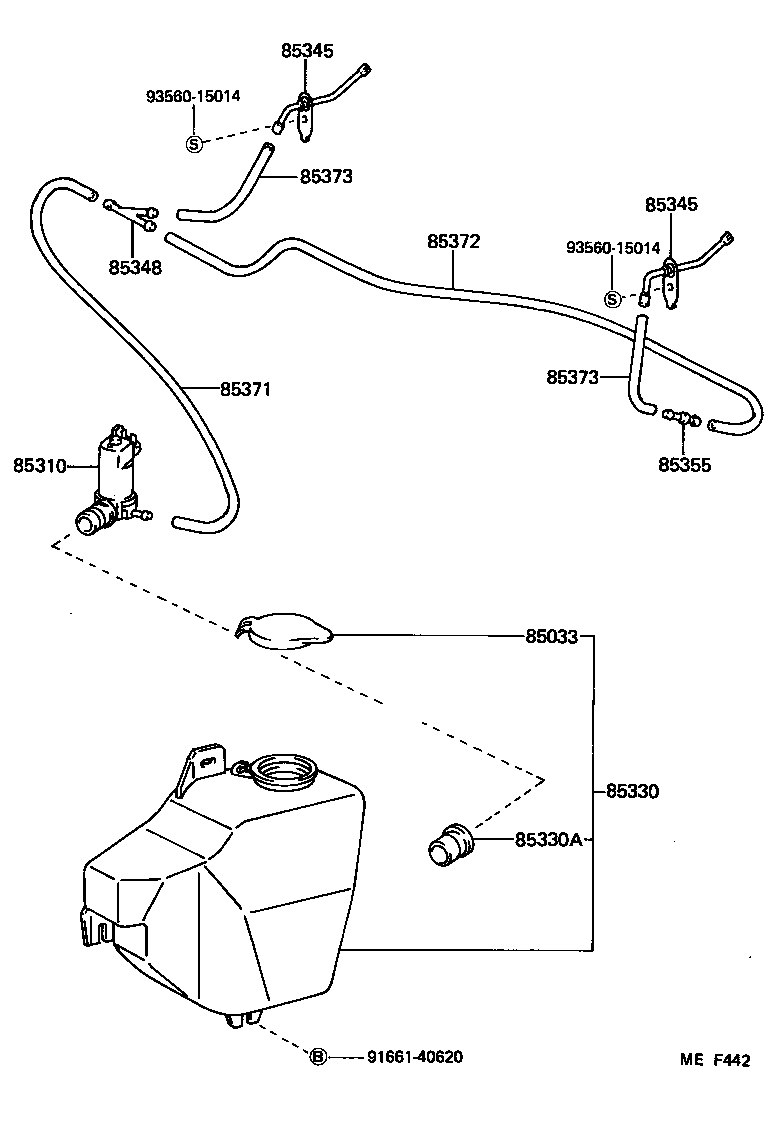

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-90A00 |
BJ60,FJ6#,HJ6# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-90A01 |
BJ60,FJ6#,HJ6# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
BJ60,FJ6#,HJ6# |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-90A03 |
BJ60,FJ62,HJ60..MTM LH |
1 | ||
| 85341-90A06 |
BJ60,FJ62,HJ60..MTM RH |
1 | ||
| 85341-90A07 |
FJ62..MTM..GEN RH,COLD SPEC |
1 | ||
| 85341-90A04 |
FJ62..MTM..GEN LH,COLD SPEC |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-90A03 |
BJ60,FJ62,HJ60..MTM LH |
1 | ||
| 85341-90A06 |
BJ60,FJ62,HJ60..MTM RH |
1 | ||
| 85341-90A07 |
FJ62..MTM..GEN RH,COLD SPEC |
1 | ||
| 85341-90A04 |
FJ62..MTM..GEN LH,COLD SPEC |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-30010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
FJ62..MTM..GEN *H,L=530,COLD SPEC |
1 | ||
| 90446-06013 |
BJ60,FJ62,HJ60..MTM *H,L=540 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
FJ62..MTM..GEN *H,L=640,COLD SPEC |
1 | ||
| 90446-06013 |
BJ60,FJ62,HJ60..MTM *H,L=600 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
FJ62..MTM..GEN *H,L=145,COLD SPEC |
2 | ||
| 90446-06013 |
BJ60,FJ62,HJ60..MTM *H,L=140 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
FJ62..MTM..GEN *H,L=145,COLD SPEC |
2 | ||
| 90446-06013 |
BJ60,FJ62,HJ60..MTM *H,L=140 |
2 | ||
| Common parts | ||||
| 91661-40620 | ||||
| 93560-15014 | ||||
