FJ62LG-MZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62..GEN

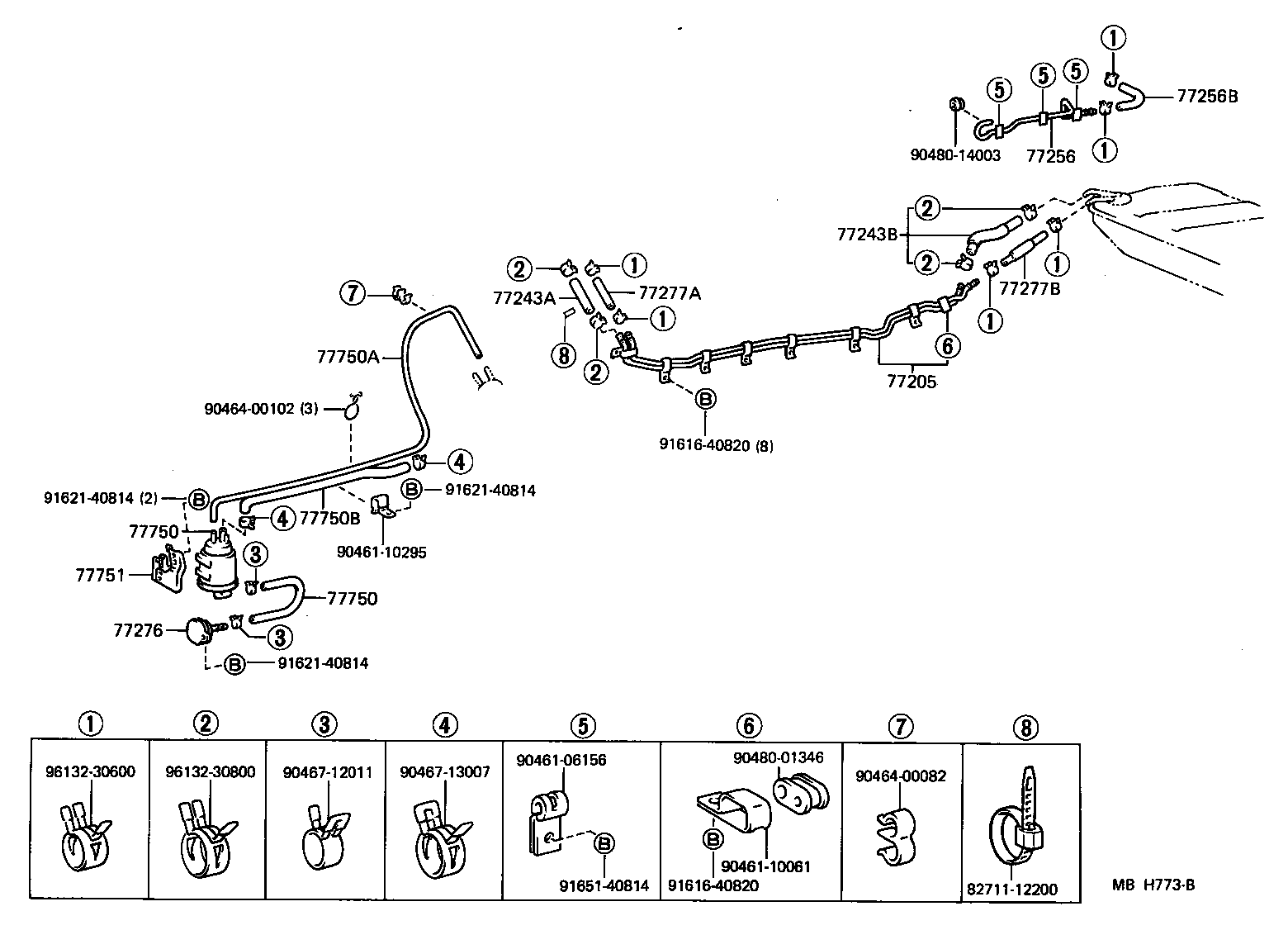

Click highlighted areas on diagram

diagram 77205 77243A 77243B 77256 77256B 77276 77277A 77277B 77750 77750 77750A 77750B 77751 8271112200 9046106156 9046110061 9046110295 9046400082 9046400102 9046712011 9046713007 9048001346 9048014003 9161640820 9161640820 9162140814 9162140814 9162140814 9165140814 9613230600 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60062

FJ62

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08040

FJ6#

*H,L=380,ID=7.6

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77276 - PROTECTOR, FUEL HOSE
77276-60020

FJ62

 2
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-61020

FJ62

 1
77250-60070

FJ62

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

FJ62

*H,L=260

 1
95333-06030

FJ62

*H,L=260

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60070

FJ62

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60070

FJ62

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
90445-07066

FJ62..GEN

*H,L=1050

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90910-05177

FJ62..LHD..GEN

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60080

FJ62

 1
Common parts
82711-12200
90461-06156
90461-10061
90461-10295
90464-00082
90464-00102
90467-12011
90467-13007
90480-01346
90480-14003
91616-40820
91621-40814
91651-40814
96132-30600
96132-30800
