FJ62LG-MZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

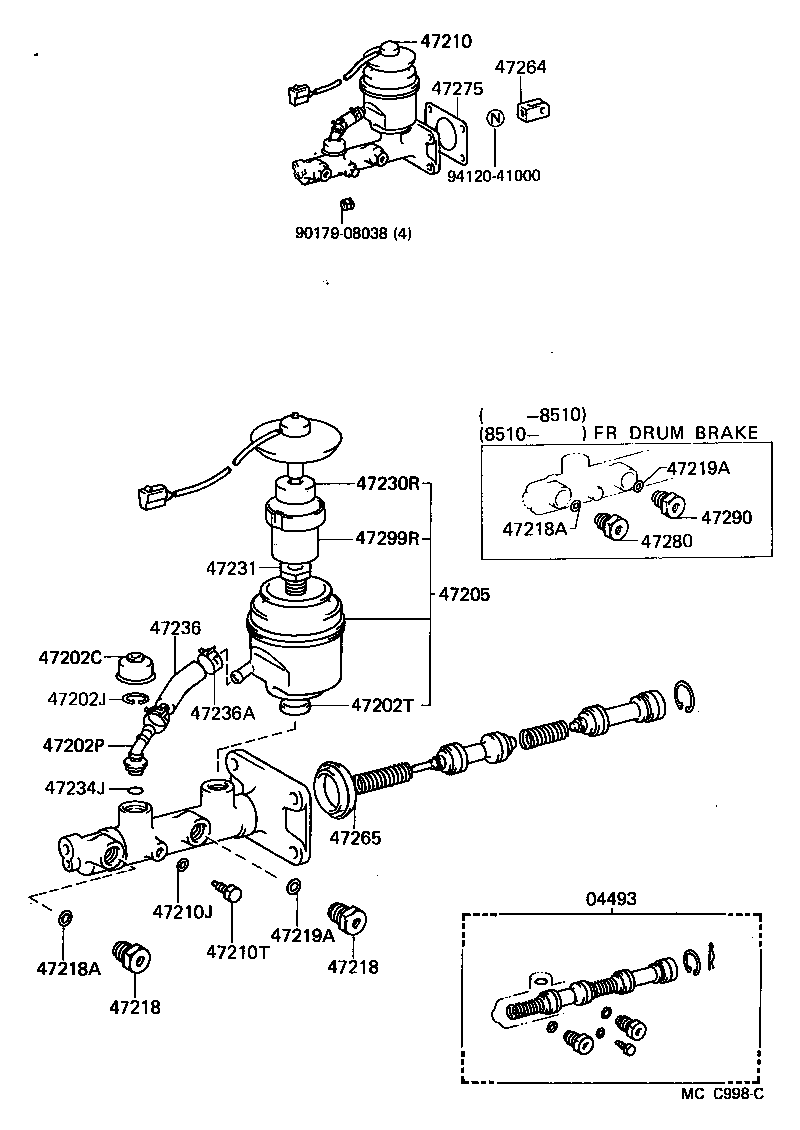

Click highlighted areas on diagram

diagram 04493 47202C 47202J 47202P 47202T 47205 47210 47210J 47210T 47218 47218 47218A 47218A 47219A 47219A 47230R 47231 47234J 47236 47236A 47264 47265 47275 47280 47290 47299R 9017908038 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-60130

FJ62..LHD..GEN

FR DRUM BRAKE

 1
04493-60160

FJ62..LHD

FR DISC BRAKE

 1
47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
47265-20060

BJ60,FJ6#,HJ6#

 1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
96151-02000

BJ60,FJ6#,HJ6#

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90407-10004

FJ62..LHD

 1
47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
90562-18151

FJ62..LHD

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-60070

FJ62..LHD

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-60330

FJ62..LHD..GEN

FR DRUM BRAKE

 1
47201-60290

FJ62..LHD

FR DISC BRAKE

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

BJ60,FJ6#,HJ6#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

BJ60,FJ6#,HJ6#

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-12040

BJ60,FJ62,HJ6#

FR DISC BRAKE

 2
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-12040

BJ60,FJ62,HJ6#

FR DISC BRAKE

 2
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

BJ60,FJ6#,HJ6#

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

BJ60,FJ6#,HJ6#

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253

BJ60,FJ6#,HJ6#

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253

BJ60,FJ6#,HJ6#

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-20051

BJ60,FJ6#,HJ6#

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-20010

FJ62..LHD

 1
47234J - RING, O(FOR RESERVOIR TUBE)
90301-14001

BJ60,FJ6#,HJ6#

 1
47236 - TUBE, RESERVOIR BRAKE
47234-14010

BJ60,FJ62,HJ6#

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

BJ60,FJ6#,HJ6#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

BJ60,FJ6#,HJ6#

 1
47264-22010

BJ60,FJ62,HJ6#..EUR,GEN,ME

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

BJ60,FJ6#,HJ6#

FR DISC BRAKE

 1
47265-35030

BJ60,FJ6#,HJ60..GEN

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-22010

BJ60,FJ62,HJ6#

FR DISC BRAKE

 1
47275-24010

BJ60,FJ62,HJ60..GEN

FR DRUM BRAKE

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-14010

FJ62..LHD

 1
47280-14010

FJ62..LHD..GEN

FR DRUM BRAKE

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-14010

FJ62..LHD

 1
47280-14010

FJ62..LHD..GEN

FR DRUM BRAKE

 1
Common parts
90179-08038
94120-41000
