FJ62LG-MV (1984)
Toyota Land Cruiser

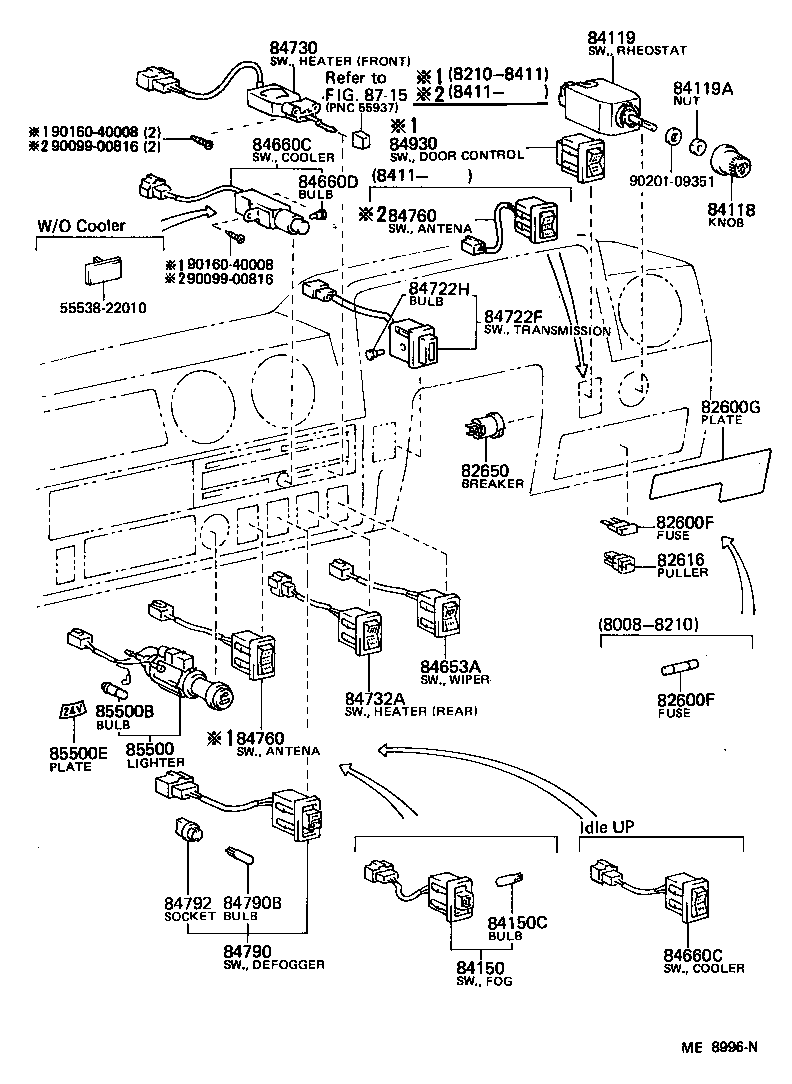

(8008-8510)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90A09 |
FJ62 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BJ60,FJ62,HJ6# 30A,30A |
2 | ||
| 82650-12020 |
FJ62,HJ6#..ARL,GEN,ME 14A,14A |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90A00 |
FJ6#,HJ60..LUB;FJ60..LHD..4F..SRF..SOB..GEN |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 88610-90A07 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660-22021 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 88610-90A07 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660-22021 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 90981-11024 |
BJ60,FJ6#,HJ60..ARL,GEN,ME 12V 1.4W |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60070 |
FJ62,HJ6#..ARL,GEN,ME *ELC |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
FJ62,HJ6#..ARL,GEN,ME 12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A00 |
BJ60,FJ6#,HJ6# FR HEATER |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90A00 |
HJ61;FJ62,HJ60..WGG;HJ60..SRF..SOB..EUR W/SPARATE SEAT |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-90A00 |
BJ60,FJ62;HJ60..ARL |
1 | ||
| 84760-90A00 |
FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-90A00 |
BJ60,FJ62;HJ60..ARL |
1 | ||
| 84760-90A00 |
FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A06 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V |
1 | ||
| 84790-90A02 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) 12V |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V 1.4W,12V 1.4W |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-90A0203 |
FJ62,HJ6#..WGG W/O *PW,GRAY,GRAY,TRIM1# |
1 | ||
| 84930-90A0206 |
FJ62,HJ6#..WGG W/O *PW,BROWN,BROWN,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95403 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 14V 1.4W,12V 1.4W |
1 | ||
| Common parts | ||||
| 55538-22010 | ||||
| 90099-00816 | ||||
| 90160-40008 | ||||
| 90201-09351 | ||||
| Linked diagrams | ||||
| 8715 | ||||

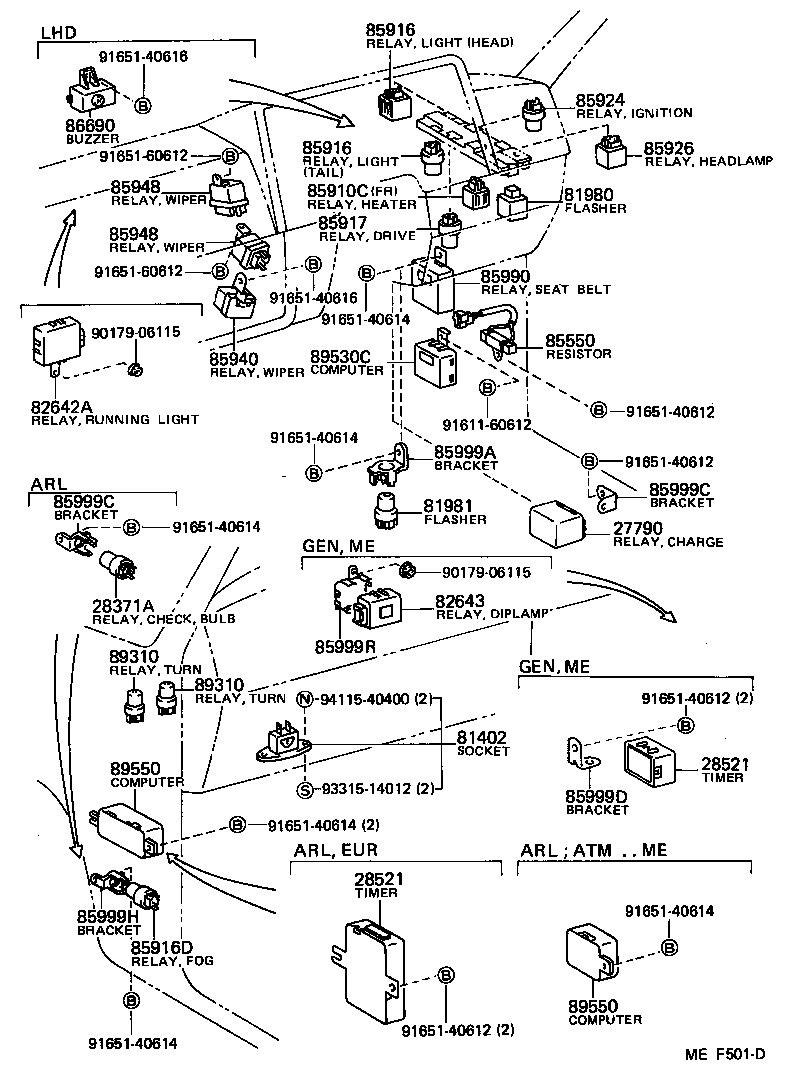

(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
12HT,3F,2H..FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 81402 - SOCKET SUB-ASSY, INSPECTION LAMP, NO.1 | ||||
| 81402-29016 |
BJ60,FJ6#,HJ6# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME 12V |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V,FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V,HEAD |
1 | ||
| 90987-01003 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V,TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V,HEAD |
1 | ||
| 90987-01003 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V,TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02004 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A04 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) 12V |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-60040 |
BJ60,FJ62..ME W/SEAT BELT WARNING |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-89101 |
FJ62,HJ6#..ARL,GEN,ME CHARGE LAMP RELAY |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-89101 |
FJ62,HJ6#..ARL,GEN,ME CHARGE LAMP RELAY |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22090 |
FJ62..ME |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60140 |
FJ62..5F..ME |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-60140 |
FJ62..5F..ME |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60612 | ||||
| 93315-14012 | ||||
| 94115-40400 | ||||

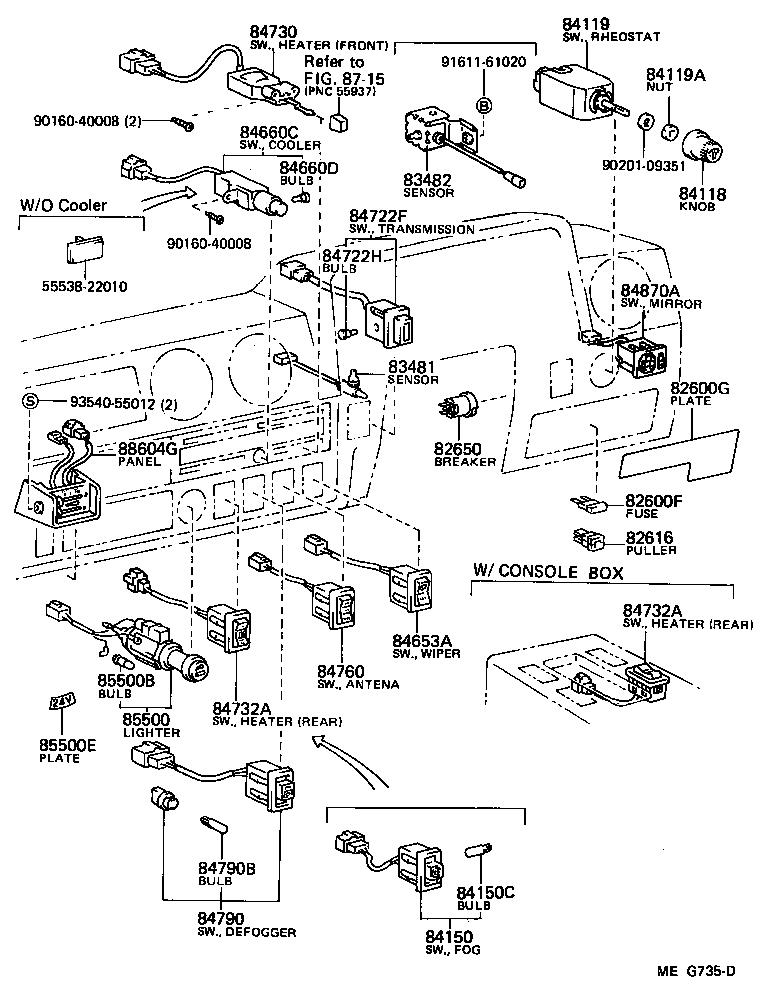

(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90A09 |
FJ62 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BJ60,FJ62,HJ6# 30A,30A |
2 | ||
| 82650-12020 |
FJ62,HJ6#..ARL,GEN,ME 14A,14A |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90K00 |
HJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME) |
1 | ||
| 83481-90K00 |
FJ62,HJ6#..WGG |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90A00 |
HJ60..MTM..LUB..(ARL,GEN);FJ62,HJ61..WGG..(ARL,GEN,ME) W/O WINCH |
1 | ||
| 83482-90A01 |
FJ62,HJ60..WGG..(GEN,ME) W/WINCH |
1 | ||
| 83482-90A00 |
FJ62,HJ6#..WGG W/O WINCH |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90A00 |
FJ6#,HJ60..LUB;FJ60..LHD..4F..SRF..SOB..GEN |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 88610-90A07 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660-22021 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 90981-11024 |
BJ60,FJ6#,HJ60..ARL,GEN,ME 12V 1.4W |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60070 |
FJ62,HJ6#..ARL,GEN,ME *ELC |
1 | ||
| 84722H - BULB, TRANSMISSION CONTROL SWITCH | ||||
| 84999-10170 |
FJ62,HJ6#..ARL,GEN,ME 12V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A00 |
BJ60,FJ6#,HJ6# FR HEATER |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90A00 |
HJ61;FJ62,HJ60..WGG;HJ60..SRF..SOB..EUR W/SPARATE SEAT |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90A00 |
HJ61;FJ62,HJ60..WGG;HJ60..SRF..SOB..EUR W/SPARATE SEAT |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-90A00 |
BJ60,FJ62;HJ60..ARL |
1 | ||
| 84760-90A00 |
FJ62,HJ6#..ARL,GEN,ME |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A06 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V |
1 | ||
| 84790-90A02 |
BJ60,FJ62,HJ60..LHD..(GEN,ME) 12V |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V 1.4W,12V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-14060 |
FJ62,HJ6#..WGG..(ARL,GEN,ME) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95403 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 12V |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
BJ60,FJ62,HJ6#..ARL,GEN,ME 14V 1.4W,12V 1.4W |
1 | ||
| Common parts | ||||
| 55538-22010 | ||||
| 90160-40008 | ||||
| 90201-09351 | ||||
| 91611-61020 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 8715 | ||||
