FJ62LG-MV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62..MTM

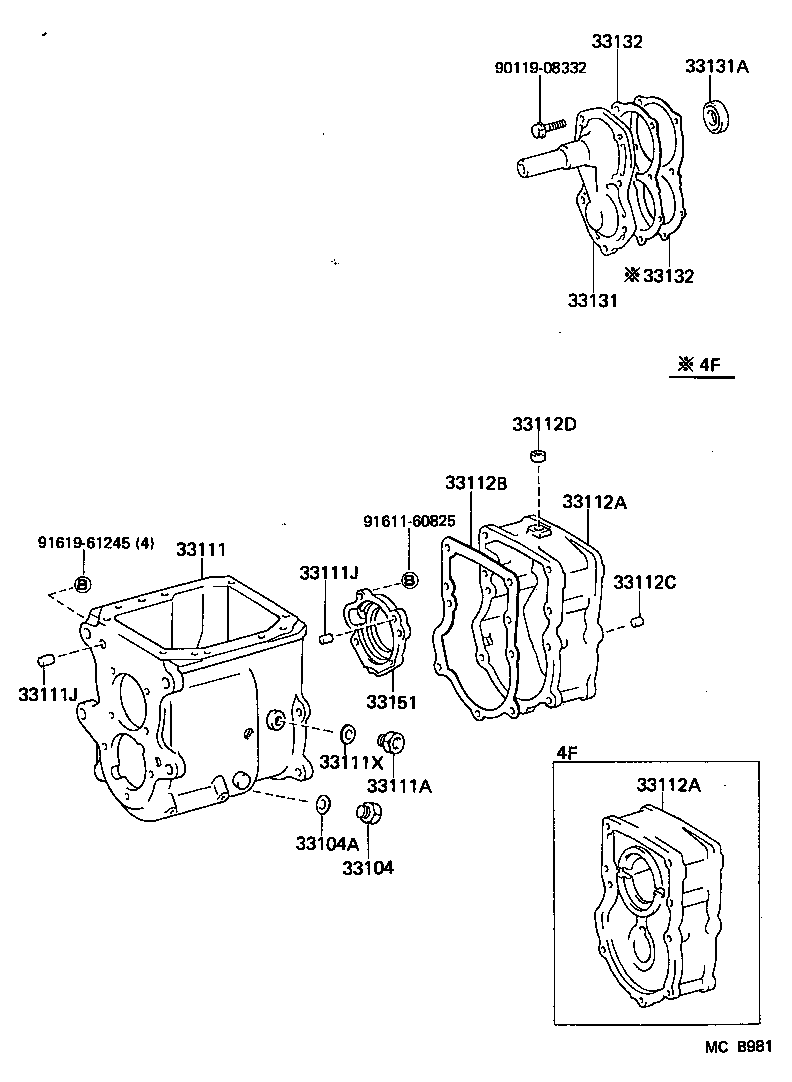

Click highlighted areas on diagram

diagram 33104 33104A 33111 33111A 33111J 33111J 33111X 33112A 33112A 33112B 33112C 33112D 33131 33131A 33132 33132 33151 9011908332 9161160825 9161961245
Part # Description Qty Price
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

BJ60,FJ6#,HJ6#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-60070

BJ60,FJ62,HJ60..MTM

 1
33111-60080

BJ60,FJ62,HJ6#..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BJ60,FJ6#,HJ6#..MTM

L=17,OD=12,L=17,OD=12

 2
90250-12216

BJ60,FJ6#,HJ6#..MTM

L=14,OD=12,L=14,OD=12

 2
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12146

BJ60,FJ6#,HJ6#..MTM

L=17,OD=12,L=17,OD=12

 2
90250-12216

BJ60,FJ6#,HJ6#..MTM

L=14,OD=12,L=14,OD=12

 2
33112A - ADAPTER, TRANSFER
36117-60010

FJ62..ME

W/POSITION INDICATOR SWITCH

 1
36117-60021

BJ60,FJ62,HJ6#..5F

 1
36117-60011

FJ62..ME

W/POSITION INDICATOR SWITCH

 1
36117-60020

BJ60,FJ62,HJ6#..5F

 1
33112A - ADAPTER, TRANSFER
36117-60010

FJ62..ME

W/POSITION INDICATOR SWITCH

 1
36117-60021

BJ60,FJ62,HJ6#..5F

 1
36117-60011

FJ62..ME

W/POSITION INDICATOR SWITCH

 1
36117-60020

BJ60,FJ62,HJ6#..5F

 1
33112B - GASKET, TRANSFER ADAPTER
33142-60020

BJ60,FJ62,HJ60..MTM

 1
33112C - PIN, STRAIGHT(FOR TRANSFER ADAPTER)
90250-12216

BJ60,FJ62,HJ6#..MTM

 2
33112D - SEAL, OIL(FOR TRANSFER ADAPTER)
90312-17001

BJ60,FJ62,HJ6#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-60040

FJ62,HJ6#..MTM

 1
33131-60020

FJ6#,HJ60..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-28004

BJ60,FJ6#,HJ60..MTM

 1
90311-32013

BJ60,FJ62,HJ6#..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-36010

BJ60,FJ6#,HJ60..MTM

 2
33132-60020

BJ60,FJ62,HJ6#..MTM

 2
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-36010

BJ60,FJ6#,HJ60..MTM

 2
33132-60020

BJ60,FJ62,HJ6#..MTM

 2
Common parts
90119-08332
91611-60825
91619-61245
