FJ62LG-MV (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

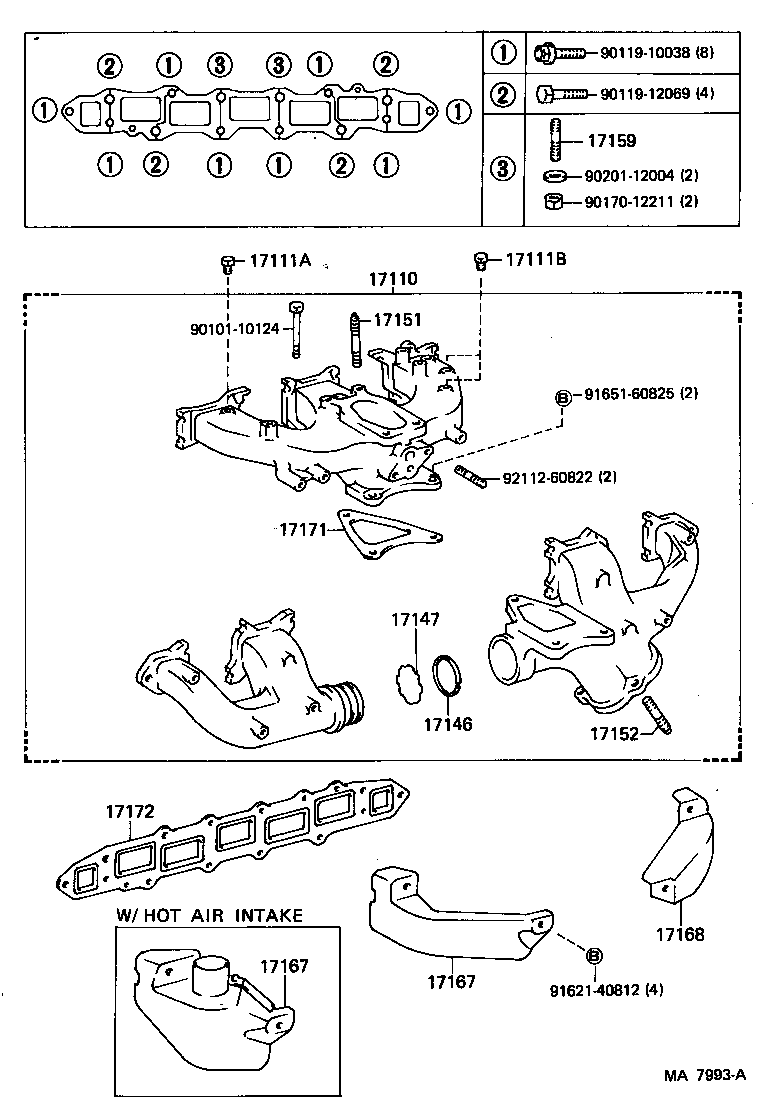

Click highlighted areas on diagram

diagram 17110 17111A 17111B 17146 17147 17151 17152 17159 17167 17167 17168 17171 17172 9010110124 9011910038 9011912069 9017012211 9020112004 9162140812 9165160825 9211260822
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-61100

3F..FJ62

 1
17111A - PLUG, NO.1
90345-51025

3F..FJ62..5F..ME

*47

 1
17111B - PLUG, NO.2
90345-51025

3F..FJ62

 2
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08042

2F,3F..FJ6#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

3F..FJ62

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-61040

3F..FJ62

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-61040

3F..FJ62

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61020

3F..FJ62

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61020

3F..FJ62

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61050

3F..FJ62

 1
Common parts
90101-10124
90119-10038
90119-12069
90170-12211
90201-12004
91621-40812
91651-60825
92112-60822
