FJ62LG-K (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )LHD

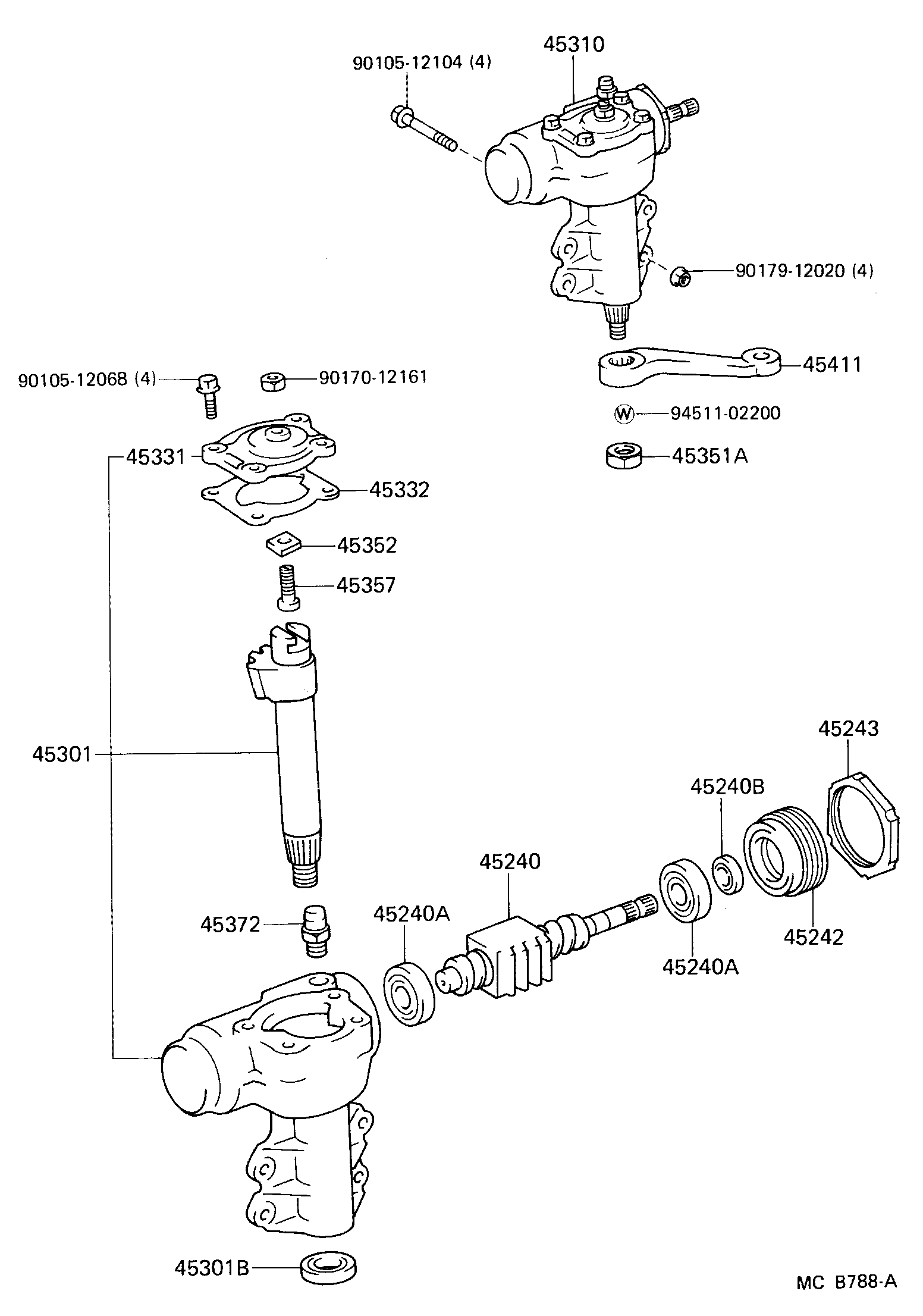

Click highlighted areas on diagram

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45411 9010512068 9010512104 9017012161 9017912020 9451102200
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-60030

BJ60,FJ62,HJ6#..LHD

 1
45240-60030

BJ60,FJ62..LHD

 1
45240A - BEARING(FOR STEERING WORM)
90363-20024

BJ60,FJ62,HJ6#..ARL,GEN,ME

 2
45240A - BEARING(FOR STEERING WORM)
90363-20024

BJ60,FJ62,HJ6#..ARL,GEN,ME

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18010

BJ60,FJ62;HJ60..MTM..(ARL,GEN)

 1
90311-18001

BJ60,FJ62,HJ60..ARL,GEN,ME

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-60020

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-60020

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-60070

BJ60,FJ62,HJ6#..LHD

 1
45301-60070

BJ60,FJ62..LHD

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90310-36002

HJ60..MTM..(ARL,GEN);BJ60,FJ62,HJ61..ARL,GEN,ME

 1
90310-36001

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-60100

BJ60,FJ62..LHD

 1
45310-60100

BJ60,FJ62,HJ6#..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-26010

BJ60,FJ62,HJ6#..ARL,GEN,ME

MARK:1

 1
45304-26040

BJ60,FJ62,HJ6#..ARL,GEN,ME

MARK:4

 1
45304-26020

BJ60,FJ62,HJ6#..ARL,GEN,ME

MARK:2

 1
45304-26030

BJ60,FJ62,HJ6#..ARL,GEN,ME

MARK:3

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-26010

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45352 - WASHER, SECTOR SHAFT THRUST
45353-37010

BJ60,FJ62,HJ6#..ARL,GEN,ME

T=2.00,T=2.00

 1
45354-37010

BJ60,FJ62,HJ6#..ARL,GEN,ME

T=2.05,T=2.05

 1
45352-37010

BJ60,FJ62,HJ6#..ARL,GEN,ME

T=1.95,T=1.95

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-36010

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

BJ60,FJ62,HJ6#..ARL,GEN,ME

 1
Common parts
90105-12068
90105-12104
90170-12161
90179-12020
94511-02200

(8411- )LHD

Click highlighted areas on diagram

diagram 04044 04445 04455A 44110 44111A 44251 9010512104 9017912020 9451102200
Part # Description Qty Price
04044 - WARM KIT, POWER STEERING
04044-60070

BJ60,FJ62,HJ60..LHD

 1
04044-60110

BJ60,FJ62,HJ6#..LHD

 1
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-60030

BJ60,FJ62,HJ6#

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-60020

BJ60,FJ62,HJ6#

 1
44110 - GEAR ASSY, POWER STEERING
44110-60120

BJ60,FJ62,HJ60..LHD

 1
44110-60121

BJ60,FJ62,HJ6#..LHD

 1
44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
90170-22058

BJ60,FJ6#,HJ6#

 1
Common parts
90105-12104
90179-12020
94511-02200

(8411- )LHD

Click highlighted areas on diagram

diagram 44101D 44101H 44101J 44101J 44104 44105 44105A 44105B 44107 44107A 44107A 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44114C 44115 44116 44141A 44141B 44141C 44142 44142A 44210 44257 44257A 9011910070 9011910070 9015950010 9017010208
Part # Description Qty Price
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60,FJ62,HJ6#

 2
44101J - RING(FOR STEERING WORM)
90562-48001

BJ60,FJ62,HJ6#

 2
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-60060

BJ60,FJ62,HJ6#..LHD

 1
44111 - SHAFT, CROSS
44111-60040

BJ60,FJ62,HJ6#

 1
44115 - GUIDE, BALL
44115-22020

BJ60,FJ62,HJ6#..LHD

 2
44116 - CLAMP, BALL GUIDE
44116-22020

BJ60,FJ62,HJ6#..LHD

 1
44141C - BEARING(FOR ADJUSTER PLUG)
90369-22004

BJ60,FJ62,HJ6#

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44120-60050

BJ60,FJ62,HJ60..LHD

 1
44120-60090

BJ60,FJ62,HJ6#..LHD

 1
Common parts
90119-10070
90159-50010
90170-10208
