FJ60RV-MCQ (1982)
Toyota Land Cruiser

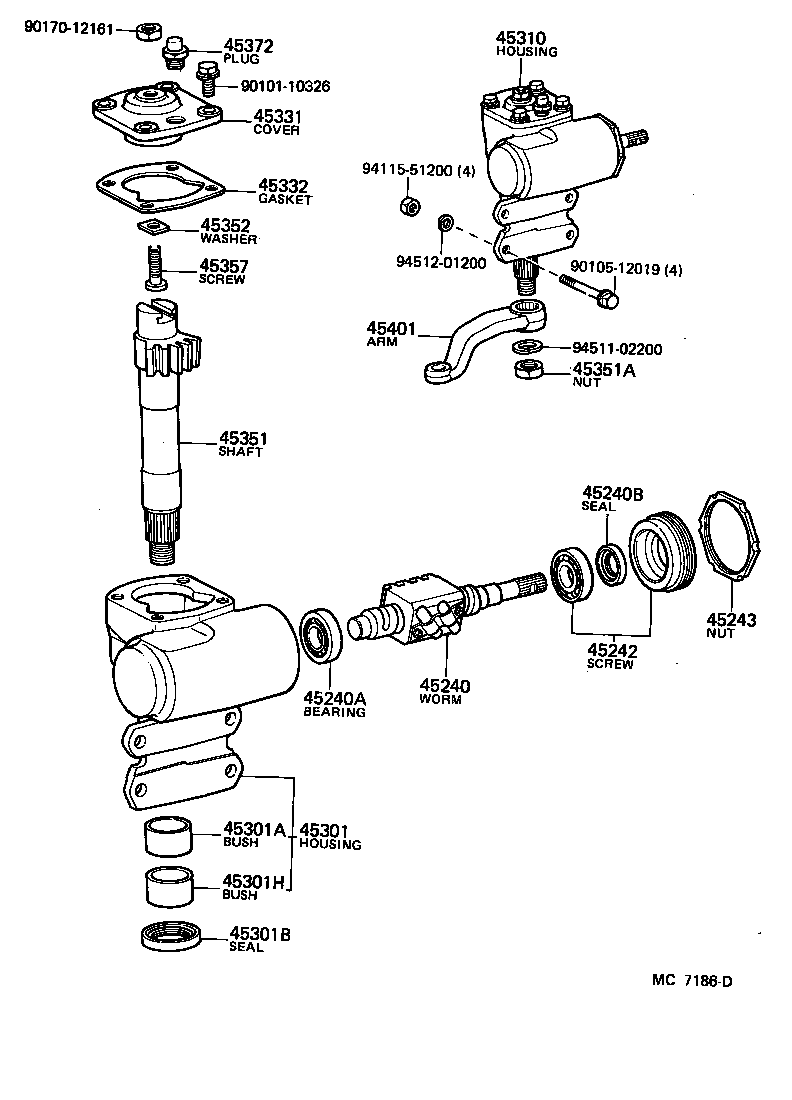

(8008-8411)BJ60,FJ60 ; (8008-8411)HJ60..ARL,GEN; (8008-8411)HJ60..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60010 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20015 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45305-60010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-60040 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73060 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36104 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73060 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-60050 |
BJ60,FJ60,HJ60..RHD..(ARL,GEN) |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-60020 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-37010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-60030 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-37010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR T=1.95,T=1.95 |
1 | ||
| 45353-37010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR T=2.00,T=2.00 |
1 | ||
| 45354-37010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR T=2.05,T=2.05 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
BJ60,FJ60;HJ60..ARL,GEN;HJ60..LHD..EUR |
1 | ||
| Common parts | ||||
| 90101-10326 | ||||
| 90105-12019 | ||||
| 90170-12161 | ||||
| 94115-51200 | ||||
| 94511-02200 | ||||
| 94512-01200 | ||||

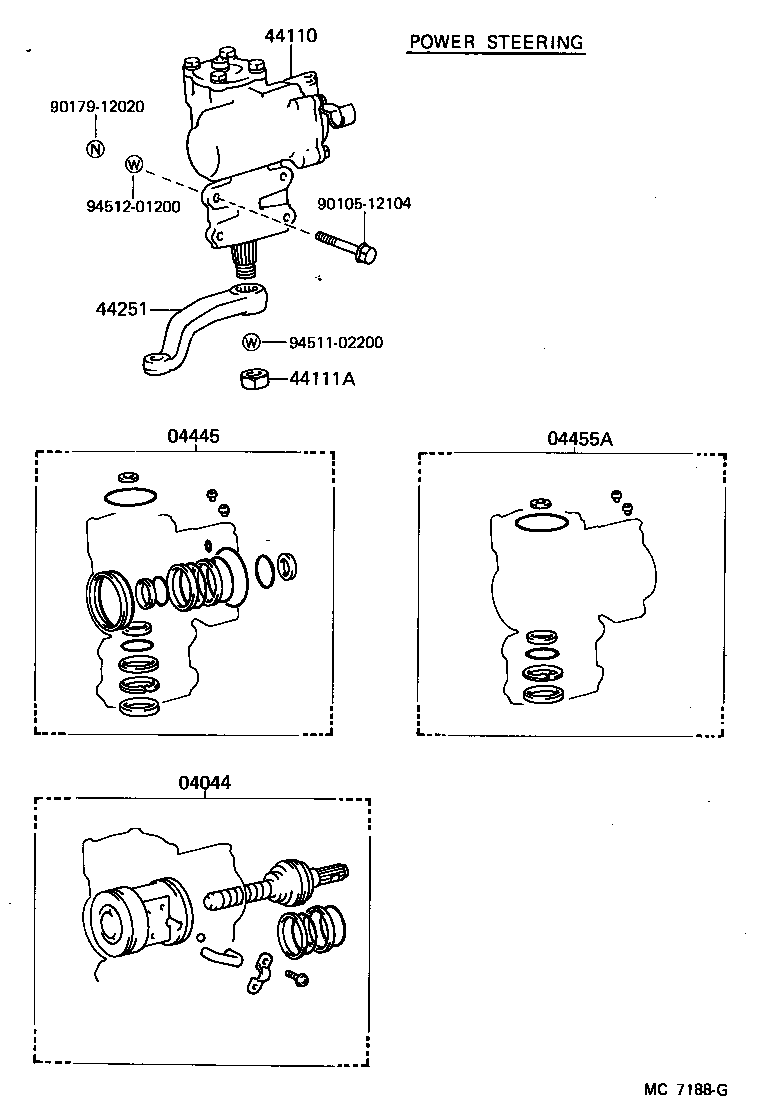

(8008-8411)FJ60,HJ60 ; (8401-8411)BJ60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-60040 |
BJ60,FJ60,HJ60..RHD |
1 | ||
| 04044-60030 |
FJ60,HJ60..RHD |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-60020 |
FJ60,HJ60 |
1 | ||
| 04445-60020 |
BJ60,FJ60,HJ60 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-60010 |
FJ60,HJ60 |
1 | ||
| 04455-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-60040 |
FJ60..RHD |
1 | ||
| 44110-60041 |
BJ60,FJ60,HJ60..RHD |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ60,FJ6#,HJ6# |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-60090 |
FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90105-12104 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94512-01200 | ||||

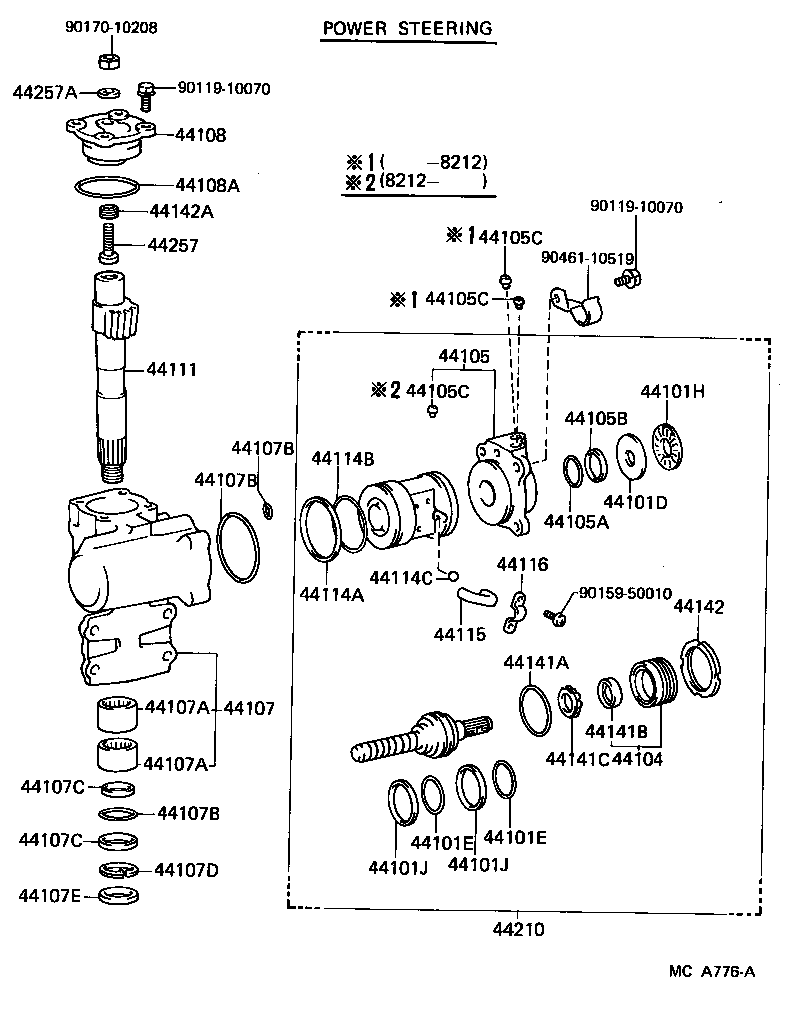

(8008-8411)FJ60,HJ60 ; (8401-8411)BJ60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
FJ60,HJ60 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ60,FJ60,HJ60 |
2 | ||
| 90301-44001 |
FJ60,HJ60 |
2 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90301-44001 |
BJ60,FJ60,HJ60 |
2 | ||
| 90301-44001 |
FJ60,HJ60 |
2 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
FJ60,HJ60 |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ60,FJ60,HJ60 |
2 | ||
| 90562-47001 |
FJ60,HJ60 |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-47002 |
BJ60,FJ60,HJ60 |
2 | ||
| 90562-47001 |
FJ60,HJ60 |
2 | ||
| 44104 - PLUG SUB-ASSY, ADJUSTER | ||||
| 44104-22011 |
FJ60,HJ60 |
1 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
FJ60,HJ60 |
1 | ||
| 44105-30060 |
FJ60,HJ60 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
FJ60,HJ60 |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
FJ60,HJ60 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
FJ60,HJ60 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
FJ60,HJ60 |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
FJ60,HJ60 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60030 |
BJ60,FJ60,HJ60..RHD |
1 | ||
| 44107-60030 |
FJ60,HJ60..RHD |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
FJ60,HJ60 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
FJ60,HJ60 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
FJ60,HJ60 ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
FJ60,HJ60 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ60,HJ60 OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
FJ60,HJ60 ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
FJ60,HJ60 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ60,HJ60 OD=13,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33002 |
FJ60,HJ60 ID=33.7,OD=40.7,OD=40.7,T=3.5 |
1 | ||
| 90301-65145 |
FJ60,HJ60 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96710-01010 |
FJ60,HJ60 OD=13,T=1.9 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
FJ60,HJ60 ID=31.7,OD=34.1,T=4,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
FJ60,HJ60 ID=32,OD=40,OD=40,T=3 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
FJ60,HJ60 ID=31.7,OD=34.1,T=4,OD=34.1,T=4 |
1 | ||
| 90562-32002 |
FJ60,HJ60 ID=32,OD=40,OD=40,T=3 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
FJ60,HJ60 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
FJ60,HJ60 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
FJ60,HJ60 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
FJ60,HJ60 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60020 |
FJ60,HJ60 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
FJ60,HJ60 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
FJ60,HJ60 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
FJ60,HJ60 |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60020 |
FJ60,HJ60..RHD |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60020 |
FJ60,HJ60..RHD |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
FJ60,HJ60 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
FJ60,HJ60 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
FJ60,HJ60 |
1 | ||
| 90369-22001 |
BJ60,FJ60,HJ60 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
FJ60,HJ60 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
FJ60,HJ60 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-60030 |
FJ60,HJ60..RHD |
1 | ||
| 44120-60031 |
BJ60,FJ60,HJ60..RHD |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
FJ60,HJ60 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||
| 90461-10519 | ||||
