FJ60RV-KCQ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

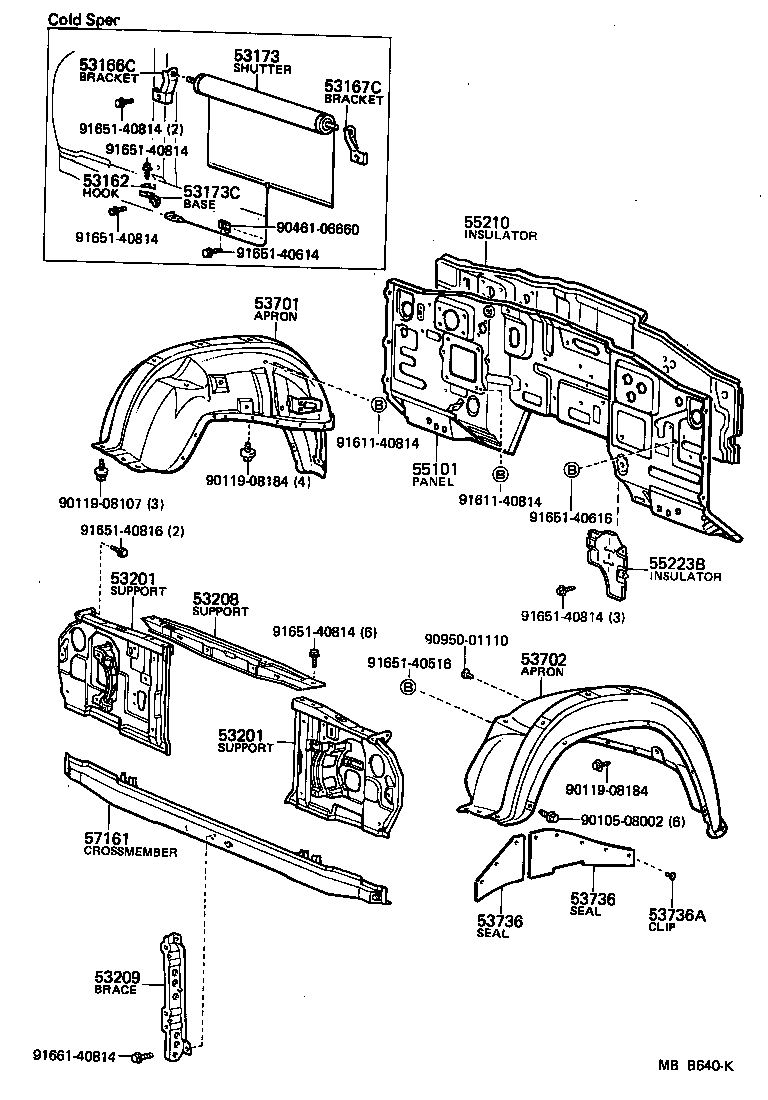

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53203-90A01 |
BJ60,FJ6#,HJ6# LH |
1 | ||
| 53202-90A01 |
BJ60,FJ6#,HJ6# RH |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53203-90A01 |
BJ60,FJ6#,HJ6# LH |
1 | ||
| 53202-90A01 |
BJ60,FJ6#,HJ6# RH |
1 | ||
| 53208 - SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER | ||||
| 53216-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53217-90A01 |
BJ60,FJ60,HJ60 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-90A47 |
FJ60..ARL,GEN OIL BATH OR CYCLON |
1 | ||
| 53701-90A47 |
FJ60..ARL,GEN OIL BATH OR CYCLON & WINCH |
1 | ||
| 53701-90A25 |
FJ60..ARL,GEN PAPER ELEMENT & W/O PS,WINCH |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-90A19 |
FJ6#..ARL |
1 | ||
| 53702-90A19 |
FJ60..RHD HONG KONG SPEC |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53738-90A00 |
BJ60,FJ6#,HJ6# FR |
2 | ||
| 53739-90A00 |
BJ60,FJ6#,HJ6# RR |
2 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53738-90A00 |
BJ60,FJ6#,HJ6# FR |
2 | ||
| 53739-90A00 |
BJ60,FJ6#,HJ6# RR |
2 | ||
| 53736A - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 90467-08011 |
BJ60,FJ6#,HJ6# |
16 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-90A02 |
FJ60..ARL |
1 | ||
| 55101-90A20 |
FJ60..ARL W/FR,RR HEATER |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-90A01 |
BJ60,FJ60,HJ60..RHD W/HEATER |
1 | ||
| 55210-90A01 |
BJ60,HJ60..RHD;FJ60..RHD..LUB;FJ60..SOB..ARL W/HEATER |
1 | ||
| 55223B - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55223-90A02 |
FJ6# |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-90A00 |
BJ60,FJ60,HJ60 |
1 | ||
| Common parts | ||||
| 90105-08002 | ||||
| 90119-08107 | ||||
| 90119-08184 | ||||
| 90461-06660 | ||||
| 90950-01110 | ||||
| 91611-40814 | ||||
| 91651-40516 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91661-40814 | ||||
(8008- )

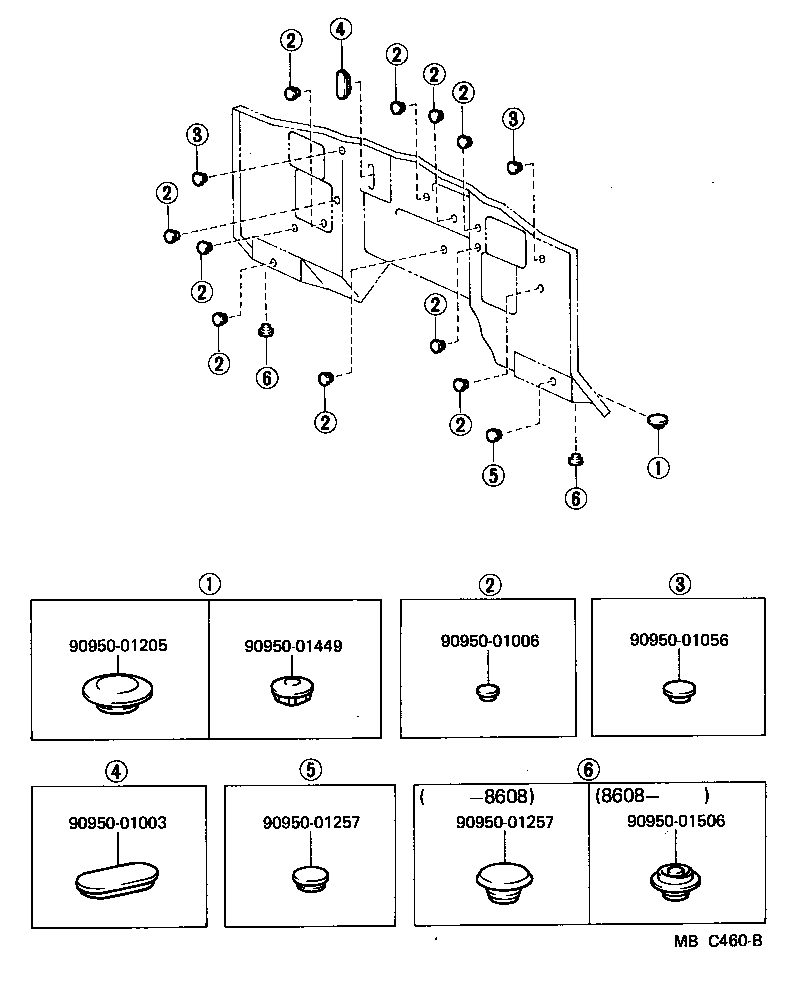

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01003 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01205 | ||||
| 90950-01257 | ||||
| 90950-01449 | ||||
| 90950-01506 | ||||
