FJ60RV-KCQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

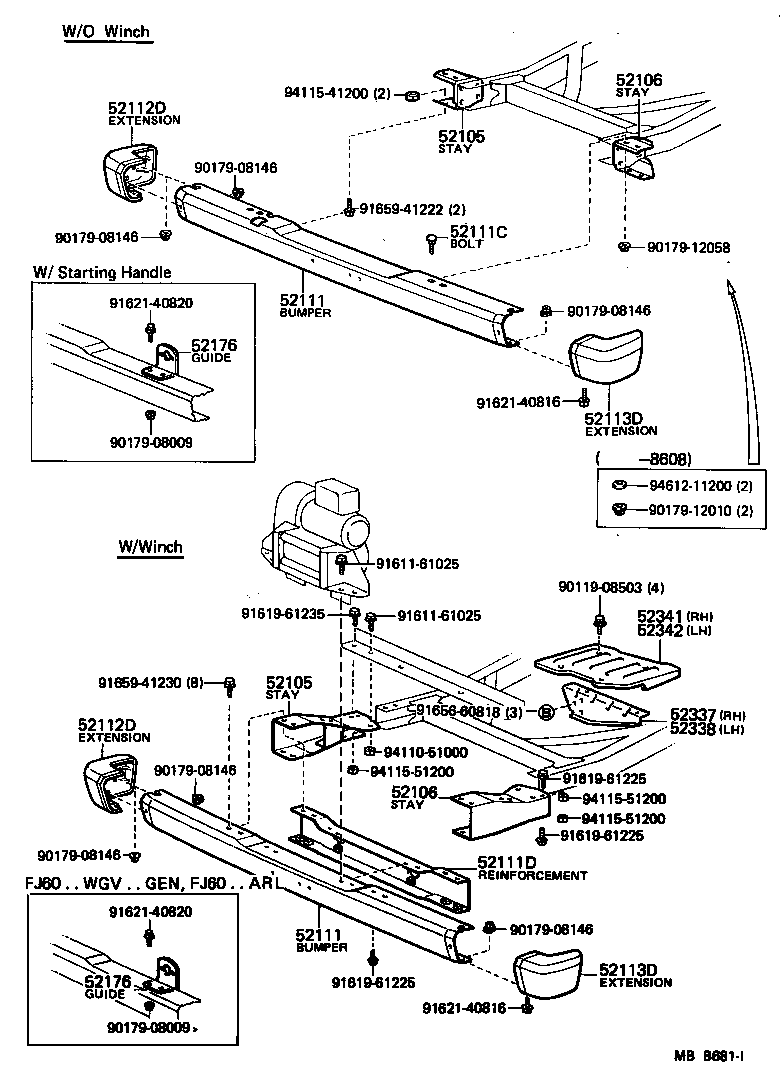

Click highlighted areas on diagram

diagram 52105 52105 52106 52106 52111 52111 52111C 52111D 52112D 52112D 52113D 52113D 52176 52176 52337 52338 52341 52342 9011908503 9017908009 9017908009 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9017912010 9017912058 9161161025 9161161025 9161961225 9161961225 9161961225 9161961235 9162140816 9162140816 9162140820 9162140820 9165660818 9165941222 9165941230 9411051000 9411541200 9411551200 9411551200 9411551200 9461211200
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52130-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52141-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52130-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52141-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52140-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52140-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52111 - BUMPER ASSY, FRONT
52111-60130

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52111-60110

BJ60,FJ60,HJ60

W/O WINCH

 1
52111 - BUMPER ASSY, FRONT
52111-60130

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52111-60110

BJ60,FJ60,HJ60

W/O WINCH

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-12041

BJ60,FJ6#,HJ6#

W/O WINCH

 4
52111D - REINFORCEMENT, FRONT BUMPER
52131-60020

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60010

BJ60,FJ6#,HJ6#

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60010

BJ60,FJ6#,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-60010

BJ60,FJ6#,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-60010

BJ60,FJ6#,HJ6#

 1
52176 - GUIDE, STARTING HANDLE
52171-69020

FJ60..ARL,GEN

 1
52176 - GUIDE, STARTING HANDLE
52171-69020

FJ60..ARL,GEN

 1
Common parts
90119-08503
90179-08009
90179-08146
90179-12010
90179-12058
91611-61025
91619-61225
91619-61235
91621-40816
91621-40820
91656-60818
91659-41222
91659-41230
94110-51000
94115-41200
94115-51200
94612-11200

(8102- )

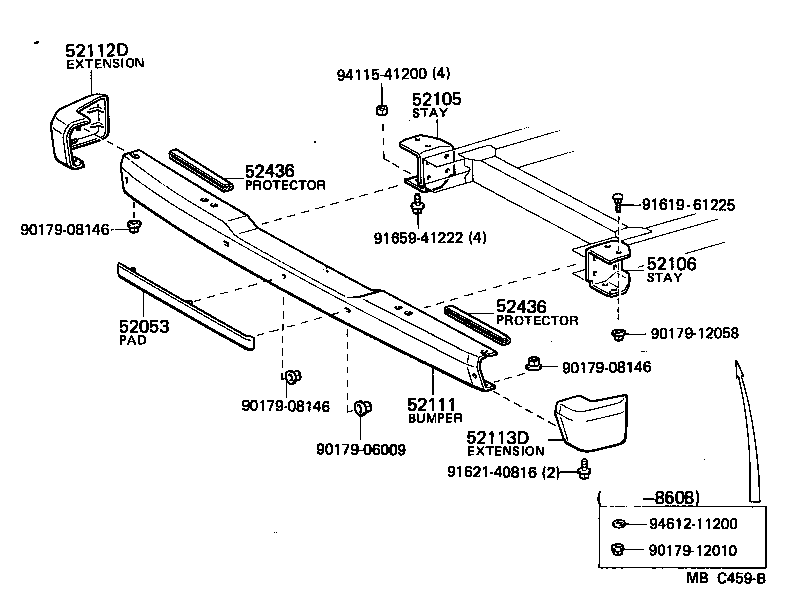

Click highlighted areas on diagram

*FRG

diagram 52053 52105 52106 52111 52112D 52113D 52436 52436 9017906009 9017908146 9017908146 9017908146 9017912010 9017912058 9161961225 9162140816 9165941222 9411541200 9461211200
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52130-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52141-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60030

BJ60,FJ6#,HJ6#

W/O WINCH

 1
52140-60010

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52111 - BUMPER ASSY, FRONT
52111-60130

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
52111-60110

BJ60,FJ60,HJ60

W/O WINCH

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60010

BJ60,FJ6#,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-60010

BJ60,FJ6#,HJ6#

 1
Common parts
90179-06009
90179-08146
90179-12010
90179-12058
91619-61225
91621-40816
91659-41222
94115-41200
94612-11200
