FJ60RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

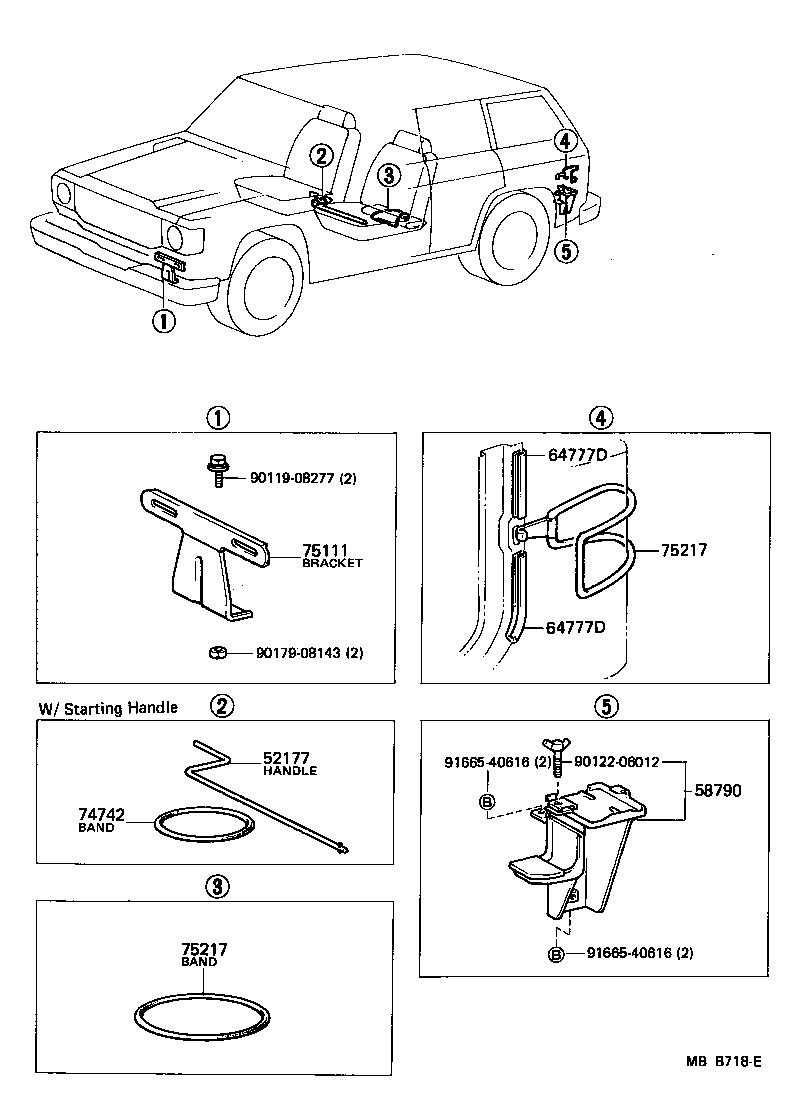

Click highlighted areas on diagram

diagram 52177 58790 64777D 64777D 74742 75111 75217 75217 9011908277 9012206012 9017908143 9166540616 9166540616
Part # Description Qty Price
52177 - HANDLE, STARTING OR SPARE WHEEL CARRIER
51049-60010

FJ60..ARL,GEN

 1
51049-60010

FJ60..4F..WGV

 1
74742 - BAND, STARTING HANDLE CLAMP
58798-90A00

FJ60..ARL,GEN

 1
58798-90A00

FJ60..WGV..GEN

 1
75111 - BRACKET, FRONT LICENSE PLATE
75101-60011

BJ60,FJ60,HJ60..ARL,GEN

W/WINCH

 1
75217 - BAND, TOOL BAG
58781-90A00

BJ60,FJ6#,HJ60

 1
75217 - BAND, TOOL BAG
58781-90A00

BJ60,FJ6#,HJ60

 1
Common parts
90119-08277
90122-06012
90179-08143
91665-40616
