FJ60RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

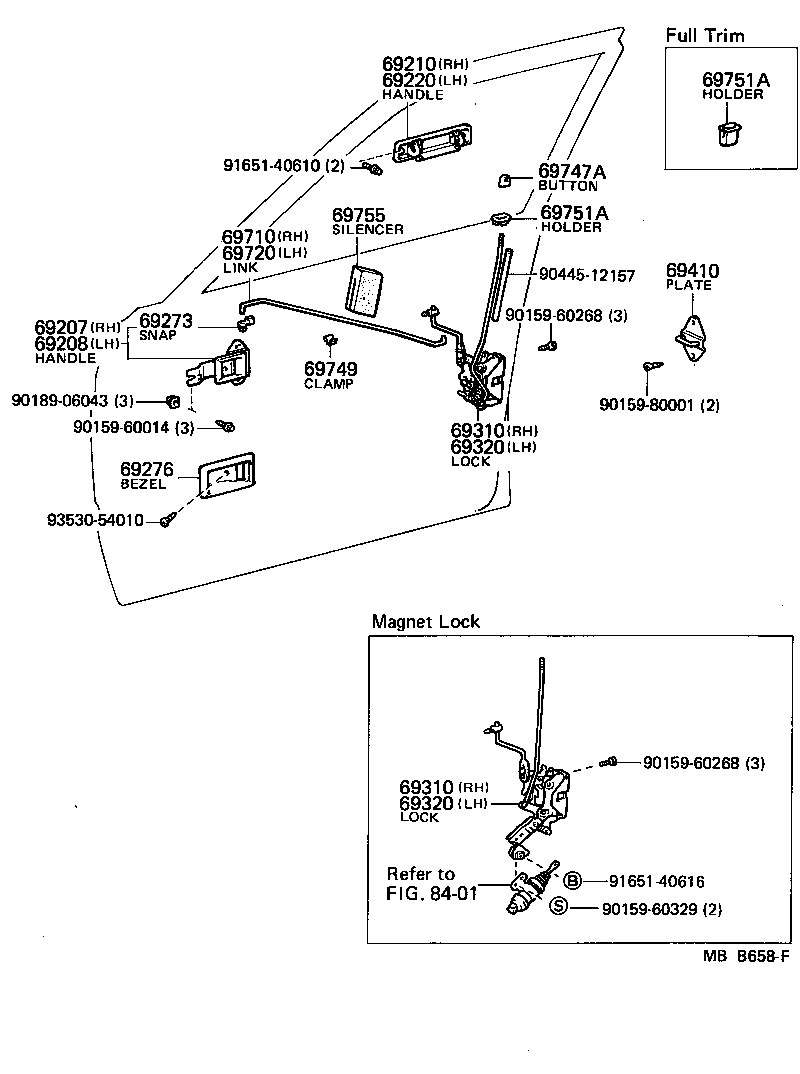

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69273 69276 69310 69310 69320 69320 69410 69710 69720 69747A 69749 69751A 69751A 69755 8401 9015960014 9015960268 9015960268 9015960329 9015980001 9018906043 9044512157 9165140610 9165140616 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20020

BJ60,FJ6#,HJ6#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20020

BJ60,FJ6#,HJ6#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-90A00

BJ60,FJ6#,HJ6#

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-90A00

BJ60,FJ6#,HJ6#

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69273-30020

BJ60,FJ6#,HJ6#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604006

BJ60,FJ60,HJ60

DARK BROWN,BROWN,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90A00

BJ60,FJ6#,HJ6#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90A00

BJ60,FJ6#,HJ6#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90A00

BJ60,FJ6#,HJ6#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90A00

BJ60,FJ6#,HJ6#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22030

BJ60,FJ6#,HJ6#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-90A00

BJ60,FJ6#,HJ6#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-90A00

BJ60,FJ6#,HJ6#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002016

BJ60,FJ60,HJ60

DARK BROWN,BROWN,TRIM4#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

BJ60,FJ6#,HJ6#

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-90A0006

BJ60,FJ60,HJ60..WGV

SEMI TRIM,D-BROWN,BROWN,TRIM4#

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-90A0006

BJ60,FJ60,HJ60..WGV

SEMI TRIM,D-BROWN,BROWN,TRIM4#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-30021

BJ60,FJ6#,HJ6#

 2
Common parts
90159-60014
90159-60268
90159-60329
90159-80001
90189-06043
90445-12157
91651-40610
91651-40616
93530-54010
Linked diagrams
8401
