FJ60RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

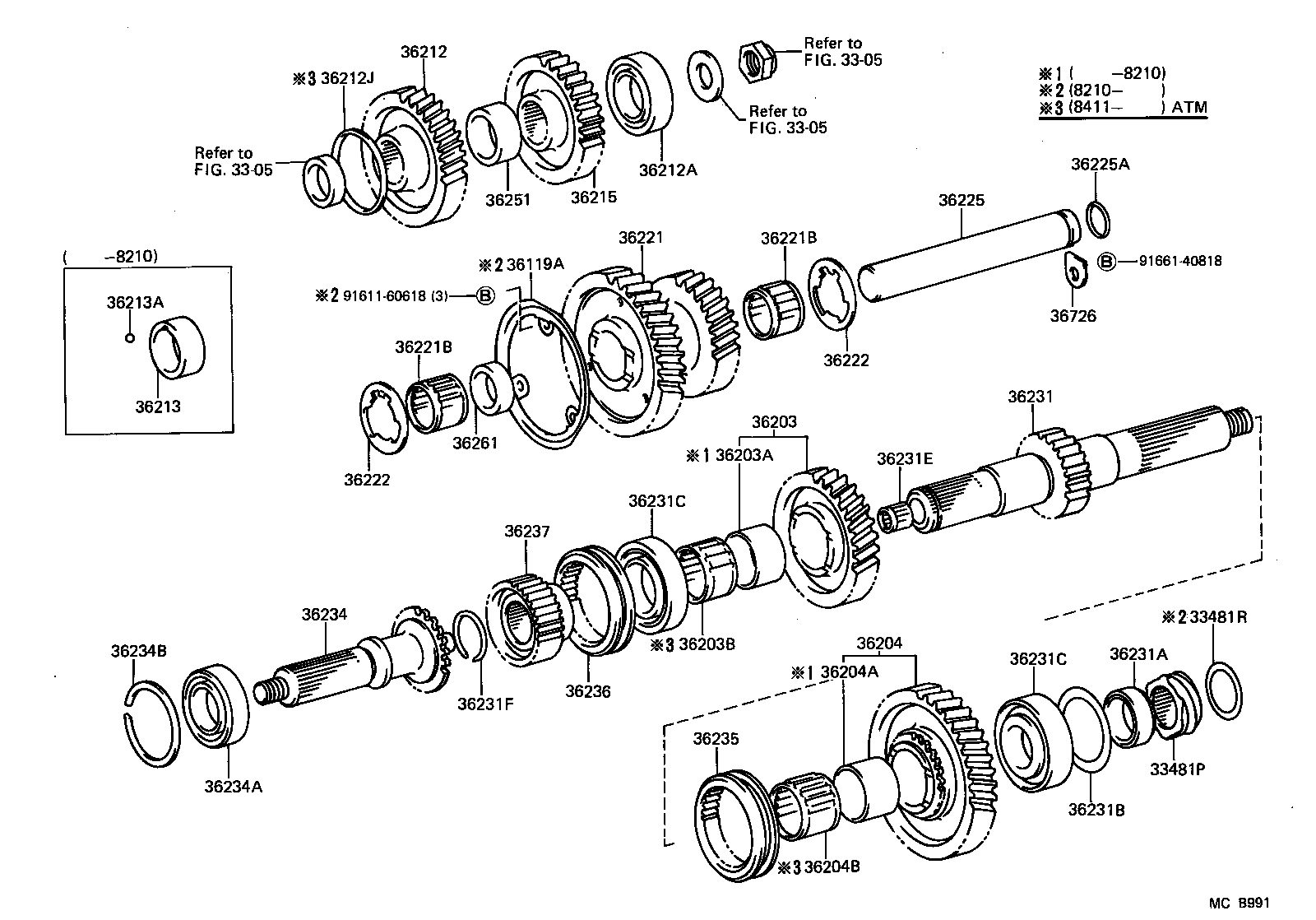

Click highlighted areas on diagram

diagram 3305 3305 3305 33481P 33481R 36119A 36203 36203A 36203B 36204 36204A 36204B 36212 36212A 36212J 36213 36213A 36215 36221 36221B 36221B 36222 36222 36225 36225A 36231 36231A 36231B 36231C 36231C 36231E 36231F 36234 36234A 36234B 36235 36236 36237 36251 36261 36726 9161160618 9166140818
Part # Description Qty Price
33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481-60060

BJ60,FJ60,HJ60

N=6,MARK 6:15-17,6X15-17

 1
33481-60070

FJ60,HJ60..GEN

N=7,MARK 7:16-17,7X16-17

 1
36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT
36203-60020

BJ60,FJ60,HJ60

 1
36203A - BUSH, SOLID (FOR TRANSFER HIGH SPEED OUTPUT GEAR)
90999-73089

BJ60,FJ60,HJ60

 1
36204 - GEAR SUB-ASSY, TRANSFER LOW SPEED OUTPUT
36204-60030

BJ60,FJ60,HJ60

 1
36204A - BUSH, SOLID (FOR TRANSFER LOW SPEED OUTPUT GEAR)
90999-73089

BJ60,FJ60,HJ60

 1
36212 - GEAR, TRANSFER INPUT
36212-60040

BJ60,FJ60,HJ60

 1
36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
90363-35013

BJ60,FJ6#,HJ6#

 1
36213 - STOPPER, TRANSFER INPUT GEAR
36213-60020

BJ60,FJ60,HJ60

 1
36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER)
90360-06004

BJ60,FJ60,HJ60

 1
36215 - GEAR, POWER TAKE-OFF DRIVE
36215-60030

BJ60,FJ6#,HJ6#

 1
36221 - GEAR, TRANSFER IDLER
36221-60040

BJ60,FJ60,HJ60

 1
36221B - BEARING (FOR TRANSFER IDLER GEAR)
90364-34006

BJ60,FJ6#,HJ60

 2
36221B - BEARING (FOR TRANSFER IDLER GEAR)
90364-34006

BJ60,FJ6#,HJ60

 2
36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST
36222-60010

BJ60,FJ6#,HJ60

 2
36222 - WASHER, TRANSFER IDLER GEAR SIDE THRUST
36222-60010

BJ60,FJ6#,HJ60

 2
36225 - SHAFT, TRANSFER IDLER GEAR
36225-60030

BJ60,FJ6#,HJ60

 1
36225A - RING, O (FOR TRANSFER IDLER SHAFT)
90301-27003

BJ60,FJ6#,HJ60

 1
36231 - SHAFT, TRANSFER OUTPUT, REAR
36231-60021

BJ60,FJ6#,HJ6#..MTM

 1
36231A - SPACER (FOR TRANSFER OUTPUT SHAFT)
90560-35005

BJ60,FJ60,HJ60

 1
36231B - SHIM (FOR TRANSFER OUTPUT SHAFT)
90564-70001

BJ60,FJ6#,HJ6#

T=0.15,T=0.15

 1
90564-70002

BJ60,FJ6#,HJ6#

T=0.40,T=0.4

 1
90564-70005

BJ60,FJ6#,HJ6#

T=0.70,T=0.7

 1
90564-70007

BJ60,FJ6#,HJ6#

T=0.90,T=0.9

 1
90564-70003

BJ60,FJ6#,HJ6#

T=0.50,T=0.5

 1
90564-70010

BJ60,FJ6#,HJ6#

T=1.20,T=1.2

 1
90564-70008

BJ60,FJ6#,HJ6#

T=1.00,T=1.0

 1
90564-70009

BJ60,FJ6#,HJ6#

T=1.10,T=1.1

 1
90564-70006

BJ60,FJ6#,HJ6#

T=0.80,T=0.8

 1
90564-70004

BJ60,FJ6#,HJ6#

T=0.60,T=0.6

 1
90564-70013

BJ60,FJ6#,HJ6#

T=1.50,T=1.5

 1
90564-70011

BJ60,FJ6#,HJ6#

T=1.30,T=1.3

 1
90564-70012

BJ60,FJ6#,HJ6#

T=1.40,T=1.4

 1
36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
90366-35011

BJ60,FJ6#,HJ6#

FR

 1
97600-30307

BJ60,FJ6#,HJ60..MTM

RR

 1
36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT)
90366-35011

BJ60,FJ6#,HJ6#

FR

 1
97600-30307

BJ60,FJ6#,HJ60..MTM

RR

 1
36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT
90364-17010

BJ60,FJ6#,HJ6#

 1
36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
90520-33110

BJ60,FJ6#,HJ6#

T=2.6-2.65,MARK 17,T=2.6

 1
90520-33107

BJ60,FJ6#,HJ6#

T=2.30-2.35,MARK 11,T=2.3

 1
36234 - SHAFT, TRANSFER OUTPUT, FRONT
36234-60031

BJ60,FJ6#,HJ6#

 1
36234A - BEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
90363-35013

BJ60,FJ6#,HJ6#

 1
36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
90521-75023

BJ60,FJ6#,HJ6#

T=1.6

 1
36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH
36235-60020

BJ60,FJ6#,HJ6#..MTM

 1
36236 - SLEEVE, FRONT DRIVE CLUTCH
36235-60020

BJ60,FJ6#,HJ6#

 1
36237 - HUB, TRANSFER CLUTCH
36237-60020

BJ60,FJ6#,HJ6#

 1
36251 - SPACER, TRANSFER INPUT SHAFT
36251-60030

BJ60,FJ6#,HJ60

 1
36261 - SPACER, TRANSFER IDLER GEAR
90560-34001

BJ60,FJ6#,HJ60

 1
36726 - PLATE, LOCK (FOR TRANSFER GEAR)
36726-60010

BJ60,FJ60,HJ60

 1
Common parts
91611-60618
91661-40818
Linked diagrams
3305
