FJ60RV-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

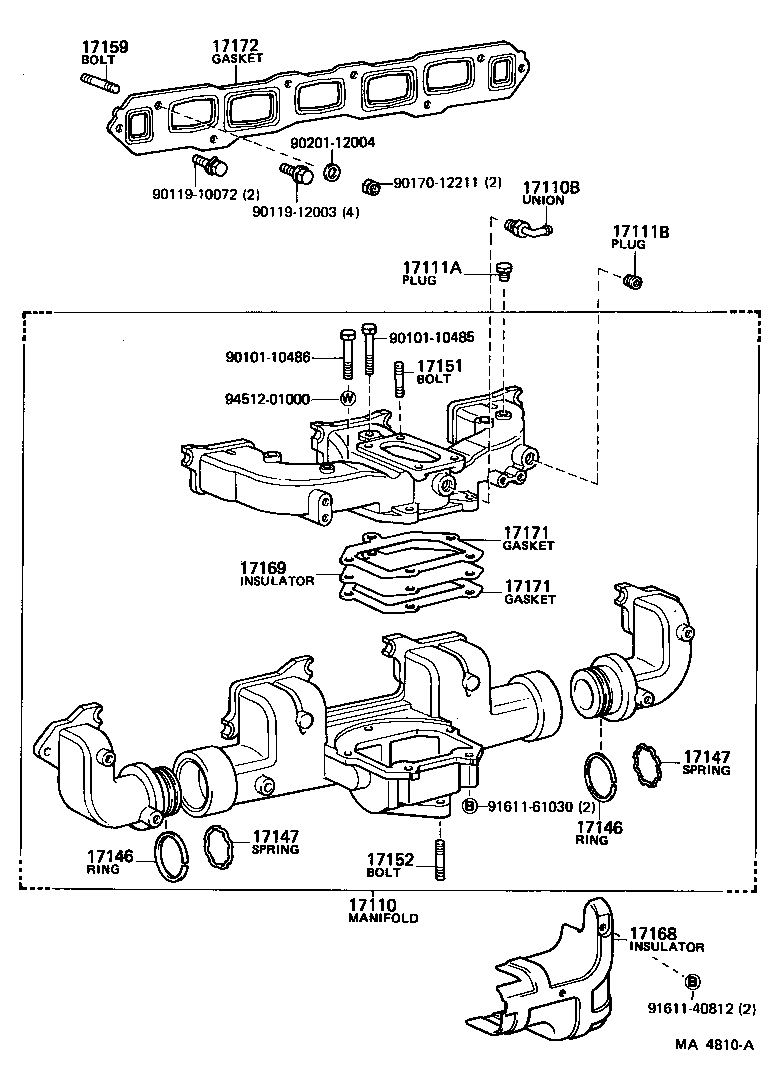

(8008-8411)2F..GEN

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17146 17146 17147 17147 17151 17152 17159 17168 17169 17171 17171 17172 9010110485 9010110486 9011910072 9011912003 9017012211 9020112004 9161140812 9161161030 9451201000
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-61052

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17100-61011

2F..FJ60..GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-53035

2F..FJ60

 1
17111A - PLUG, NO.1
90345-51025

2F..FJ60..GEN

 1
17111B - PLUG, NO.2
90344-53002

2F..FJ60

 1
90344-53011

2F..FJ60

 1
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08042

2F,3F..FJ6#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10096

2F..FJ60

 3
90116-10299

2F..FJ60

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-12321

2F..FJ60

 2
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61014

2F..FJ60

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-61011

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17169-61020

2F..FJ60..GEN

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61030

2F..FJ60

 1
Common parts
90101-10485
90101-10486
90119-10072
90119-12003
90170-12211
90201-12004
91611-40812
91611-61030
94512-01000

(8008-8209)2F

Click highlighted areas on diagram

diagram 17110 17110B 17111B 17146 17146 17147 17147 17151 17152 17159 17167 17168 17169 17171 17171 17172 17203 17231 17231B 9010106488 9010110485 9010110486 9011912003 9017012211 9020112004 9038913039 9038913039 9161140812 9161140812 9161161028 9161161030 9211240655 9451201000
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-61052

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17100-61011

2F..FJ60..GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-53035

2F..FJ60

 1
17111B - PLUG, NO.2
90344-53002

2F..FJ60

 1
90344-53011

2F..FJ60

 1
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08042

2F,3F..FJ6#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10096

2F..FJ60

 3
90116-10299

2F..FJ60

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-12321

2F..FJ60

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-61012

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61014

2F..FJ60

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-61011

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17169-61020

2F..FJ60..GEN

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61030

2F..FJ60

 1
17203 - SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL
17232-61013

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17231 - VALVE, MANIFOLD HEAT CONTROL
17231-61012

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17231B - COIL, HEAT CONTROL VALVE
90510-08001

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
Common parts
90101-06488
90101-10485
90101-10486
90119-12003
90170-12211
90201-12004
90389-13039
91611-40812
91611-61028
91611-61030
92112-40655
94512-01000

(8209-8411)2F

Click highlighted areas on diagram

diagram 17110 17110B 17111B 17141B 17141H 17146 17146 17147 17147 17151 17152 17159 17167 17168 17169 17171 17171 17172 17203 17203A 17231 17231B 9010106488 9010110485 9010110486 9011910072 9011912003 9017012211 9020110444 9020112004 9020113020 9038913008 9038913008 9161140812 9161140812 9161161030 9211240855 9451201000
Part # Description Qty Price
17110 - MANIFOLD ASSY
17100-61052

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17100-61011

2F..FJ60..GEN

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-53035

2F..FJ60

 1
17111B - PLUG, NO.2
90344-53002

2F..FJ60

 1
90344-53011

2F..FJ60

 1
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17146 - RING, EXHAUST MANIFOLD
17151-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17147 - SPRING, EXHAUST MANIFOLD
17152-61010

2F,3F..FJ6#

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08042

2F,3F..FJ6#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10096

2F..FJ60

 3
90116-10299

2F..FJ60

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-12321

2F..FJ60

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-61012

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-61014

2F..FJ60

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-61011

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17169-61020

2F..FJ60..GEN

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-61010

2F..FJ60

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-61030

2F..FJ60

 1
17203 - SHAFT SUB-ASSY, MANIFOLD HEAT CONTROL
17232-61013

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17231 - VALVE, MANIFOLD HEAT CONTROL
17231-61012

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
17231B - COIL, HEAT CONTROL VALVE
90510-08001

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
Common parts
90101-06488
90101-10485
90101-10486
90119-10072
90119-12003
90170-12211
90201-10444
90201-12004
90201-13020
90389-13008
91611-40812
91611-61030
92112-40855
94512-01000
