FJ60RG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

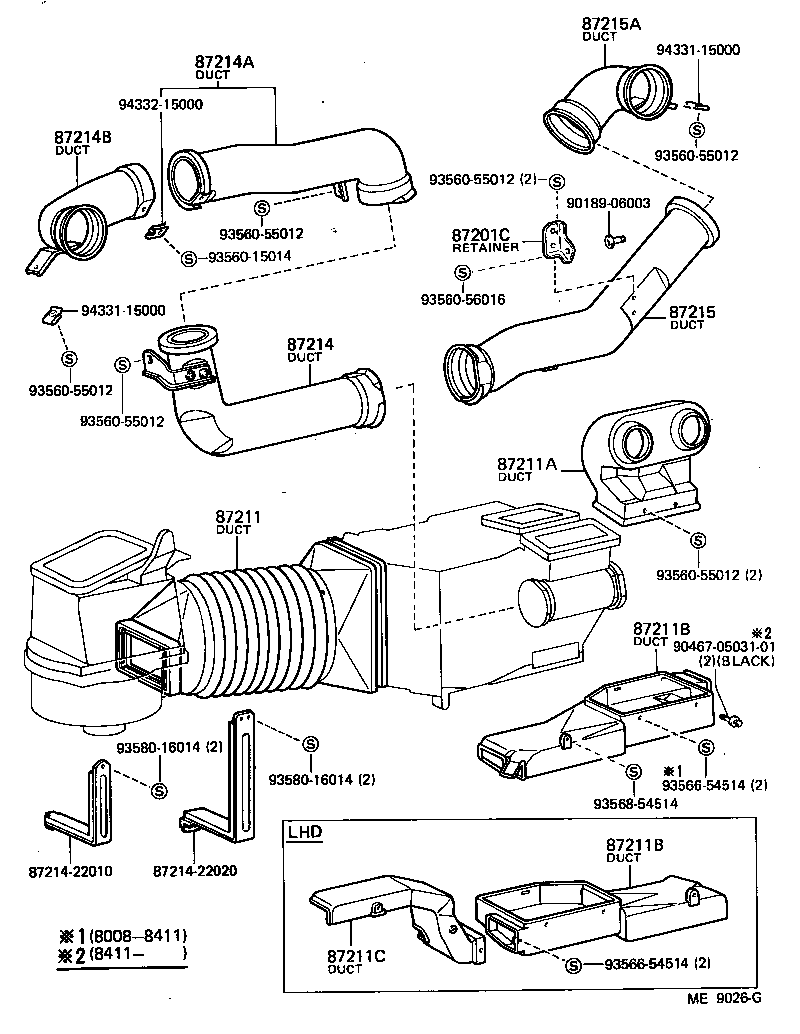

Click highlighted areas on diagram

diagram 87201C 87211 87211A 87211B 87211B 87211C 87214 8721422010 8721422020 87214A 87214B 87215 87215A 9018906003 904670503101 9356015014 9356055012 9356055012 9356055012 9356055012 9356055012 9356055012 9356056016 9356654514 9356654514 9356854514 9358016014 9358016014 9433115000 9433115000 9433215000
Part # Description Qty Price
87201C - RETAINER, AIR DUCT
55852-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87211 - DUCT, AIR, NO.1
87211-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87211A - DUCT, AIR, NO.2
55089-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87211B - DUCT, AIR, NO.3
87201-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87211B - DUCT, AIR, NO.3
87201-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55088-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55087-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55086-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55085-90A00

BJ60,FJ6#,HJ6#..RHD

 1
87215A - DUCT, AIR, SIDE NO.2 LH
55084-90A00

BJ60,FJ6#,HJ6#..RHD

 1
Common parts
87214-22010
87214-22020
90189-06003
90467-0503101
93560-15014
93560-55012
93560-56016
93566-54514
93568-54514
93580-16014
94331-15000
94332-15000

(8008- )

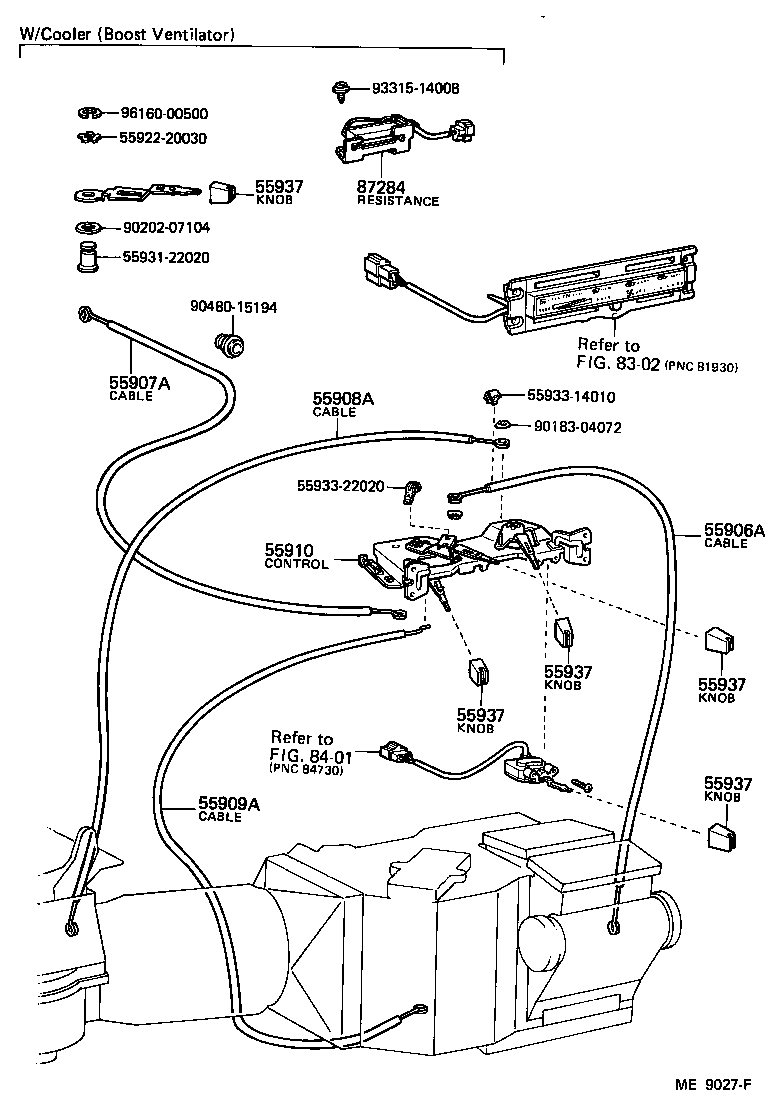

Click highlighted areas on diagram

diagram 55906A 55907A 55908A 55909A 55910 5592220030 5593122020 5593314010 5593322020 55937 55937 55937 55937 55937 8302 8401 87284 9018304072 9020207104 9048015194 9331514008 9616000500
Part # Description Qty Price
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55905-90A00

BJ60,FJ6#,HJ6#

L=350

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-90A00

BJ60,FJ6#,HJ6#..RHD

L=610,W/HEATER

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-90A00

BJ60,FJ6#,HJ6#

L=880

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55907-90A00

BJ60,FJ6#,HJ6#

L=650,W/HEATER

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55901-90A02

BJ60,FJ60,HJ60..RHD..GEN

W/BOOST VENTILATOR

 1
55901-90A00

BJ60,FJ6#,HJ6#..RHD

W/HEATER

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22050

BJ60,FJ6#,HJ6#..ARL,GEN,ME

 4
87284 - RESISTOR SUB-ASSY, VARIABLE
88622-90A00

BJ60,FJ60,HJ60..RHD..GEN

BOOST VENTILATOR,W/COOLER

 1
Common parts
55922-20030
55931-22020
55933-14010
55933-22020
90183-04072
90202-07104
90480-15194
93315-14008
96160-00500
Linked diagrams
8302
8401
