FJ60RG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

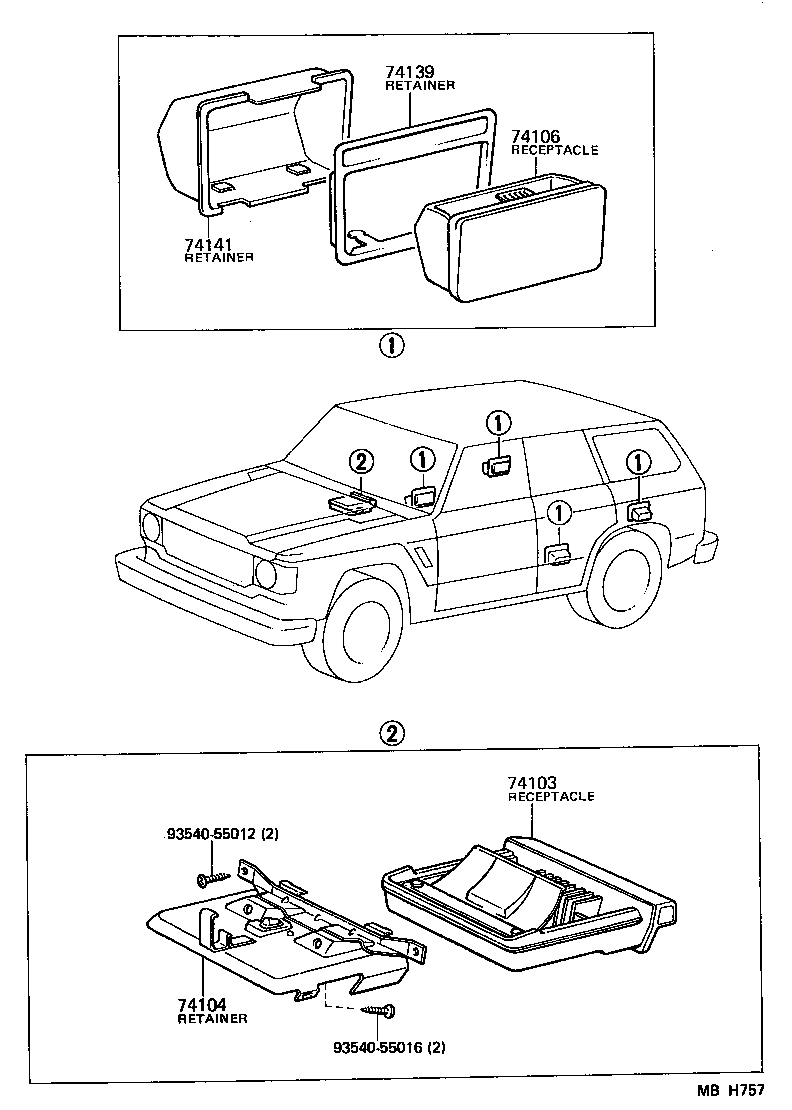

Click highlighted areas on diagram

diagram 74103 74104 74106 74139 74141 9354055012 9354055016
Part # Description Qty Price
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74102-90A0005

BJ60,FJ6#,HJ6#

BEIGE,BEIGE,TRIM4#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-90A00

BJ60,FJ6#,HJ6#

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74105-1001013

FJ60,HJ60..WGG

GRAY,GRAY,TRIM1#

 4
74105-1001026

BJ60,FJ60,HJ60

DARK BROWN,BROWN,TRIM4#

 4
74139 - RETAINER, REAR ASH RECEPTACLE, OUTER
74135-10030

BJ60,FJ60,HJ60

 4
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74137-10030

BJ60,FJ60,HJ60

 4
Common parts
93540-55012
93540-55016
