FJ60RG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ6#..RHD

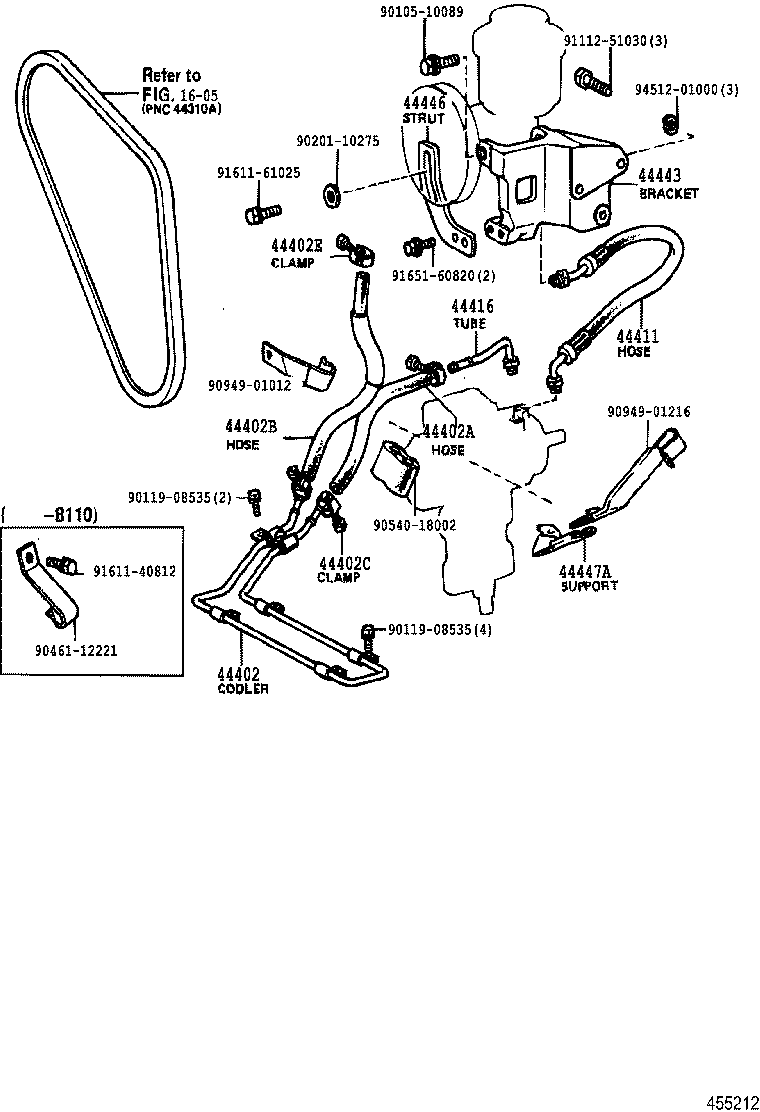

Click highlighted areas on diagram

diagram 1605 44402 44402A 44402B 44402C 44402E 44411 44416 44443 44446 44447A 9010510089 9011908535 9011908535 9020110275 9046112221 9054018002 9094901012 9094901216 9111251030 9161140812 9161161025 9165160820 9451201000
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44420-60060

FJ60..RHD

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18089

FJ60,HJ60..RHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18091

FJ60..RHD

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

FJ60,HJ60..RHD

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

FJ60,HJ60..RHD

 2
44411 - HOSE, PRESSURE FEED
44411-60111

FJ60..RHD

 1
44411-60110

FJ60..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60050

FJ60..RHD

 1
44416-60060

FJ60,HJ60

 1
44443 - BRACKET, PUMP
44443-60010

FJ60

 1
44446 - STRUT, ADJUSTING
44446-60010

FJ60

 1
Common parts
90105-10089
90119-08535
90201-10275
90461-12221
90540-18002
90949-01012
90949-01216
91112-51030
91611-40812
91611-61025
91651-60820
94512-01000
Linked diagrams
1605
