FJ60RG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

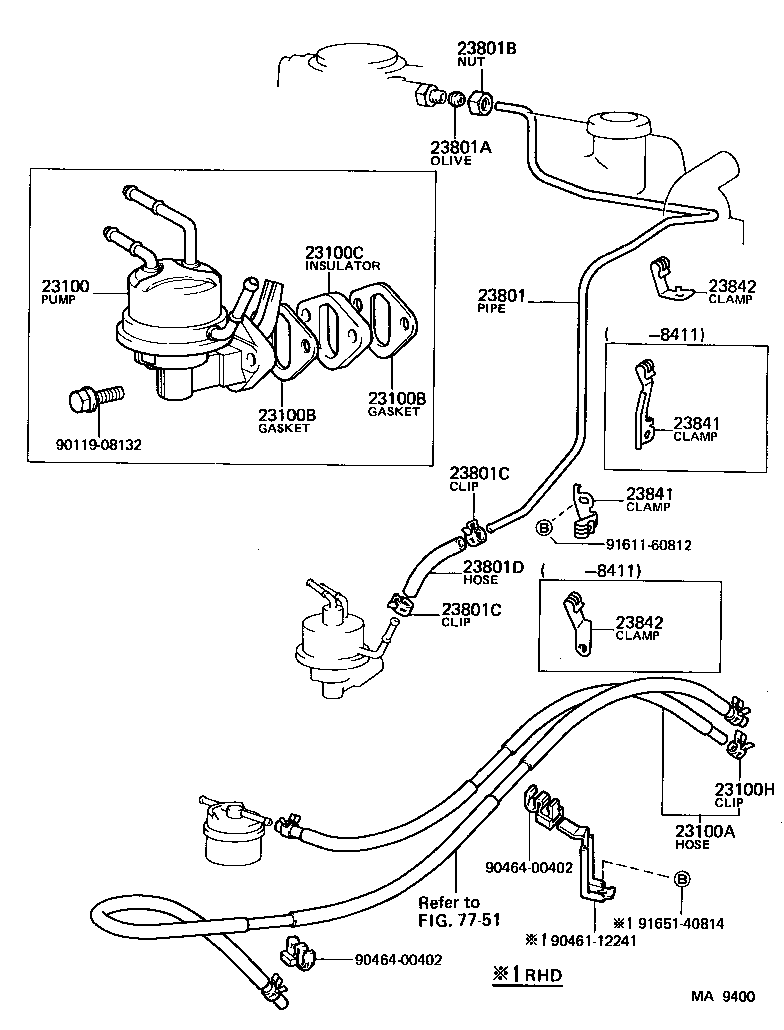

Click highlighted areas on diagram

diagram 23100 23100A 23100B 23100B 23100C 23100H 23801 23801A 23801B 23801C 23801C 23801D 23841 23841 23842 23842 7751 9011908132 9046112241 9046400402 9046400402 9161160812 9165140814
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-61060

2F..FJ60..ARL,GEN

 1
23100-61050

2F..FJ60

 1
23100A - HOSE, FUEL
23820-61041

2F,3F..FJ6#

 1
23100B - GASKET, FUEL PUMP
90923-05005

2F..FJ60

 2
23100B - GASKET, FUEL PUMP
90923-05005

2F..FJ60

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

2F..FJ60

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

2F,3F..FJ6#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-61032

2F..FJ60

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

2F,3F..FJ6#

 1
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

2F,3F..FJ6#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F,3F..FJ6#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F,3F..FJ6#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-08020

2F,3F..FJ6#

*H,L=130,ID=7.6

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-61021

2F..FJ60

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-61021

2F..FJ60

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-61031

2F..FJ60

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-61031

2F..FJ60

 1
Common parts
90119-08132
90461-12241
90464-00402
91611-60812
91651-40814
Linked diagrams
7751
