FJ60RG-K (1980)

Toyota Land Cruiser

Production Aug 1980 - Nov 1984
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

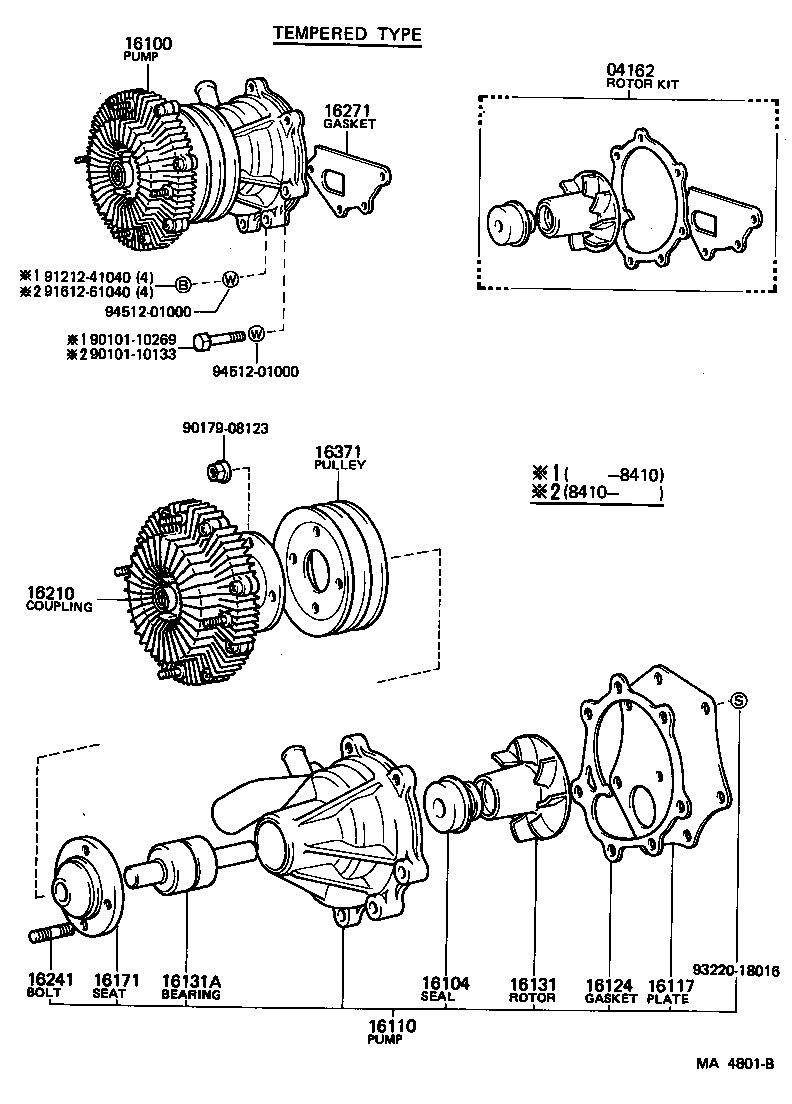

Click highlighted areas on diagram

diagram 04162 16100 16104 16110 16117 16124 16131 16131A 16171 16210 16241 16271 16371 9010110133 9010110269 9017908123 9121241040 9161261040 9322018016 9451201000 9451201000
Part # Description Qty Price
04162 - ROTOR KIT, WATER PUMP
04162-61020

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
16100 - PUMP ASSY, ENGINE WATER
16100-61071

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
16100-61120

2F..FJ60..WGG..GEN

TEMPERED TYPE

 1
16100-61130

2F..FJ60..WGG..GEN

TEMPERED,W/OIL COOLER

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2F..FJ60

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61071

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
16110-61081

2F..FJ60..WGG..GEN

TEMPERED TYPE,W/OIL COOLER

 1
16117 - PLATE, WATER PUMP
16117-61012

2F..FJ60

 1
16124 - GASKET, WATER PUMP COVER
16124-61012

2F..FJ60

 1
16131 - ROTOR, WATER PUMP
16131-61071

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
16131A - BEARING, WATER PUMP
90369-35007

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
16171 - SEAT, WATER PUMP PULLEY
16171-61071

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
16210 - COUPLING ASSY, FLUID
16210-61120

2F..FJ60..WGG..GEN

 1
16210-61071

2F..FJ60..RHD..GEN

HONG KONG SPEC

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-41050

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 4
16271 - GASKET, WATER PUMP
16271-60011

2F..FJ60

 1
16371 - PULLEY, FAN
16173-61070

2F..FJ60..WGG;2F..FJ60..SOB..(ARL,EUR)

TEMPERED TYPE

 1
Common parts
90101-10133
90101-10269
90179-08123
91212-41040
91612-61040
93220-18016
94512-01000
