FJ60LV-KZ (1982)

Toyota Land Cruiser

Production Oct 1982 - May 1983
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8510)LHD

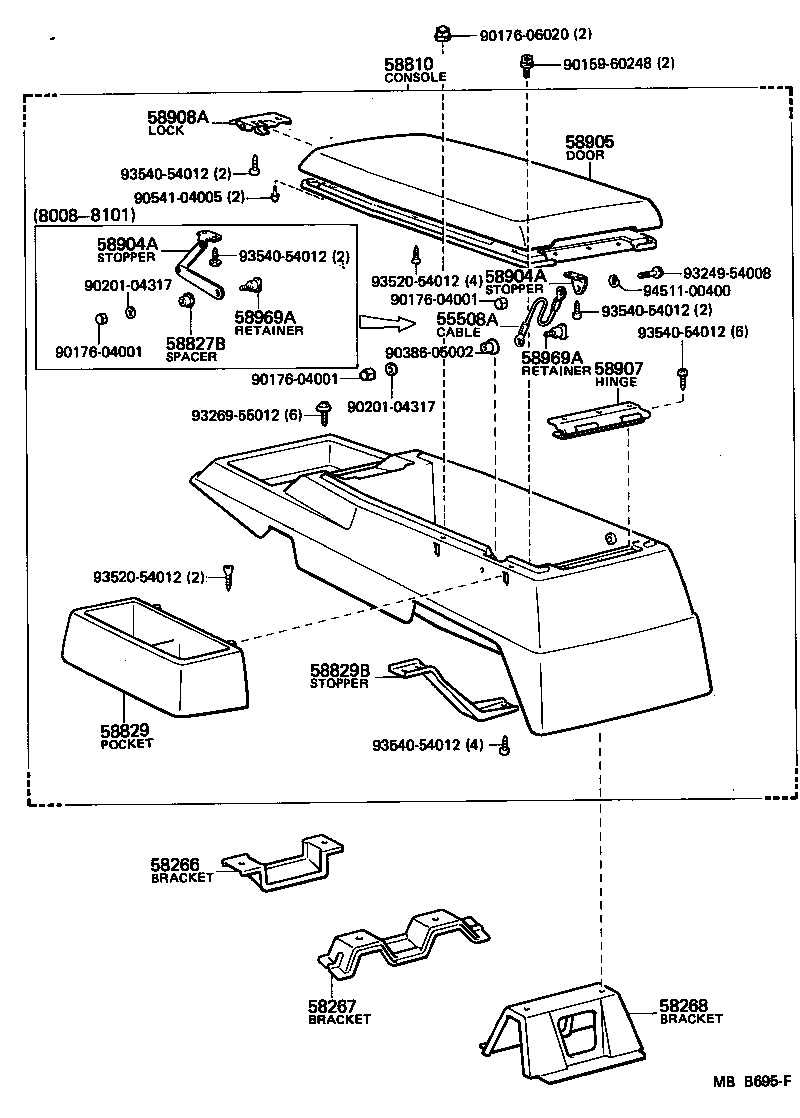

Click highlighted areas on diagram

diagram 55508A 58266 58267 58268 58810 58827B 58829 58829B 58904A 58904A 58905 58907 58908A 58969A 58969A 9015960248 9017604001 9017604001 9017604001 9017606020 9020104317 9020104317 9038605002 9054104005 9324954008 9326955012 9352054012 9352054012 9354054012 9354054012 9354054012 9354054012 9354054012 9451100400
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-90A00

BJ60,FJ60,HJ60..EUR,GEN

 1
58267 - BRACKET, CONSOLE BOX SUPPORT, CENTER
58996-90A00

BJ60,FJ60,HJ60..EUR,GEN

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58997-90A00

BJ60,FJ60,HJ60..EUR,GEN

 1
58810 - CONSOLE ASSY
58810-90A0106

BJ60,FJ60,HJ60..LHD

DARK BROWN,BROWN,TRIM4#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

BJ60,FJ60,HJ60..EUR,GEN

 1
58829 - POCKET, CONSOLE BOX
58825-90A0006

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

DARK BROWN,BROWN,TRIM4#

 1
58829B - STOPPER, CONSOLE BOX POCKET
58829-90A00

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909-90A00

BJ60,FJ60,HJ60..EUR,GEN

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58909-90A00

BJ60,FJ60,HJ60..EUR,GEN

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-90A0006

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

DARK BROWN,BROWN,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-90A00

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58803-20010

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

HJ60..SOB..EUR;BJ60,FJ60..EUR,GEN;HJ60..LUB..(EUR,GEN)

 1
Common parts
90159-60248
90176-04001
90176-06020
90201-04317
90386-05002
90541-04005
93249-54008
93269-55012
93520-54012
93540-54012
94511-00400
