FJ60LV-KZ (1982)
Toyota Land Cruiser
Production
Oct 1982
-
May 1983
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8411)

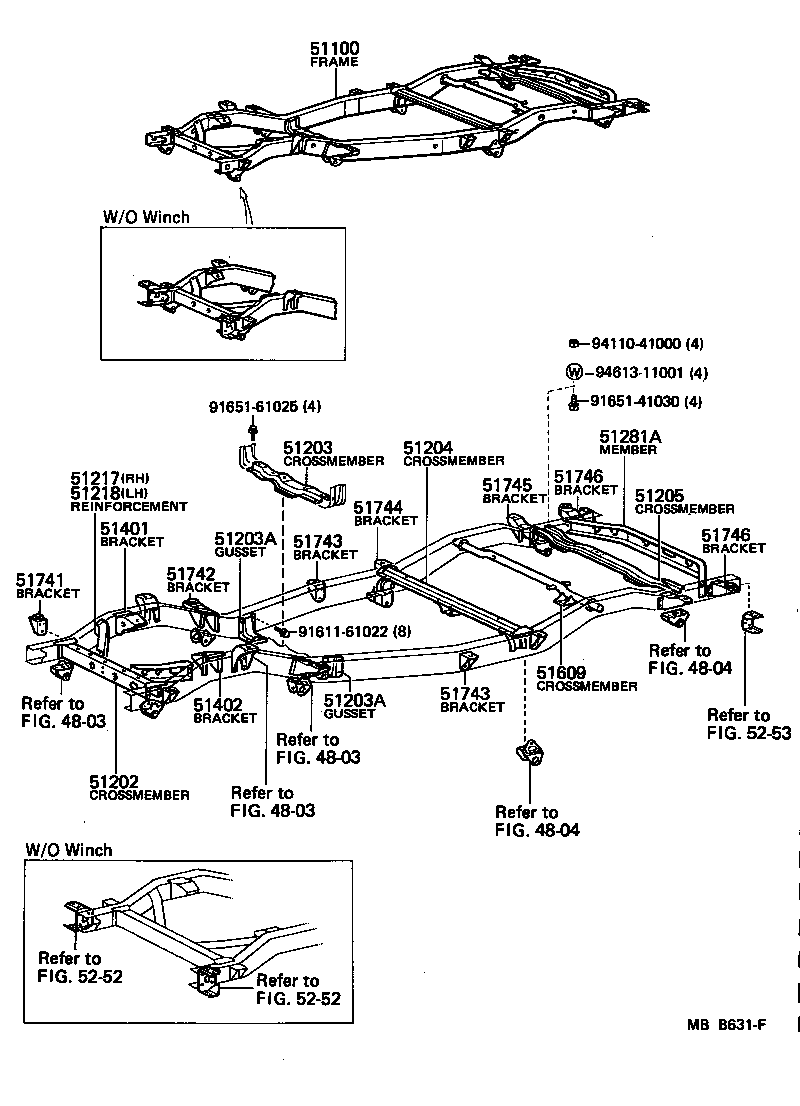

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-60580 |
FJ60..LHD W/O WINCH |
1 | ||
| 51001-60640 |
FJ60..LHD W/WINCH |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-60080 |
BJ60,FJ6#,HJ6# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60070 |
BJ60,FJ60,HJ60 |
1 | ||
| 51203A - GUSSET SUB-ASSY, CROSSMEMBER, NO.2 | ||||
| 51041-60010 |
FJ60,HJ60 RH |
1 | ||
| 51042-60010 |
FJ60,HJ60 LH |
1 | ||
| 51203A - GUSSET SUB-ASSY, CROSSMEMBER, NO.2 | ||||
| 51041-60010 |
FJ60,HJ60 RH |
1 | ||
| 51042-60010 |
FJ60,HJ60 LH |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-60100 |
BJ60,FJ60,HJ60 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-60010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 51217 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 51217-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 51218 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 51218-60010 |
BJ60,FJ60,HJ60 |
1 | ||
| 51281A - MEMBER, REAR DIAGONAL | ||||
| 51281-60060 |
BJ60,FJ60,HJ60 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60040 |
FJ60 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60040 |
FJ60 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51204-60050 |
BJ60,FJ60,HJ60 |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51701-60050 |
BJ60,FJ60,HJ60 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51704-60010 |
BJ60,FJ6#,HJ6# LH |
1 | ||
| 51703-60020 |
BJ60,FJ6#,HJ6# RH |
1 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51705-60060 |
BJ60,FJ60,HJ60 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51705-60060 |
BJ60,FJ60,HJ60 |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51705-60060 |
BJ60,FJ60,HJ60 |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51737-60020 |
BJ60,FJ60,HJ60 |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51709-60020 |
BJ60,FJ6#,HJ6# |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51709-60020 |
BJ60,FJ6#,HJ6# |
2 | ||
| Common parts | ||||
| 91611-61022 | ||||
| 91651-41030 | ||||
| 91651-61025 | ||||
| 94110-41000 | ||||
| 94613-11001 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
| 5252 | ||||
| 5253 | ||||
