FJ60LV-KZ (1982)
Toyota Land Cruiser

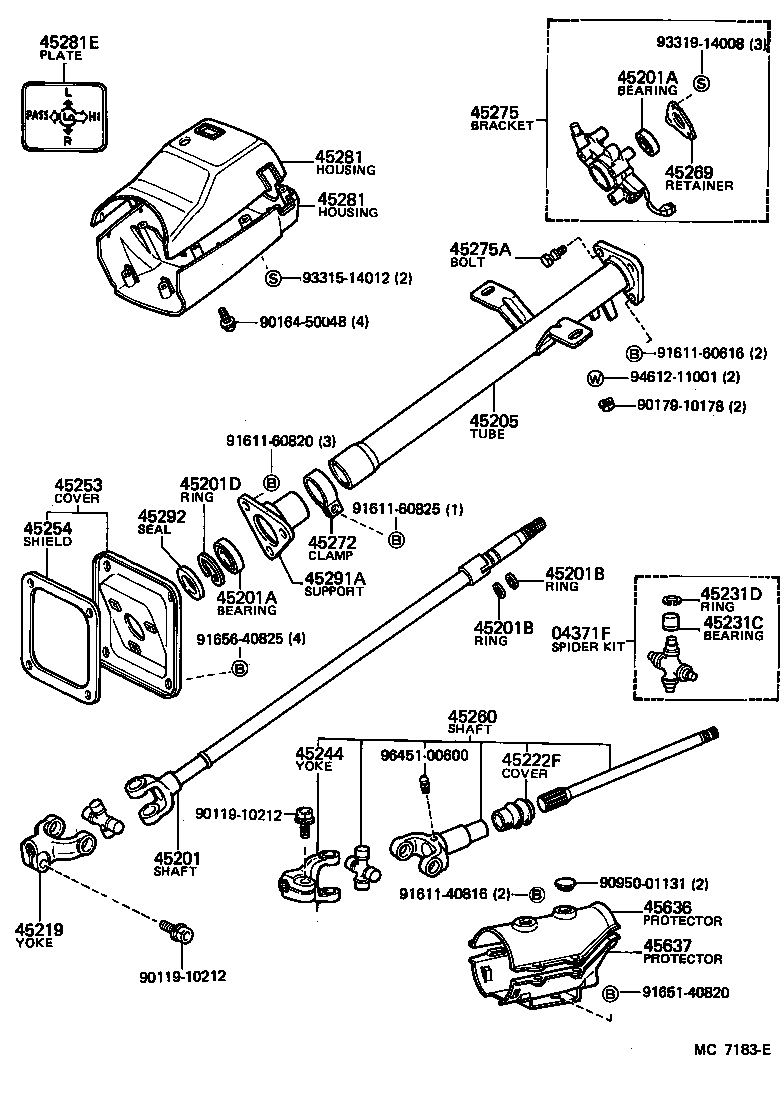

(8008-8510)FJ62,HJ60..SOB ; (8008-8510)BJ60,FJ60..GEN,ME ; (8008-8510)FJ60..SOB..AR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60080 |
FJ60..GEN;FJ60..SOB..(ARL,EUR) |
1 | ||
| 45210-22050 |
BJ60,FJ6#,HJ6# W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
BJ60,FJ6#,HJ6# CTR,W/TILT STEERING |
1 | ||
| 90363-30007 |
BJ60,FJ6#,HJ6# LWR |
1 | ||
| 90363-18001 |
BJ60,FJ6#,HJ6# UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) UPR,W/RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
BJ60,FJ6#,HJ6# CTR,W/TILT STEERING |
1 | ||
| 90363-30007 |
BJ60,FJ6#,HJ6# LWR |
1 | ||
| 90363-18001 |
BJ60,FJ6#,HJ6# UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) UPR,W/RIGID STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,UPR |
1 | ||
| 90520-17042 |
BJ60,FJ6#,HJ6# T=1.20,W/TILT STRG |
1 | ||
| 90520-17042 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,UPR |
1 | ||
| 90520-17042 |
BJ60,FJ6#,HJ6# T=1.20,W/TILT STRG |
1 | ||
| 90520-17042 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,LWR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60080 |
BJ60,FJ60,HJ60..ARL,GEN W/TILT STEERING |
1 | ||
| 45205-60070 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) W/RIGID STEERING |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45244-60020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60020 |
BJ60,FJ6#,HJ60 |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
BJ60,FJ6#,HJ6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
BJ60,FJ6#,HJ6# T=1.20 |
8 | ||
| 90521-22012 |
BJ60,FJ6#,HJ6# T=1.25 |
8 | ||
| 90521-22013 |
BJ60,FJ6#,HJ6# T=1.30 |
8 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
BJ60,FJ6#,HJ60 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-60010 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60031 |
BJ60,FJ6#,HJ60..LHD |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22200 |
BJ60,FJ60,HJ60..LHD W/*TIS |
1 | ||
| 45280-30181 |
FJ60..LHD..GEN;FJ60..SOB..EUR |
1 | ||
| 45280-60120 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN W/STEERING LOCK |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-12030 |
BJ60,FJ60,HJ60 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-60090 |
BJ60,FJ60,HJ60..LHD LWR,W/*TIS |
1 | ||
| 45287-60080 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN LWR |
1 | ||
| 45286-60110 |
FJ60..LHD..GEN;FJ60..SOB..EUR UPR |
1 | ||
| 45286-60130 |
BJ60,FJ60,HJ60..LHD UPR,W/*TIS |
1 | ||
| 45286-6011003 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 45286-6011006 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-60090 |
BJ60,FJ60,HJ60..LHD LWR,W/*TIS |
1 | ||
| 45287-60080 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN LWR |
1 | ||
| 45286-60110 |
FJ60..LHD..GEN;FJ60..SOB..EUR UPR |
1 | ||
| 45286-60130 |
BJ60,FJ60,HJ60..LHD UPR,W/*TIS |
1 | ||
| 45286-6011003 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 45286-6011006 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
BJ60,FJ6#,HJ60..LHD |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60020 |
BJ60,FJ60,HJ60..LHD |
1 | ||
| 45636-60040 |
FJ60,HJ60..LHD W/POWER STEERING |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60030 |
BJ60,FJ60,HJ60..LHD |
1 | ||
| 45637-60040 |
FJ60,HJ60..LHD W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90119-10212 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90950-01131 | ||||
| 91611-40816 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40820 | ||||
| 91656-40825 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94612-11001 | ||||
| 96451-00600 | ||||
(8008-8510)ARL,GEN ; (8103-8510)RHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
BJ60,FJ6#,HJ6# |
2 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
BJ60,FJ6#,HJ6# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
BJ60,FJ6#,HJ6# L=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60080 |
FJ60..GEN;FJ60..SOB..(ARL,EUR) |
1 | ||
| 45210-22050 |
BJ60,FJ6#,HJ6# W/TILT STRG |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
BJ60,FJ6#,HJ6# CTR,W/TILT STEERING |
1 | ||
| 90363-30007 |
BJ60,FJ6#,HJ6# LWR |
1 | ||
| 90363-18001 |
BJ60,FJ6#,HJ6# UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) UPR,W/RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
BJ60,FJ6#,HJ6# CTR,W/TILT STEERING |
1 | ||
| 90363-30007 |
BJ60,FJ6#,HJ6# LWR |
1 | ||
| 90363-18001 |
BJ60,FJ6#,HJ6# UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) UPR,W/RIGID STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
BJ60,FJ6#,HJ6# CTR,W/TILT STEERING |
1 | ||
| 90363-30007 |
BJ60,FJ6#,HJ6# LWR |
1 | ||
| 90363-18001 |
BJ60,FJ6#,HJ6# UPR,W/TILT STEERING |
1 | ||
| 90363-18038 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) UPR,W/RIGID STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,UPR |
1 | ||
| 90520-17042 |
BJ60,FJ6#,HJ6# T=1.20,W/TILT STRG |
1 | ||
| 90520-17042 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) T=1.20,LWR |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-60080 |
BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-60080 |
BJ60,FJ60,HJ60..ARL,GEN W/TILT STEERING |
1 | ||
| 45205-60070 |
HJ60..SOB;BJ60,FJ60..GEN;HJ60..LUB..GEN;FJ60..SOB..(ARL,EUR) W/RIGID STEERING |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45244-60020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60020 |
BJ60,FJ6#,HJ60 |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
BJ60,FJ6#,HJ6# |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
BJ60,FJ6#,HJ6# T=1.20 |
8 | ||
| 90521-22012 |
BJ60,FJ6#,HJ6# T=1.25 |
8 | ||
| 90521-22013 |
BJ60,FJ6#,HJ6# T=1.30 |
8 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
BJ60,FJ6#,HJ60 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-60010 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60030 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60031 |
BJ60,FJ6#,HJ60..LHD |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-22200 |
BJ60,FJ60,HJ60..LHD W/*TIS |
1 | ||
| 45280-30181 |
FJ60..LHD..GEN;FJ60..SOB..EUR |
1 | ||
| 45280-60120 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN W/STEERING LOCK |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-12030 |
BJ60,FJ60,HJ60 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-60090 |
BJ60,FJ60,HJ60..LHD LWR,W/*TIS |
1 | ||
| 45287-60080 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN LWR |
1 | ||
| 45286-60110 |
FJ60..LHD..GEN;FJ60..SOB..EUR UPR |
1 | ||
| 45286-60130 |
BJ60,FJ60,HJ60..LHD UPR,W/*TIS |
1 | ||
| 45286-6011003 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 45286-6011006 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-60090 |
BJ60,FJ60,HJ60..LHD LWR,W/*TIS |
1 | ||
| 45287-60080 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN LWR |
1 | ||
| 45286-60110 |
FJ60..LHD..GEN;FJ60..SOB..EUR UPR |
1 | ||
| 45286-60130 |
BJ60,FJ60,HJ60..LHD UPR,W/*TIS |
1 | ||
| 45286-6011003 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,SHADOW GRAY,GRAY,TRIM1# |
1 | ||
| 45286-6011006 |
HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN UPR,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22020 |
BJ60,FJ6#,HJ60..LHD |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
FJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60020 |
BJ60,FJ60,HJ60..LHD |
1 | ||
| 45636-60040 |
FJ60,HJ60..LHD W/POWER STEERING |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60030 |
BJ60,FJ60,HJ60..LHD |
1 | ||
| 45637-60040 |
FJ60,HJ60..LHD W/POWER STEERING |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-60030 |
BJ60,FJ60,HJ60..ARL,GEN W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22010 |
BJ60,FJ6#,HJ6# OD=17.996-18.003,D=17.996-18.003 |
1 | ||
| 45813-22020 |
BJ60,FJ6#,HJ6# OD=18.003-18.010,D=18.003-18.010 |
1 | ||
| 45813-22040 |
BJ60,FJ6#,HJ6# OD=18.017-18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
BJ60,FJ6#,HJ6# OD=18.010-18.017,D=18.010-18.017 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22020 |
BJ60,FJ6#,HJ6# OD=18.000-18.018,D=18.000-18.018 |
1 | ||
| 45814-22010 |
BJ60,FJ6#,HJ6# OD=17.982-18.000,D=17.982-18.000 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22100 |
BJ60,FJ6#,HJ6# T=1.8,T=1.8 |
2 | ||
| 45815-22080 |
BJ60,FJ6#,HJ6# T=0.8,T=0.8 |
2 | ||
| 45815-22060 |
BJ60,FJ6#,HJ6# T=0.2,T=0.2 |
2 | ||
| 45815-22070 |
BJ60,FJ6#,HJ6# T=0.5,T=0.5 |
2 | ||
| 45815-22090 |
BJ60,FJ6#,HJ6# T=1.4,T=1.4 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
BJ60,FJ6#,HJ6# |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
BJ60,FJ6#,HJ6# |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-10212 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90950-01031 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91651-40820 | ||||
| 91655-60620 | ||||
| 91656-40825 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
