FJ60LV-KZ (1982)

Toyota Land Cruiser

Production Oct 1982 - May 1983
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F..WGV..GEN

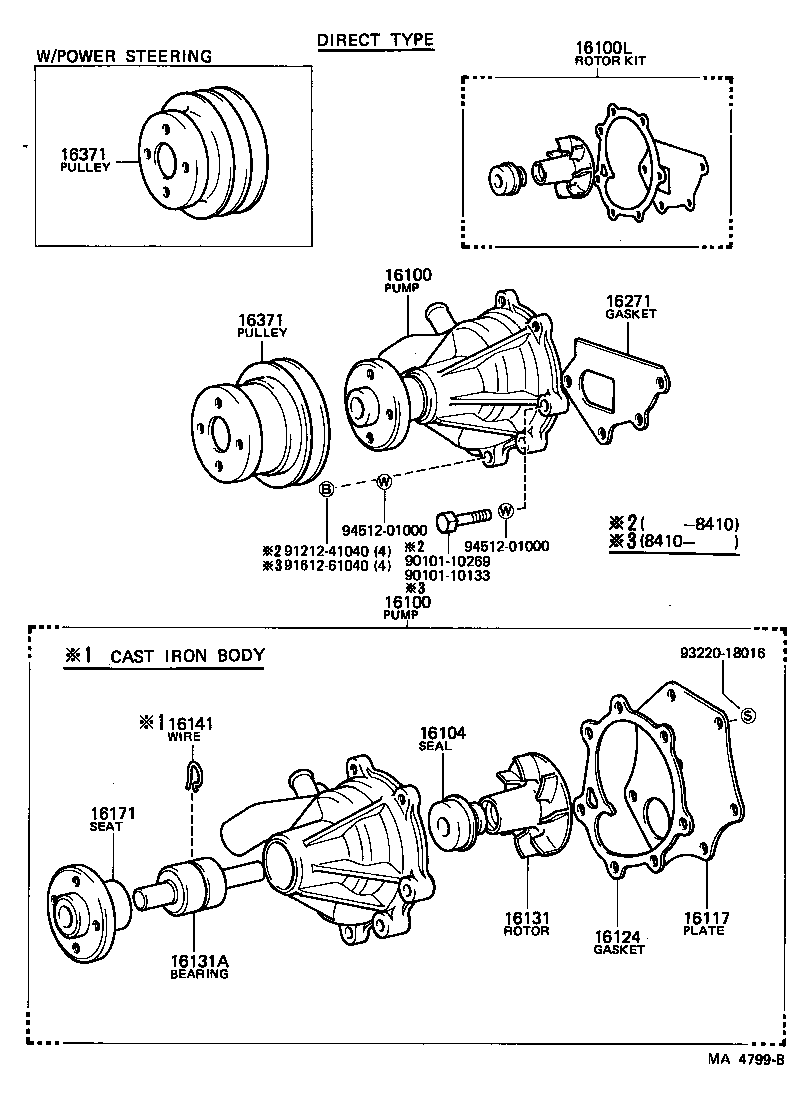

Click highlighted areas on diagram

diagram 16100 16100 16100 16104 16117 16124 16131 16131A 16141 16171 16271 16371 16371 9010110133 9010110269 9121241040 9161261040 9322018016 9451201000 9451201000
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-61012

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16100-61041

2F..FJ60..WGV..GEN

DIRECT TYPE,W/OIL COOLER

 1
16100 - PUMP ASSY, ENGINE WATER
16100-61012

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16100-61041

2F..FJ60..WGV..GEN

DIRECT TYPE,W/OIL COOLER

 1
16100 - PUMP ASSY, ENGINE WATER
16100-61012

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16100-61041

2F..FJ60..WGV..GEN

DIRECT TYPE,W/OIL COOLER

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2F..FJ60

 1
16117 - PLATE, WATER PUMP
16117-61012

2F..FJ60

 1
16124 - GASKET, WATER PUMP COVER
16124-61012

2F..FJ60

 1
16131 - ROTOR, WATER PUMP
16131-61011

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16131A - BEARING, WATER PUMP
90369-30035

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16171 - SEAT, WATER PUMP PULLEY
16171-56010

2F,3F..FJ6#..WGV..GEN

 1
16271 - GASKET, WATER PUMP
16271-60011

2F..FJ60

 1
16371 - PULLEY, FAN
16371-61010

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16371-60090

2F..FJ60..WGV..GEN

DIRECT,W/POWER STEERING

 1
16371 - PULLEY, FAN
16371-61010

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16371-60090

2F..FJ60..WGV..GEN

DIRECT,W/POWER STEERING

 1
Common parts
90101-10133
90101-10269
91212-41040
91612-61040
93220-18016
94512-01000

(8008-8411)2F

Click highlighted areas on diagram

diagram 04162 16100 16104 16110 16117 16124 16131 16131A 16171 16210 16241 16271 16371 9010110133 9010110269 9017908123 9121241040 9161261040 9322018016 9451201000 9451201000
Part # Description Qty Price
04162 - ROTOR KIT, WATER PUMP
04162-61011

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16100 - PUMP ASSY, ENGINE WATER
16100-61012

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16100-61041

2F..FJ60..WGV..GEN

DIRECT TYPE,W/OIL COOLER

 1
16104 - SEAL SET, WATER PUMP
16104-41111

2F..FJ60

 1
16117 - PLATE, WATER PUMP
16117-61012

2F..FJ60

 1
16124 - GASKET, WATER PUMP COVER
16124-61012

2F..FJ60

 1
16131 - ROTOR, WATER PUMP
16131-61011

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16131A - BEARING, WATER PUMP
90369-30035

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16171 - SEAT, WATER PUMP PULLEY
16171-56010

2F,3F..FJ6#..WGV..GEN

 1
16271 - GASKET, WATER PUMP
16271-60011

2F..FJ60

 1
16371 - PULLEY, FAN
16371-61010

2F..FJ60..WGV..GEN

DIRECT TYPE

 1
16371-60090

2F..FJ60..WGV..GEN

DIRECT,W/POWER STEERING

 1
Common parts
90101-10133
90101-10269
90179-08123
91212-41040
91612-61040
93220-18016
94512-01000
